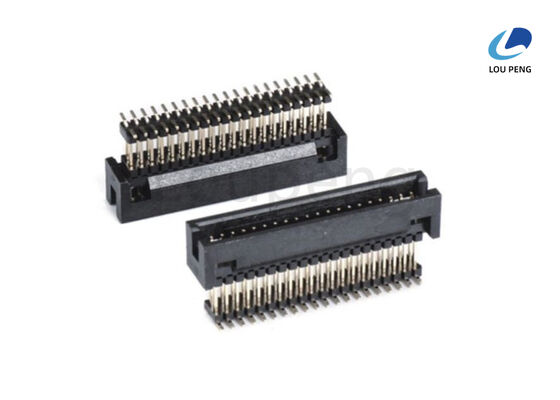

Contact Resistance 20M Ohms Max IDC Socket BOX Header Number of Positions 2 To 40 Termination Method Insulation Displacement Contact

Product Description:

The IDC Socket / BOX Header is a versatile and reliable component designed for a wide range of electronic applications. Known for its precision and robust construction, this product serves as an essential part in establishing secure and efficient electrical connections. The Insulation Displacement Connector Socket, commonly referred to as the IDC Connector Socket Header, offers a seamless connection method that eliminates the need for stripping wires, thus saving valuable assembly time and reducing the risk of wiring errors.

One of the key features of this IDC Socket / BOX Header is its availability in multiple pitch options, catering to different design requirements. The product is offered in pitches of 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, providing flexibility for various circuit board layouts and component densities. This range of pitch sizes ensures compatibility with numerous connectors and cables in the market, making it a highly adaptable choice for engineers and designers.

Complying with stringent industry standards, the IDC Connector Socket Header is RoHS compliant, ensuring that it meets environmental and safety regulations by restricting the use of hazardous substances. Additionally, it is UL Recognized, which guarantees that the product has passed rigorous testing for safety and performance, providing users with confidence in its reliability and durability in different operating environments.

The contact plating of the Insulation Displacement Connector Socket is available in either gold or tin plating. Gold plating is preferred for applications requiring superior corrosion resistance and excellent conductivity, ensuring a stable and low-resistance connection over time. Tin plating, on the other hand, provides a cost-effective alternative while maintaining reliable electrical performance. Both plating options contribute to the longevity and efficiency of the connector, preventing oxidation and ensuring consistent signal transmission.

Mounting type options for the IDC Socket / BOX Header include Through Hole and Surface Mount configurations. Through Hole mounting provides a strong mechanical bond to the printed circuit board (PCB), making it suitable for applications subjected to mechanical stress or vibration. Surface Mount technology (SMT), alternatively, offers a compact and streamlined assembly process, ideal for high-density PCB designs where space saving is critical. These mounting variations enhance the versatility of the connector, allowing it to be integrated into a wide range of electronic assemblies with ease.

With a current rating of 1.0 Amp, this Insulation Displacement Connector Socket is well-suited for low to medium power applications. It ensures reliable electrical performance without overheating or degradation, making it suitable for communications equipment, industrial controls, consumer electronics, and automotive systems. The current rating aligns with typical usage scenarios where moderate power levels are required, ensuring safety and efficiency.

In summary, the IDC Socket / BOX Header is a high-quality Insulation Displacement Connector Socket designed to meet diverse application needs. Its multiple pitch options, compliance with RoHS and UL standards, choice of gold or tin contact plating, and flexible mounting types make it an indispensable component for modern electronic designs. The IDC Connector Socket Header’s ease of use, reliability, and robust electrical characteristics make it a preferred choice among engineers seeking dependable connector solutions for their projects.

Features:

• Product Name: IDC Socket / BOX Header
• Current Rating: 3A Per Contact
• Insulator Material: High Temperature Thermoplastic
• Termination Method: Insulation Displacement Contact (IDC)
• Color: Black (standard)
• Designed for use as an IDC Box Header Connector
• Compatible with IDC Ribbon Cable Socket applications
• Reliable and durable IDC Box Header Connector for various electronic assemblies

Technical Parameters:

This Insulation Displacement Connector Socket, also known as the Box Header IDC Connector, offers reliable electrical performance and versatility for various applications.

Applications:

The LP-BX019 IDC Socket / BOX Header by LP is an essential component designed for a variety of electronic applications requiring reliable and efficient connections. As an Insulation Displacement Contact Socket, it offers a secure and durable connection method that eliminates the need for soldering, making it ideal for rapid assembly and maintenance processes. This product is manufactured in China under ISO-9001:2000 certification, ensuring high quality and consistent performance.

The IDC Ribbon Cable Socket is widely used in telecommunications, computer hardware, and consumer electronics where ribbon cables connect multiple circuits in a compact and organized manner. Its insulation displacement contact termination method allows for quick and reliable wire insertion, which is particularly beneficial in mass production environments where speed and accuracy are critical. The LP-BX019 model supports both through-hole and surface mount mounting types, providing versatility in PCB design and assembly.

In industrial automation and control systems, the IDC Box Header Connector serves as a robust interface for signal and power transmission. Its high temperature thermoplastic insulator material ensures excellent thermal stability and durability, suitable for harsh operating conditions. With a current rating of 1.0 Amp and dielectric withstanding voltage of AC 500V, this connector guarantees safe and stable electrical performance.

The product is available in multiple packaging options including Reel, Tube, Tray, and Polybag, accommodating various manufacturing and handling preferences. With a supply ability of 100,000 PCS and a minimum order quantity of 1,000 PCS, LP ensures timely delivery within 7 to 10 days. Payment terms such as T/T, Western Union, and L/C provide flexible options for international buyers.

Overall, the LP-BX019 IDC Socket / BOX Header is perfectly suited for applications in computer peripherals, networking equipment, automotive electronics, and consumer devices where reliable IDC connections are essential. Its combination of quality certifications, versatile mounting options, and efficient insulation displacement contact technology makes it a preferred choice for engineers and manufacturers seeking dependable IDC ribbon cable sockets and box header connectors.

Customization:

Introducing the LP brand IDC Socket / BOX Header, model number LP-BX019, proudly made in China and certified with ISO-9001:2000. This Insulation Displacement Contact Socket is designed to meet high-quality standards and ensure reliable performance in various applications.

Our Insulation Displacement Connector Socket supports a current rating of 3A per contact and operates efficiently within a temperature range of -65°C to +125°C. With a dielectric withstanding voltage of AC 500V and an insulation resistance of 1000M Ohms minimum, it guarantees excellent electrical insulation and durability.

The LP-BX019 model is available in multiple types including Vertical, Right Angle, SMT, and Double Row configurations, allowing for versatile use in different PCB layouts. Packaging options include Reel, Tube, Tray, and Polybag to suit your specific needs.

We offer a minimum order quantity of 1000PCS with a competitive price of 0.0001 per unit. Our supply ability is up to 100,000PCS, ensuring timely fulfillment of large orders. Delivery time ranges from 7 to 10 days, and payment terms include T/T, Western Union, and L/C for your convenience.

Choose our Insulation Displacement Connector Socket products for reliable performance, flexible customization, and excellent service. Contact us today to customize your order and benefit from the quality and expertise of LP’s IDC Socket / BOX Header solutions.

Support and Services:

Our IDC Socket / BOX Header products are designed to provide reliable and efficient connections for various electronic applications. To ensure optimal performance, please follow the installation guidelines carefully and verify compatibility with your existing components.

If you encounter any issues during installation or use, consult the product datasheet and user manual for troubleshooting tips and detailed specifications. Proper handling and storage of the connectors are essential to maintain their durability and functionality.

For maintenance, regularly inspect the connectors for any signs of wear, corrosion, or damage. Cleaning should be performed using appropriate solvents and tools recommended in the product documentation to avoid compromising the contact surfaces.

We offer technical support to assist with product selection, application advice, and problem resolution. Our support team is knowledgeable about the IDC Socket / BOX Header series and can provide guidance to optimize your system’s connectivity solutions.

Please ensure that all installation and maintenance activities comply with relevant safety standards and regulations. Utilizing our IDC Socket / BOX Header products in accordance with the provided instructions will help maximize their lifespan and reliability in your applications.

Packing and Shipping:

Product Packaging:

The IDC Socket / BOX Header is carefully packaged to ensure protection during transit and handling. Each unit is placed in anti-static bags to prevent electrostatic discharge damage. Multiple units are then packed in sturdy cardboard boxes with cushioning materials to avoid physical damage. The packaging is clearly labeled with product information, quantity, and handling instructions to facilitate easy identification and inventory management.

Shipping:

We offer reliable shipping options to deliver the IDC Socket / BOX Header products safely to your location. Shipments are dispatched promptly from our warehouse using trusted courier services. Tracking information is provided for all shipments to enable real-time monitoring. We also offer international shipping with appropriate customs documentation to ensure smooth delivery across borders. Special care is taken to handle the packages gently to maintain product integrity throughout the shipping process.
