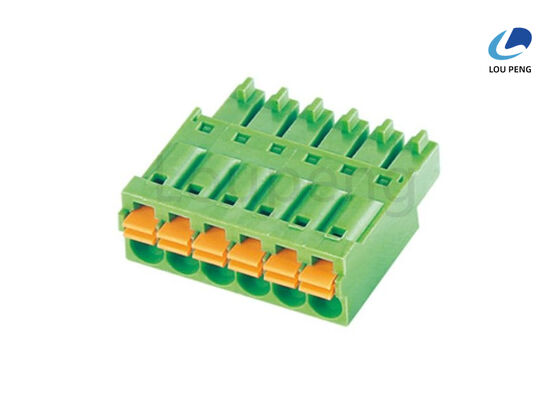

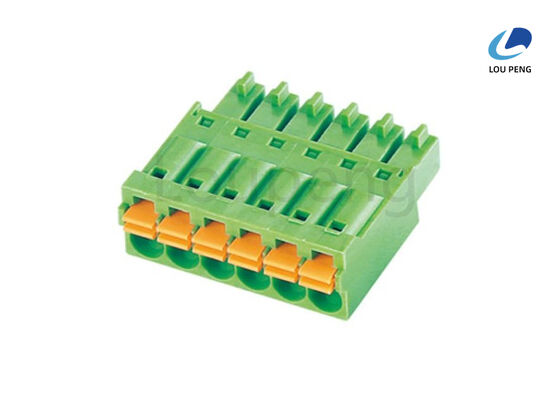

Withstanding Voltage AC1500 1Min Terminal Blocks Featuring Pin Header Brass Tin Plated and Temperature Range Minus 40 to Plus 105 Degrees Celsius

Product Description:

The Terminal Blocks are essential components designed to provide secure and efficient electrical connections in various industrial and commercial applications. Engineered with precision, these terminal blocks are a reliable solution for organizing and connecting multiple wires, ensuring safety and durability in electrical circuits. Among the various types available, the Screw Clamp Terminal Block stands out for its robust clamping mechanism, which guarantees a firm and vibration-resistant connection, making it ideal for environments subject to mechanical stress and movement.

One of the key features of these terminal blocks is their strip length, which ranges between 6 to 7mm. This strip length is optimized to accommodate standard wire sizes, allowing for easy and secure insertion of stripped wires. The precise strip length facilitates efficient wiring and reduces the risk of loose connections, which can lead to electrical failures. This makes the terminal blocks highly suitable for complex wiring systems where reliability is paramount.

In terms of electrical performance, the terminal blocks boast an impressive withstanding voltage of AC1500 for 1 minute. This high dielectric strength ensures that the terminal blocks can handle significant voltage surges without breaking down or causing short circuits. This attribute is particularly important in industrial settings where electrical equipment is exposed to fluctuating voltages and transient spikes. The superior insulation properties contribute to the safety and longevity of the electrical system.

The terminal blocks are designed to operate efficiently within a wide temperature range of -40℃ to +105℃. This broad temperature tolerance makes them suitable for use in harsh environments, including outdoor installations and industrial facilities where temperature extremes are common. The ability to maintain performance across such a temperature spectrum ensures that the terminal blocks remain reliable under various climatic conditions, preventing thermal damage and ensuring consistent electrical connectivity.

Installation versatility is another significant advantage of these terminal blocks. They support multiple mounting types, including DIN Rail and Panel Mount options. The DIN Rail Terminal Block configuration allows for quick and secure installation on standard DIN rails, facilitating modular and organized wiring setups in control panels and distribution boards. The Panel Mount option provides an alternative mounting solution for applications requiring direct attachment to panels, enhancing flexibility in system design and assembly.

The housing of the terminal blocks is made from high-quality PA66 material, which complies with the UL94V-0 flame retardant standard. This ensures that the terminal blocks have excellent mechanical strength and resistance to heat and flame, contributing to overall electrical safety. The PA66 housing also offers chemical resistance and durability, protecting the internal components from environmental factors such as moisture, dust, and corrosive substances. These characteristics extend the service life of the terminal blocks and reduce maintenance requirements.

In addition to individual terminal blocks, the product range includes Multi Pole Terminal Blocks, which provide the convenience of connecting multiple circuits within a compact footprint. These multi-pole configurations are ideal for complex electrical systems that require neat and efficient wire management. By combining several poles into a single unit, these terminal blocks simplify installation, reduce wiring errors, and enhance system reliability.

Overall, these terminal blocks are a comprehensive solution for electrical connection needs, combining robust mechanical design, excellent electrical insulation, and versatile mounting options. Whether you require a Screw Clamp Terminal Block for secure wire fixation, a Multi Pole Terminal Block for compact multi-circuit connections, or a DIN Rail Terminal Block for modular panel installations, this product line delivers exceptional performance and safety. Their high withstanding voltage, wide temperature range, and flame-retardant housing make them suitable for a broad spectrum of applications, from industrial automation to building electrical systems.

Choosing these terminal blocks ensures dependable and durable electrical connections, contributing to the efficiency and safety of your electrical installations. Their design and material quality reflect a commitment to excellence, making them a preferred choice for professionals seeking reliable terminal blocks for demanding environments.

Features:

• Product Name: Terminal Blocks
• Contact Resistance: 20mOhm
• Strip Length: 6 - 7mm
• Maximum Soldering Temperature: +250℃ for 5 seconds
• Temperature Range: -40℃ to +105℃
• Rated Current: 8A
• Suitable for use as a Panel Mount Terminal Block
• Ideal Wire Connection Terminal for secure wiring
• Modular Terminal Connector design for easy installation and scalability

Technical Parameters:

This Multi Pole Terminal Block is designed for reliable electrical connections with high performance. The Multi Pole Terminal Block supports flexible mounting options including DIN Rail and Panel Mount, ensuring versatile application. Featuring a durable housing and tin-plated brass pin headers, this Multi Pole Terminal Block withstands rigorous soldering and temperature conditions for optimal durability.

Applications:

The LP-TB013 Terminal Blocks from LP are highly versatile components designed for a wide range of electrical and electronic applications. As a DIN Rail Terminal Block and Screw Clamp Terminal Block, they provide reliable and secure wire connections in industrial, commercial, and residential settings. These terminal blocks are ideal for organizing and managing wiring systems, ensuring safety and efficiency in electrical circuits.

One of the primary application occasions for the LP-TB013 is in control panels and distribution boards, where neat and dependable wire connections are critical. Thanks to their DIN Rail and Panel Mount compatibility, these terminal blocks can be easily installed in various equipment enclosures and switchgear assemblies. Their screw clamp mechanism guarantees firm and stable wire connections, minimizing the risk of loose contacts and electrical faults.

In industrial automation and machinery, the LP-TB013 terminal blocks excel in connecting sensors, actuators, and control devices. The rated current of 8A and withstanding voltage of AC1500/1Min. ensure they can handle moderate power loads safely. Additionally, the high insulation resistance of 5000Mohm/1000V enhances their reliability in harsh environments where electrical insulation is paramount.

The terminal blocks are also widely used in building automation systems, such as lighting control, HVAC, and security systems, where multiple wiring connections are required. Their strip length of 6-7mm suits standard wire sizes, facilitating quick and efficient installation. With a minimum order quantity of 1000PCS and a competitive price of 0.04 per unit, LP supplies these terminal blocks in tube or tray packaging, making them convenient for bulk procurement and inventory management.

Thanks to ISO-9001:2000 certification, customers can trust the quality and consistency of the LP-TB013 terminal blocks. The supply ability of 100,000PCS and delivery time of 7 to 10 days ensure prompt fulfillment of orders. Payment terms include T/T, Western Union, and L/C, providing flexible options for domestic and international buyers.

In summary, the LP-TB013 Screw Clamp Terminal Block and Wire Connection Terminal are suitable for any scenario requiring secure, efficient, and durable electrical connections. Their robust design and multiple mounting options make them an excellent choice for DIN Rail Terminal Block applications across various industries.

Customization:

Our LP brand Terminal Blocks, model number LP-TB013, are high-quality DIN Rail Terminal Blocks designed for efficient wire connection terminals. Manufactured in China and certified with ISO-9001:2000, these electrical terminal connectors ensure reliability and safety in various applications.

With a rated current of 8A and a strip length of 6-7mm, these terminal blocks are suitable for both DIN Rail and Panel Mount installations. The housing is made from durable PA66 material with UL94V-0 flame retardant rating, providing excellent protection and longevity.

We offer a minimum order quantity of 1000PCS at a competitive price of $0.04 per piece. Packaging is available in tube or tray formats to meet your logistical needs. Our supply ability is 100,000PCS, ensuring timely delivery within 7 to 10 days.

Payment terms include T/T, Western Union, and L/C for your convenience. Choose our LP-TB013 Terminal Blocks for a reliable and efficient solution in your electrical wiring projects.

Support and Services:

Our Terminal Blocks product is designed to provide reliable and efficient electrical connections for a wide range of applications. To ensure optimal performance, please follow the installation guidelines and maintain regular inspection schedules.

If you encounter any issues, consult the product manual for troubleshooting tips and technical specifications. Our support team is available to assist with installation, configuration, and maintenance queries.

We offer comprehensive services including product training, custom solutions, and extended warranty options to meet your specific needs. For detailed information on compatibility and safety standards, please refer to the technical datasheets provided with the product.

Ensure that all wiring complies with local electrical codes and standards to guarantee safety and functionality. For complex installations or specialized requirements, professional consultation is recommended.

We are committed to providing continuous support throughout the lifecycle of your Terminal Blocks to maximize reliability and performance in your electrical systems.

Packing and Shipping:

Our Terminal Blocks are carefully packaged to ensure maximum protection during transit. Each unit is securely placed in individual compartments within sturdy cartons to prevent movement and damage. The packaging materials are selected to provide cushioning against shocks and vibrations, maintaining the integrity of the product.

For shipping, we offer multiple options including standard ground, expedited, and freight services to accommodate your delivery needs. All shipments are tracked and insured to guarantee safe and timely arrival. Bulk orders are palletized and wrapped to facilitate easy handling and storage upon delivery.
