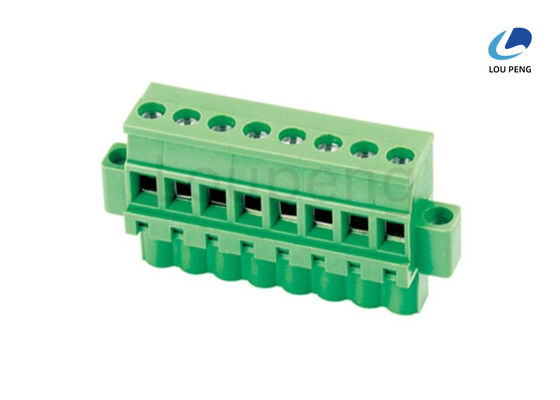

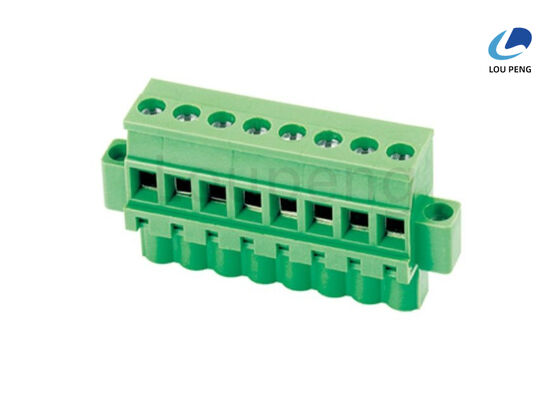

Wire Range 24 to 14 AWG 1mm2 Push Wire Terminal Block Temp Range Minus 40 to Plus 105 Degrees Ideal for Secure and Wiring

Product Description:

The Terminal Blocks are an essential component designed to provide secure and reliable electrical connections in a wide range of applications. Engineered with precision and high-quality materials, these terminal blocks ensure excellent performance and durability, making them an ideal choice for both industrial and commercial electrical systems. Rated for a voltage of 300V, these terminal blocks offer safe and efficient conductivity, suitable for various low to medium voltage applications.

One of the standout features of these terminal blocks is their outstanding contact resistance, which is rated at a mere 20 milliohms (mOhm). This low contact resistance ensures minimal energy loss and heat generation, promoting efficient power transfer and maintaining the integrity of the electrical circuit. The contacts are crafted from high-grade phosphor bronze, a material known for its excellent electrical conductivity, mechanical strength, and corrosion resistance. This combination guarantees long-lasting performance even in demanding environments.

The housing of the Terminal Blocks is made from PA66, a type of polyamide known for its robustness, thermal stability, and resistance to chemicals and mechanical stress. The housing material also complies with the UL94V-0 standard, which indicates that it is flame retardant and self-extinguishing. This safety feature is crucial for preventing fire hazards in electrical installations, thereby enhancing the overall safety of the electrical system.

These Terminal Blocks are designed as panel mount terminal blocks, which means they can be securely installed onto control panels or equipment housings. This mounting style facilitates easy wiring and maintenance, ensuring that the connections remain stable and accessible. Panel mount terminal blocks are widely used in automation systems, control cabinets, and distribution boards, providing a neat and organized solution for managing electrical connections.

Furthermore, these terminal blocks function as modular terminal connectors, allowing for flexible and scalable wiring configurations. The modular design enables users to add or remove connection points as needed, adapting to changing system requirements without extensive rewiring. This modularity simplifies installation and reduces downtime during maintenance or upgrades, making these terminal blocks a cost-effective and versatile solution for electrical connectivity.

As an electrical terminal connector, these terminal blocks serve as a critical interface between wiring systems, ensuring secure mechanical and electrical connections. They help in the distribution of electrical power and signals within control panels, machinery, and equipment. Their reliable construction and high-quality materials minimize the risk of loose connections, electrical shorts, and signal loss, thereby enhancing the overall efficiency and safety of the electrical system.

In summary, the Terminal Blocks, with their 300V rated voltage, low 20mOhm contact resistance, phosphor bronze contacts, and PA66 UL94V-0 housing, provide a robust and dependable solution for electrical connectivity. Their panel mount configuration and modular terminal connector design offer flexibility, ease of installation, and maintenance, making them suitable for a wide range of industrial and commercial applications. Whether used in automation, control panels, or other electrical systems, these electrical terminal connectors deliver consistent performance, safety, and reliability.

Features:

• Product Name: Terminal Blocks
• Type: Barrier Strip Terminal Block
• Contact Resistance: 20mOhm
• Temperature Range: -40℃ to +105℃
• Wire Range: 24 - 14 AWG (1mm²)
• Contact Material: Phosphor Bronze
• Rated Voltage: 300V
• Suitable for use as an Electrical Terminal Connector
• Features Push Wire Terminal Block design for easy wiring

Technical Parameters:

Applications:

The LP Terminal Blocks, model LP-TB012, are versatile and reliable electrical connectors designed to meet a wide range of application occasions and scenarios. Manufactured in China and certified with ISO-9001:2000, these terminal blocks guarantee high quality and durability for industrial and commercial use. With a rated current of 8A and suitable wire range from 24 to 14 AWG (1mm²), the LP-TB012 terminal blocks are ideal for various wiring and electrical connection needs.

One of the most common application scenarios for the LP-TB012 is in industrial control panels, where secure and efficient connections are critical. The product supports both DIN Rail and Panel Mount installation types, making it highly adaptable to different mounting requirements. This flexibility allows it to be used as a Barrier Strip Terminal Block in control cabinets, distribution boxes, and automation equipment, providing clear and safe electrical isolation between circuits.

In addition, the LP-TB012 functions excellently as a Push Wire Terminal Block, simplifying the wiring process by enabling quick and tool-free wire insertion. This feature enhances productivity and reduces installation time, making it suitable for use in electrical panels and junction boxes in residential, commercial, and industrial buildings. The tin-plated brass pin header ensures low contact resistance of only 20mOhm, maintaining reliable electrical conductivity even in demanding environments.

Panel Mount Terminal Block applications are another key scenario where the LP-TB012 shines. Its robust design and packaging options, including tube and tray, facilitate easy handling and storage, especially for large-scale projects requiring a minimum order quantity of 1000 pieces. With a competitive price of $0.04 per unit and a supply ability of 100,000 PCS, the LP brand terminal blocks offer excellent cost-efficiency for manufacturers and system integrators.

Furthermore, the quick delivery time of 7 to 10 days and flexible payment terms such as T/T, Western Union, and L/C make the LP-TB012 terminal blocks a convenient choice for global customers. Whether you are assembling electrical panels, setting up control systems, or performing routine maintenance, these terminal blocks provide a dependable solution across diverse application occasions and scenarios.

Customization:

Our Terminal Blocks, model LP-TB012 from the trusted LP brand, are designed to meet the highest standards of quality and reliability. Manufactured in China and certified under ISO-9001:2000, these Wire Connection Terminals ensure superior performance in industrial applications.

With a minimum order quantity of 1000PCS and a competitive price of $0.04 per piece, our Push Wire Terminal Blocks offer excellent value. They come packaged securely in tubes or trays, facilitating easy handling and storage.

The LP-TB012 Terminal Blocks feature a withstanding voltage of AC1500/1Min and an insulation resistance of 5000Mohm/1000V, ensuring safety and durability. The strip length is precisely 6 - 7mm, and the maximum soldering temperature is +250℃ for 5 seconds, making them suitable for various industrial environments.

These Industrial Terminal Blocks support flexible mounting options including DIN Rail and Panel Mount, adapting to different installation requirements. We guarantee a supply ability of 100,000PCS with a delivery time of 7 to 10 days.

Payment terms are convenient and secure, accepting T/T, Western Union, and L/C. Choose LP Terminal Blocks for your wire connection needs and experience reliable, high-quality industrial solutions.

Support and Services:

Our Terminal Blocks product is designed to provide secure and reliable electrical connections for a variety of applications. We offer comprehensive technical support and services to ensure optimal performance and customer satisfaction.

Technical Support:

Our experienced support team is available to assist with product selection, installation guidance, troubleshooting, and maintenance advice. We provide detailed product documentation, including datasheets, wiring diagrams, and application notes to help you make the most of your terminal blocks.

Services:

We offer customization options to meet specific application requirements, including variations in size, material, and configuration. Our quality assurance processes ensure that each terminal block meets industry standards for safety and durability.

For any technical inquiries or service requests, please refer to our online resources or contact our support center for prompt assistance.

Packing and Shipping:

Our terminal blocks are carefully packaged to ensure maximum protection during transit. Each unit is securely placed in individual compartments within sturdy cartons to prevent movement and damage. The packaging materials used are eco-friendly and designed to withstand rough handling and environmental factors.

For shipping, we offer multiple options including standard ground, expedited, and freight services to accommodate your delivery needs. All shipments are tracked and insured to guarantee safe and timely arrival. Bulk orders are palletized and shrink-wrapped for added stability and ease of handling.

We prioritize safe and efficient packaging and shipping practices to ensure that our terminal blocks reach you in perfect condition, ready for immediate use in your electrical projects.
