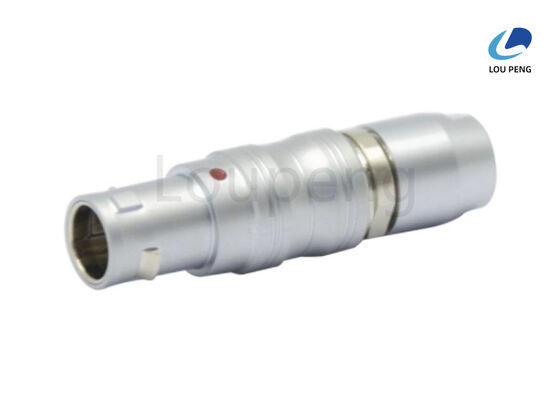

Mechanical Operation Over 5000 Times Push-Pull Connector Copper Alloy Shell Material Temperature Range Meta -55°C to 250°C Durable

Product Description:

The Push Pull Connector is an advanced and reliable solution designed for a wide range of electrical and signal connection applications. Engineered to provide secure and efficient connectivity, this connector is available in both Male Pin and Female Pin contact types, ensuring compatibility with various system configurations. Its robust design and high-performance features make it an ideal choice for industries requiring dependable and durable connection solutions.

One of the standout features of the Push Pull Connector is its exceptional anti-vibration performance. It is tested to withstand vibration frequencies ranging from 10Hz to 2000Hz with an intensity of 15g, ensuring stable and reliable connections even in environments subjected to intense mechanical stress or movement. This makes the Push Pull Electrical Connector particularly suitable for aerospace, automotive, and industrial applications where vibration is a common challenge.

The insulation material used in the Push Pull Signal Connector is PPS (Polyphenylene Sulfide), a high-performance thermoplastic known for its excellent thermal stability, chemical resistance, and mechanical strength. PPS insulation contributes to the connector's ability to operate reliably across a wide temperature range, making it adaptable to various harsh environments. Specifically, the temperature range for the plastic components varies depending on the material used: PSU plastic can endure temperatures from -55°C up to +150°C, PPSU plastic extends this range from -55°C to +180°C, and PEEK plastic offers the highest thermal resistance, operating safely between -55°C and +250°C. This wide temperature tolerance ensures that the Push Pull Connector maintains performance and durability in extreme conditions.

In addition to its thermal resilience, the Push Pull Connector demonstrates outstanding resistance to corrosion. It has passed rigorous salt spray corrosion testing for more than 144 hours, highlighting its suitability for use in marine and other corrosive environments. This corrosion resistance extends the lifespan of the connector, reduces maintenance requirements, and ensures consistent performance over time, even when exposed to harsh weather or chemical conditions.

The Push Pull Electrical Connector also features a user-friendly design that simplifies connection and disconnection processes. The push-pull mechanism allows for quick, one-handed operation, which not only saves time but also minimizes the risk of damage to the connector or connected equipment. This ease of use is particularly beneficial in applications where connectors need to be frequently connected and disconnected or where space constraints limit maneuverability.

Furthermore, the Push Pull Signal Connector is designed to provide excellent electrical performance with minimal signal loss or interference. Its precise contact arrangement and high-quality materials ensure stable signal transmission, making it suitable for sensitive electronic applications such as communication systems, medical devices, and instrumentation. The reliable connection integrity provided by the push-pull design helps maintain high system performance and reduces downtime caused by connection failures.

In summary, the Push Pull Connector is a versatile and high-performance solution that combines durability, ease of use, and excellent electrical characteristics. With options for Male Pin and Female Pin contacts, superior anti-vibration capabilities, robust PPS insulation, proven corrosion resistance, and a broad operating temperature range thanks to advanced plastic materials like PSU, PPSU, and PEEK, this connector meets the demanding needs of modern electrical and signal connection applications. Whether you require a Push Pull Electrical Connector or a Push Pull Signal Connector, this product offers reliable, long-lasting performance in a variety of challenging environments.

Features:

• Product Name: Push Pull Connector
• Type: Push Pull Circular Connector
• Waterproof Feature: Push Pull Waterproof Connector
• Insulation Material: PPS
• Operating Temperature Range: –20 °C to +100 °C (00 to 1b), –20 °C to +80 °C (2b to 5b)
• Impact Resistance: 100g for 6ms
• Temperature Range of Plastic Materials:
  • PSU: -55°C to +150°C
  • PPSU: -55°C to +180°C
  • PEEK: -55°C to +250°C
• Disinfection Resistance:
  • PSU: -20 times
  • PPSU: >100 times
  • PEEK: >200 times
• Reliable Push Pull Connector for secure and efficient connections

Technical Parameters:

Applications:

The LP Push Pull Coupling Connector, model number LP-PU013, is a high-quality product originating from China, certified under ISO-9001:2000 standards. This reliable connector is designed to provide secure and efficient connections in a variety of demanding applications. With its robust mechanical operation capability exceeding 5000 cycles, the LP Push Pull Coupling Connector ensures long-lasting performance and durability, making it ideal for repeated use in professional environments.

The Push Pull Coupling Connector is widely used in industries such as medical equipment, industrial automation, telecommunications, and instrumentation where reliable signal transmission and secure connections are critical. Its ability to withstand a broad temperature range—from -55°C to +250°C depending on the plastic material used (PSU, PPSU, or PEEK)—makes it suitable for harsh environments and extreme conditions. This ensures stable operation whether in a cold storage facility or a high-temperature industrial setting.

In medical applications, the Push Pull Signal Connector’s excellent disinfection resistance—ranging from 20 times with PSU to over 200 times with PEEK material—makes it perfect for equipment that requires frequent sterilization without compromising the integrity of the connection. This feature is especially important for devices used in surgical or diagnostic procedures, where hygiene and reliability are paramount.

The LP Push Pull Coupling Connector also excels in scenarios requiring fast and secure connections with easy disconnection, such as in test and measurement devices, audio-visual equipment, and military communication systems. Its male and female pin contact types provide flexibility and compatibility with various system configurations. The connector’s compact size and lightweight design further enhance its usability in portable devices and applications where space is limited.

Available in packaging options such as tubes or trays, the LP-PU013 model supports bulk orders with a minimum order quantity of 1000 pieces and a supply capacity of up to 100,000 pieces. With a competitive price of 0.08 USD per piece and a delivery time of 7 to 10 days, it offers an efficient and cost-effective solution for manufacturers and system integrators. Payment terms include T/T, Western Union, and L/C, providing convenient transaction options.

Overall, the LP Push Pull Coupling Connector is an excellent choice for any application requiring reliable, durable, and easy-to-use connectors. Whether for industrial, medical, or communication needs, this connector guarantees secure and stable connections under a wide range of environmental and operational conditions.

Customization:

Introducing the LP Push Pull Locking Connector, model number LP-PU013, proudly manufactured in China with ISO-9001:2000 certification. This Push Pull Cable Connector is designed for high performance and durability, with a minimum order quantity of 1000PCS and a competitive price of $0.08 per unit.

Our Push Pull Cable Connector features exceptional reliability, passing rigorous salt spray corrosion tests exceeding 144 hours and maintaining a leakage rate (He) of less than 10-7 mbar·L·s-1. It offers outstanding disinfection resistance withstanding -20 times for PSU, over 100 times for PPSU, and more than 200 times for PEEK materials.

The connector supports a wide temperature range with plastic options including PSU (-55°C to +150°C), PPSU (-55°C to +180°C), and PEEK (-55°C to +250°C), making it suitable for various demanding environments. Additionally, it provides excellent shielding effects of over 80 dB at 1 GHz and more than 95 dB at 10 MHz, ensuring optimal signal integrity.

Packaging is available in tube or tray formats, ensuring safe and convenient handling. We guarantee a delivery time of 7 to 10 days and flexible payment terms including T/T, Western Union, and L/C. With a supply ability of 100,000PCS, LP is your trusted partner for customized Push Pull Cable Connector solutions.

Support and Services:

Our Push-Pull Connectors are designed for reliable and secure connections in a variety of applications. For technical support and service inquiries, please refer to the product manual for detailed installation and maintenance instructions.

If you encounter any issues with your Push-Pull Connector, ensure that the connector is properly mated and locked into place. Check for any visible damage or debris that may affect performance.

For repairs or replacements, use only authorized parts and follow the recommended procedures to maintain product integrity and safety standards.

Regular inspection and cleaning of the connectors can help prevent connectivity problems and extend the product’s lifespan. Use appropriate cleaning agents compatible with the connector materials.

For additional technical assistance, troubleshooting guides, and warranty information, please consult the official product documentation provided with your Push-Pull Connector.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in an anti-static bag to prevent any damage from electrostatic discharge. The connectors are then securely placed in a custom-designed foam insert within a sturdy cardboard box, providing cushioning against shocks and vibrations.

For shipping, we use reliable carriers with tracking options to ensure timely and safe delivery. All packages are labeled clearly with handling instructions to minimize the risk of damage. Depending on your location and preference, we offer various shipping methods including standard, expedited, and overnight delivery to meet your needs.

We take pride in our packaging and shipping process, aiming to deliver your Push-Pull Connectors in perfect condition and on schedule.
