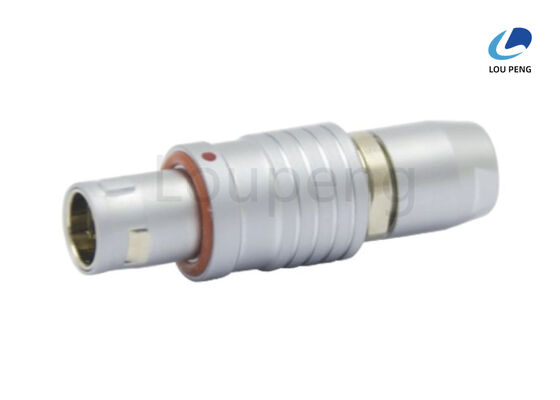

Impact Resistance 100g 6ms Push Pull Cable Connector Ensuring IP50 Protection Grade Performance in Industrial Control Systems

Product Description:

The Push Pull Connector is an advanced and versatile solution designed to meet the demanding needs of various industrial, medical, and electronic applications. Known for its reliability and ease of use, this connector exemplifies precision engineering, combining durability with a user-friendly push-pull quick release mechanism. Available in both plug and socket configurations, this connector system ensures secure and efficient connectivity, making it an ideal choice for environments where quick and reliable connections are critical.

One of the standout features of the Push Pull Connector is its availability in two distinct orientations: straight and right angle. This flexibility allows for optimal installation in a variety of setups, catering to spatial constraints and design preferences. Whether you require a straight connector for straightforward cable routing or a right angle version for tight spaces, the Push Pull Cable Connector accommodates these needs without compromising performance or durability.

The shell material of this connector is made from high-quality copper alloy, which offers excellent strength and resistance to corrosion. This material choice not only enhances the mechanical robustness of the connector but also contributes to superior electromagnetic compatibility (EMC) shielding. As a result, the Push Pull Connector maintains signal integrity even in environments with significant electromagnetic interference, ensuring reliable data and power transmission.

Durability and environmental resilience are key attributes of this connector. It has undergone rigorous environmental testing, including the 50 / 175 / 21 standard, which assesses its ability to withstand temperature extremes, humidity, and mechanical stress. This certification guarantees that the Push Pull Quick Release Connector performs reliably under harsh conditions, making it suitable for applications ranging from aerospace and defense to medical instrumentation and industrial automation.

The temperature range of the Push Pull Connector is particularly impressive, operating effectively from as low as -55°C up to an extreme high of +250°C. This wide temperature tolerance ensures that the connector can be deployed in environments with severe thermal fluctuations without risk of failure or degradation. Such capability is essential for applications exposed to outdoor conditions, high-temperature machinery, or cryogenic environments.

As a connector type, the Push Pull Connector is available in both plug and socket varieties, allowing for a complete mating system that guarantees secure and stable connections. The push-pull quick release mechanism is designed for ease of use, enabling users to connect and disconnect cables rapidly without the need for additional tools. This feature significantly reduces downtime during maintenance or equipment changes, enhancing operational efficiency and safety.

In addition to its practical benefits, the Push Pull Cable Connector boasts a compact and ergonomic design. Its streamlined form factor minimizes space usage and simplifies cable management, which is particularly beneficial in complex assemblies or confined spaces. The connector’s design also incorporates features to prevent accidental disconnection, ensuring that connections remain stable even in environments subject to vibration or movement.

Overall, the Push Pull Connector is a highly reliable, flexible, and durable solution tailored for demanding applications that require quick and secure cable connections. Its combination of copper alloy shell construction, broad temperature range, and rigorous environmental testing makes it well-suited for use across numerous industries. Whether you need a straight or right angle orientation, plug or socket type, this push pull quick release connector system offers unmatched performance and convenience.

Choosing the Push Pull Connector means investing in a product that enhances connectivity reliability, operational efficiency, and long-term performance. Its robust design and user-friendly operation set it apart from conventional connectors, making it the preferred choice for professionals looking for a dependable push pull cable connector that can withstand the toughest conditions while providing rapid and secure connections every time.

Features:

• Product Name: Push-Pull Connector
• Protection Grade: IP50
• Mounting Type: Panel Mount
• Salt Spray Corrosion Test: > 144 hours
• Environmental Experiment Conditions: 20°C / 80% RH / 21 days
• Contact Type: Male Pin / Female Pin
• Reliable Push Pull Electrical Connector design for secure connections
• Durable Push Pull Waterproof Connector with IP50 protection grade
• Suitable for various applications requiring Push Pull Electrical Connector solutions

Technical Parameters:

Applications:

The LP Push-Pull Connector, model number LP-PU012, is a versatile and reliable solution designed for various industrial and commercial applications. Manufactured in China under the ISO-9001:2000 certification, this connector guarantees quality and durability, making it an ideal choice for environments where secure and efficient connections are crucial. With a supply ability of 100,000 pieces and a minimum order quantity of 1000PCS, the LP-PU012 offers excellent availability for large-scale projects.

This Push Pull Locking Connector is widely used in scenarios that require quick and secure coupling and decoupling of electrical connections. Its unique push-pull mechanism ensures a fast and firm lock, preventing accidental disconnections even in high-vibration environments. This makes it perfectly suited for industrial automation systems, medical equipment, instrumentation, and aerospace applications where reliability and ease of use are paramount.

The LP-PU012 also excels as a Push Pull Waterproof Connector, offering robust protection against moisture and environmental contaminants. With a leakage rate (He) of less than 10-7 mbar.L.s-1, it ensures excellent sealing performance, making it ideal for outdoor installations, marine equipment, and harsh industrial environments. The connector's solvent corrosion resistance varies from average (PSU) to very good (PEEK), allowing it to withstand chemical exposure in chemical processing plants and laboratories.

In addition, this Push Pull Coupling Connector features both plug and socket connector types with male and female pins, enabling diverse configuration options to meet specific wiring and connectivity requirements. Its packaging details include tube and tray options, facilitating easy handling and inventory management. With a competitive price of $0.08 per piece and delivery time of 7 to 10 days, the LP-PU012 offers excellent value for customers seeking cost-effective yet high-performance connectors.

Payment terms such as T/T, Western Union, and L/C provide flexibility for international buyers, further enhancing its appeal across global markets. The connector's environmental experiment ratings of 20 / 80 / 21 also attest to its stability under various temperature and humidity conditions, ensuring consistent performance in diverse application scenarios.

Overall, the LP-PU012 Push Pull Connector series is perfectly suited for use in telecommunications, automotive electronics, renewable energy systems, and other fields where dependable, waterproof, and easily operable connectors are essential. Its combination of durability, ease of use, and superior sealing makes it an excellent choice for engineers and designers seeking a reliable push-pull connector solution.

Customization:

Our LP Push Pull Metal Connector, model number LP-PU012, is manufactured in China and certified to ISO-9001:2000 standards, ensuring high quality and reliability. Designed for both plug and socket connector types, this Push Pull Connector features robust impact resistance of 100g 6ms and exceptional disinfection resistance withstanding -20 times for PSU, over 100 times for PPSU, and more than 200 times for PEEK materials.

The Push Pull Quick Release Connector offers superior shielding effect with over 80 dB attenuation at 1GHz and more than 95 dB at 10MHz, making it ideal for applications requiring excellent electromagnetic interference protection. It is designed for panel mount installation and is available in packaging options including tube and tray for easy handling and storage.

With a supply ability of 100,000PCS and a minimum order quantity of 1,000PCS, we ensure timely delivery within 7 to 10 days. Our competitive price of 0.08 per unit, combined with flexible payment terms including T/T, Western Union, and L/C, makes this Push Pull Connector a cost-effective solution for your connectivity needs.

Support and Services:

Our Push-Pull Connector product is designed to provide reliable and secure connections in a variety of applications. For technical support, please refer to the product manual for detailed installation and maintenance instructions. Ensure that connectors are properly aligned and fully engaged to maintain optimal performance. Regular inspection and cleaning of the connectors are recommended to prevent contamination and ensure longevity.

If you encounter any issues with the Push-Pull Connector, verify that the mating surfaces are free of debris and damage. Check for proper locking engagement and confirm that the connector is compatible with your system specifications. For troubleshooting guidance, consult the FAQ section available on our website or the product documentation.

We offer comprehensive services including connector customization, repair, and replacement to meet your specific needs. Our technical team is committed to providing prompt assistance to minimize downtime and maximize system efficiency. For further assistance, please utilize our online resources or service request tools.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in an anti-static bag to prevent damage from electrostatic discharge. The connectors are then placed in a custom-designed foam insert that securely holds the product in place within a sturdy cardboard box.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All packages are labeled with clear handling instructions to avoid mishandling. We also offer expedited shipping options for urgent orders to meet your project deadlines efficiently.

Whether you are ordering a single unit or bulk quantities, our packaging and shipping processes are designed to maintain the product’s integrity and ensure it arrives in perfect working condition.
