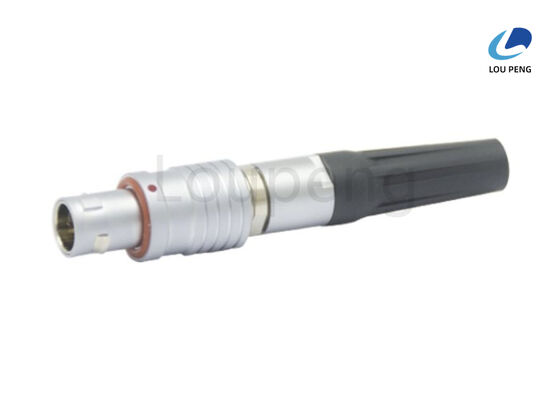

Panel Mount Push Pull Connector Plug Socket Temperature Range Plastic Minus 55 Celsius Plus 180 Celsius PPSU Durable Connection

Product Description:

The Push Pull Coupling Connector is an advanced and reliable solution designed for a wide range of demanding applications that require secure, fast, and efficient connectivity. Engineered to meet rigorous industrial standards, this connector offers exceptional performance in harsh environments, making it an ideal choice for sectors such as aerospace, military, automotive, medical equipment, and telecommunications. Its robust design ensures seamless operation even under extreme conditions, ensuring longevity and safety in critical systems.

One of the standout features of the Push Pull Coupling Connector is its impressive temperature range, which spans from -55°C to +250°C. This wide thermal tolerance allows the connector to function reliably in environments characterized by extreme cold or intense heat. Whether it’s exposed to freezing outdoor conditions or high-temperature industrial processes, the connector maintains its structural integrity and operational efficiency without degradation. This capability is crucial for applications where temperature fluctuations are frequent and can otherwise compromise connectivity.

Vibration resistance is another key attribute of this connector. It is specifically designed to withstand anti-vibration performance in the frequency range of 10 to 2000Hz, with an acceleration force of up to 15g. This means that the Push Pull Quick Release Connector can endure heavy vibrations and shocks commonly encountered in mobile machinery, vehicles, and aerospace equipment. Its secure locking mechanism ensures that despite constant movement or jolts, the connection remains stable and uninterrupted, preventing accidental disconnections and potential system failures.

Environmental durability is a critical consideration for any connector used in challenging conditions, and the Push Pull Waterproof Connector excels in this regard. It has undergone stringent environmental experiments, including tests at 50°C, 175°C, and 21 days duration, ensuring its resilience against moisture, dust, and other contaminants. This waterproof capability guarantees that the connector performs flawlessly even in wet or dusty environments, protecting sensitive electronic components from corrosion and damage. This makes it an excellent choice for outdoor installations and marine applications.

The contact type options available for this connector include both Male Pin and Female Pin configurations, providing versatility and compatibility with a wide range of equipment and wiring setups. These contact types are designed for optimal electrical conductivity and minimal signal loss, which is essential for maintaining high-quality data transmission and power delivery. The precise engineering of the pins ensures a secure and firm connection every time, contributing to the overall reliability of the system.

Durability and reliability are further emphasized by the connector’s mechanical operation rating of over 5000 mating cycles. This means that the Push Pull Coupling Connector can be repeatedly connected and disconnected without compromising its performance or structural integrity. This high cycle life is particularly valuable in applications requiring frequent maintenance, testing, or modular system designs where components need to be swapped regularly.

In summary, the Push Pull Coupling Connector offers an exceptional combination of thermal endurance, vibration resistance, waterproof sealing, and mechanical robustness. Its quick release functionality allows for easy and fast connection or disconnection, saving valuable time during installation and maintenance. Whether you require a Push Pull Quick Release Connector for rapid deployment or a Push Pull Waterproof Connector for harsh environmental conditions, this product delivers unparalleled reliability and performance. Its versatile contact options and long operational lifespan make it a smart investment for any application demanding secure, high-quality electrical connections.

Features:

• Product Name: Push-Pull Connector
• Also known as Push Pull Locking Connector, Push Pull Cable Connector, and Push Pull Quick Release Connector
• Temperature Range Plastic:
  • -55°C to +150°C (PSU)
  • -55°C to +180°C (PPSU)
  • -55°C to +250°C (PEEK)
• Insulation Material: PPS
• Contact Type: Male Pin / Female Pin
• Solvent Corrosion Resistance:
  • Average (PSU)
  • Good (PPSU)
  • Very Good (PEEK)
• Leakage Rate (He): < 10 ^-7 mbar·L·s ^-1

Technical Parameters:

Applications:

The LP Push Pull Metal Connector, model number LP-PU011, is a high-performance push pull electrical connector designed to meet the rigorous demands of various industrial and commercial applications. Originating from China and certified under ISO-9001:2000, this connector combines reliability with durability, making it an ideal choice for environments requiring secure and efficient electrical connections.

One of the primary application occasions for the LP-PU011 Push Pull Electrical Connector is in the field of industrial automation. Its robust design, featuring a protection grade of IP50, ensures that it can withstand exposure to dust and other particulates, making it perfect for factory floor machinery and automated production lines. The connector's plug and socket type configuration facilitates quick and secure connections and disconnections, essential for maintenance and system upgrades.

In harsh environmental scenarios, the LP Push Pull Metal Connector demonstrates exceptional resilience. It boasts outstanding disinfection resistance, enduring up to 20 times for PSU materials, over 100 times for PPSU, and more than 200 times for PEEK, making it suitable for use in medical and laboratory equipment where frequent sterilization is necessary. Additionally, it has surpassed 144 hours in salt spray corrosion tests, highlighting its suitability for outdoor and marine applications where exposure to corrosive elements is common.

The connector also excels in environments subjected to varying temperature and humidity levels, as evidenced by its environmental experiment rating of 20 / 80 / 21. This makes the LP-PU011 an excellent choice for telecommunications, aerospace, and automotive industries, where components must perform reliably under fluctuating climatic conditions.

From a logistical perspective, the LP Push Pull Electrical Connector is available with a minimum order quantity of 1000PCS, priced competitively at $0.08 per piece. The product is packaged efficiently in tubes or trays to facilitate handling and inventory management. With a supply ability of 100,000PCS and a delivery time frame of 7 to 10 days, it supports large-scale deployments with prompt fulfillment. Payment terms are flexible, including T/T, Western Union, and L/C options, accommodating various buyer preferences.

In summary, the LP-PU011 Push Pull Electrical Connector is a versatile and reliable component suited for a wide range of application occasions and scenarios. Whether used in industrial automation, medical equipment, outdoor installations, or telecommunications, this connector delivers consistent performance, durability, and ease of use, making it an excellent investment for businesses seeking high-quality push pull connectors.

Customization:

Our LP brand Push Pull Locking Connector, model number LP-PU011, is a high-quality Push Pull Coupling Connector manufactured in China with ISO-9001:2000 certification. We offer product customization services with a minimum order quantity of 1000PCS, priced competitively at 0.08 USD per unit.

The Push Pull Electrical Connector comes packaged in Tube or Tray according to your preference, ensuring safe and convenient delivery within 7 to 10 days. We accept flexible payment terms including T/T, Western Union, and L/C to accommodate your business needs.

With a supply ability of 100,000PCS, this connector has undergone rigorous testing including a salt spray corrosion test exceeding 144 hours, and outstanding disinfection resistance ratings of -20 times for PSU, over 100 times for PPSU, and over 200 times for PEEK materials. The solvent corrosion resistance varies from average for PSU, good for PPSU, to very good for PEEK, providing reliable durability.

Designed for demanding environments, the Push Pull Locking Connector exhibits excellent anti-vibration performance across 10-2000Hz at 15g, and an IP50 protection grade to safeguard against dust ingress. Customize your Push Pull Coupling Connector with confidence, backed by our commitment to quality and performance.

Support and Services:

Our Push-Pull Connectors are designed to provide reliable and secure connections in a variety of industrial and electronic applications. For technical support, please refer to the product datasheet and installation guide included with your purchase. These documents provide detailed information on connector specifications, wiring instructions, and maintenance procedures to ensure optimal performance.

If you encounter any issues during installation or operation, verify that all connections are properly seated and locked using the push-pull mechanism. Ensure that the connectors are compatible with your equipment and that environmental conditions such as temperature and humidity are within the specified operating range.

For servicing, clean the connectors regularly using appropriate cleaning agents recommended in the maintenance manual to prevent contamination and ensure long-lasting functionality. Avoid applying excessive force when mating or unmating connectors to prevent damage to the locking mechanism.

Replacement parts and accessories for the Push-Pull Connector are available to support maintenance and repair needs. Consult the product catalog for compatible components to maintain system integrity.

For further technical assistance, troubleshooting tips, or to request repair services, please refer to our online support resources. We are committed to providing comprehensive support to ensure your Push-Pull Connector performs reliably throughout its service life.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static foam and placed inside a sturdy, cushioned box to prevent any damage from shocks or vibrations.

The packaging is designed to be compact yet robust, minimizing waste while providing secure containment. Clear labeling is applied to each package for easy identification and handling.

For shipping, we use reliable courier services with tracking options to guarantee timely delivery. Multiple units are boxed together with additional padding to avoid movement and impact.

We also offer customized packaging solutions upon request to meet specific requirements or branding needs.
