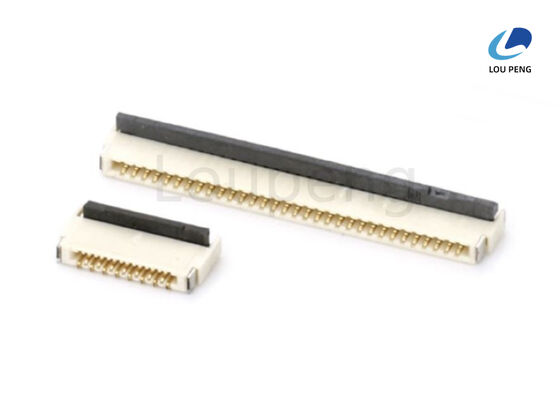

AC 500V Dielectric Withstanding Flexible Printed Circuit Connector Offering ZIF Zero Insertion Force Locking Mechanism for Circuit Integration

Product Description:

The FPC / FFC Connector is a highly reliable and versatile solution designed for connecting flexible printed circuits (FPC) and flexible flat cables (FFC) in a wide range of electronic applications. With its robust construction and advanced features, this connector ensures seamless performance and durability, making it an ideal choice for industries such as consumer electronics, automotive, telecommunications, and medical devices.

One of the primary features of this FFC Flexible Circuit Connector is its adaptability in terms of the number of positions it supports. The connector is available with 2 to 50 pins, allowing it to accommodate various circuit designs and requirements. This wide range of positions ensures compatibility with multiple device configurations, providing designers with the flexibility to implement the connector in both simple and complex electronic assemblies.

Durability is a key attribute of the FPC / FFC Connector, which is rated for up to 20,000 mating cycles. This exceptional endurance guarantees long-term reliability even in applications where frequent connecting and disconnecting are necessary. The high mating cycle count minimizes maintenance and replacement costs, contributing to the overall efficiency and cost-effectiveness of the electronic systems in which it is used.

Another significant advantage of this FFC Flexible Circuit Connector is the incorporation of advanced locking mechanisms, including ZIF (Zero Insertion Force) and LIF (Low Insertion Force) options. The ZIF mechanism allows for effortless insertion and removal of the flexible circuit without applying excessive force, thereby reducing the risk of damage to the delicate contacts and cables. On the other hand, the LIF mechanism provides a secure connection with minimal insertion force, striking a balance between ease of use and reliable contact retention. These locking options enhance the connector’s usability and protect the integrity of the flexible circuits.

The lock lever material used in the connector is PPS (Polyphenylene Sulfide), which complies with UL94V-0 flammability standards and RoHS regulations. This high-performance material offers excellent mechanical strength, thermal stability, and resistance to chemical exposure, ensuring that the connector maintains its integrity under demanding environmental conditions. Compliance with RoHS also reflects the manufacturer’s commitment to environmentally responsible production practices and helps customers meet regulatory requirements.

For customers interested in evaluating the FPC / FFC Connector for their specific applications, free samples are available. This allows engineers and designers to test the connector’s compatibility, performance, and ease of assembly before committing to large-scale production orders. Providing free samples demonstrates confidence in the product’s quality and facilitates a smoother integration process.

In summary, the FPC / FFC Connector combines versatility, durability, and advanced design features to deliver a reliable connection solution for flexible circuits. Its support for 2 to 50 pin positions, up to 20,000 mating cycles durability, ZIF and LIF locking mechanisms, and high-quality PPS locking material make it a standout choice in the market. Additionally, the availability of free samples ensures that customers can confidently adopt this FFC Flexible Circuit Connector in their projects with minimal risk. Whether used in consumer electronics, automotive systems, or other high-performance applications, this connector provides a dependable, efficient, and user-friendly interface for flexible circuit connections.

Features:

• Product Name: FPC / FFC Connector
• Contact Material: Copper Alloy / Phosphor Bronze
• Insulator Resistance: 500 Megohms Min.
• Durability: Up To 20,000 Mating Cycles
• Connector Type: ZIF / LIF
• Color Options: Gray / Black
• Suitable for Flat Flexible Cable Connector applications
• Ideal as a Flexible Printed Circuit Connector
• Provides a reliable Flexible Flat Cable Interface

Technical Parameters:

Applications:

The LP brand's LP-FPC036 model is a high-quality FPC Electronic Connector Type designed and manufactured in China, certified under ISO-9001:2000 standards. This connector is widely used in numerous application occasions and scenarios due to its reliable performance and versatile features. It is ideal for industries requiring flexible and compact interconnection solutions, including consumer electronics, automotive electronics, medical devices, and industrial equipment.

As a Flat Printed Cable Connector, the LP-FPC036 offers exceptional durability and ease of installation with its Surface Mount Technology (SMT) and Through Hole Technology (THT) mounting types. This flexibility allows it to be seamlessly integrated into various circuit board designs, making it suitable for both prototype development and mass production. The connector’s ZIF (Zero Insertion Force) and LIF (Low Insertion Force) locking mechanisms ensure secure and easy cable insertion and removal, which is essential in devices that demand frequent maintenance or upgrades.

In consumer electronics, the LP-FPC036 is commonly used to connect flexible printed circuits in smartphones, tablets, laptops, and wearable devices, where space constraints and reliability are critical. Its insulation materials, including Liquid Crystal Polymer (LCP) and Nylon 6T UL94V-0, comply with RoHS standards, providing excellent electrical insulation and flame retardant properties. This makes it suitable for applications requiring high safety standards and durability under various environmental conditions.

In automotive electronics, the connector supports high dielectric withstanding voltage of AC 500V, enabling it to perform reliably in harsh environments subject to vibrations, temperature fluctuations, and electrical noise. It is used in infotainment systems, dashboard modules, and advanced driver-assistance systems (ADAS) where flexible flat cable connections are essential.

Moreover, the LP-FPC036, as an FFC Flexible Flat Cable Connector, is favored in industrial automation and medical equipment for its stable electrical performance and ease of assembly. Its packaging options, including reels and tubes, facilitate efficient handling and automated assembly lines, supporting a minimum order quantity of 1000PCS and a supply ability of 100,000PCS. With a competitive price of $0.03 per unit and delivery time of 8 to 12 days, this connector meets both economic and logistical demands.

Payment terms such as T/T, Western Union, and L/C provide convenience for global customers, and free samples are available for evaluation before bulk purchase. Overall, the LP-FPC036 Flat Printed Cable Connector is a versatile and reliable component suitable for a wide range of electronic applications requiring robust, flexible, and easy-to-use connectivity solutions.

Customization:

Introducing the LP-FPC036, a high-quality FFC Cable Assembly Connector designed and manufactured by LP in China. This Flat Flexible Cable Connector is certified under ISO-9001:2000, ensuring reliable quality and performance for your electronic applications.

Our FPC Board to Board Connector offers excellent durability with a maximum processing temperature of 230°C for 30 to 60 seconds, and up to 260°C for 10 seconds, making it suitable for various soldering processes. The insulator resistance is rated at 500Megohms minimum, guaranteeing stable electrical performance.

The connector features a solder tab made of phosphor bronze and insulation materials including LCP (Liquid Crystal Polymer) and Nylon 6T UL94V-0, all compliant with RoHS standards. It operates efficiently within a temperature range of -40°C to +105°C.

We offer flexible packaging options including reels and tubes to meet your production needs. The minimum order quantity is 1000PCS with a competitive price of $0.03 per unit. Our supply ability reaches up to 100,000PCS with a delivery time of 8 to 12 days.

Payment terms are convenient and secure, accepting T/T, Western Union, and L/C. Choose LP's LP-FPC036 for your next project requiring a reliable Flat Flexible Cable Connector, FFC Cable Assembly Connector, or FPC Board to Board Connector.
