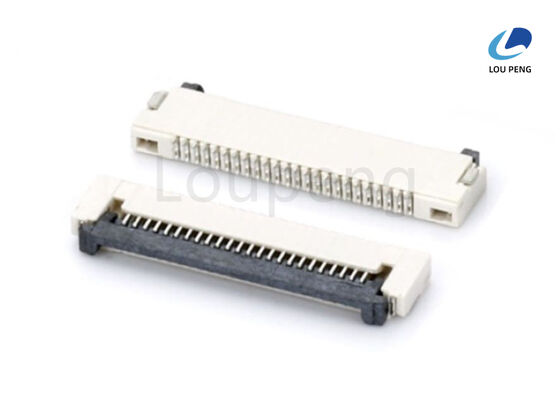

Max processing Temp 230°C For 30 60 Seconds FPC FFC Connector with Phosphor Bronze Solder Tab and SMT Through Hole Technology THT Mounting Types

Product Description:

The FPC / FFC Connector series is a highly reliable and versatile solution designed for connecting flexible printed circuits (FPC) and flexible flat cables (FFC) in a wide range of electronic applications. These connectors are engineered to provide excellent electrical performance and mechanical stability, making them ideal for use in consumer electronics, automotive systems, industrial equipment, and communication devices. With a focus on quality and precision, the FPC / FFC Connectors ensure secure and efficient connections that enhance the overall functionality of your electronic assemblies.

One of the standout features of this product line is its robust dielectric withstanding capability, rated at AC 500V. This high dielectric strength ensures that the connectors can reliably handle electrical stress and prevent insulation breakdown, which is critical for maintaining the integrity of signal transmission and power delivery in demanding environments. This makes the connectors suitable for applications where safety and durability are paramount.

The FPC / FFC Connectors come in multiple pitch options to accommodate various design requirements. Available pitches include 0.5mm, 1.0mm, 1.25mm, and 1.27mm, providing flexibility in layout and compatibility with different FFC and FPC sizes. These pitch variations enable engineers to select the most appropriate connector size based on space constraints and electrical performance needs, ensuring optimal integration within compact and complex circuit designs.

Another significant advantage of these connectors is the availability of both locking mechanisms: ZIF (Zero Insertion Force) and LIF (Low Insertion Force). The ZIF type allows for effortless insertion and removal of the flexible flat cables without applying excessive force, minimizing the risk of damage to the delicate cable contacts and the connector itself. This feature is especially beneficial during assembly and maintenance, as it simplifies the connection process and enhances reliability. The LIF type, on the other hand, provides a slightly higher insertion force but offers secure cable retention, making it suitable for applications where vibration or movement might otherwise compromise the connection.

These connectors are classified under the connector types ZIF and LIF, catering to diverse application needs and user preferences. Whether your project demands the gentle handling of cables with zero insertion force or a more secure fit with low insertion force, this product range has the appropriate connector type to meet those requirements. The choice between ZIF and LIF types ensures that designers can optimize their designs for ease of use, durability, and performance.

For those looking to evaluate the FPC / FFC Connector in their specific applications, free samples are available. This allows engineers and designers to test the connectors firsthand, ensuring compatibility and performance before committing to large-scale production. The availability of samples demonstrates the manufacturer's confidence in the product quality and their commitment to customer satisfaction.

In summary, the FPC / FFC Connector product line offers a comprehensive solution for reliable, efficient, and flexible connections in electronic devices. Featuring a high dielectric withstanding voltage of AC 500V, multiple pitch options (0.5mm, 1.0mm, 1.25mm, and 1.27mm), and locking mechanisms including ZIF and LIF, these connectors provide excellent adaptability and performance. Whether you need an FFC Flexible Circuit Connector, an FFC Cable Assembly Connector, or an FFC Flexible Flat Cable Connector, this product range delivers superior quality and functionality to meet your design and operational needs.

Features:

• Product Name: FPC / FFC Connector
• Insulation Material: LCP (Liquid Crystal Polymer) / Nylon 6T UL94V-0 RoHS compliant
• Current Rating: 0.5 Amps
• Plating Options: Gold Plating / Tin Plated
• Contact Material: Copper Alloy / Phosphor Bronze
• Connector Type: ZIF (Zero Insertion Force) / LIF (Low Insertion Force)
• Designed for FFC Flexible Flat Cable Connector applications
• Compatible with Flat Flexible Cable Connector systems
• Suitable for use as a Flat Printed Cable Connector

Technical Parameters:

Applications:

The LP-FPC035 series, manufactured by the reputable brand LP in China, is a highly reliable FPC Electronic Connector Type designed to meet the demanding requirements of modern electronic applications. Certified with ISO-9001:2000, this connector guarantees quality and performance consistency, making it an excellent choice for various industries. Available with a pitch of 0.5mm, 1.0mm, 1.25mm, and 1.27mm, and supporting 2 to 50 pins, the LP-FPC035 is versatile enough to accommodate diverse connection needs between flexible printed circuits and rigid boards.

This FFC Flexible Circuit Connector is ideal for applications that demand compact, lightweight, and highly durable connections. It supports both Surface Mount Technology (SMT) and Through Hole Technology (THT) mounting types, offering flexibility in PCB assembly processes. With a maximum processing temperature tolerance of 230°C for 30 to 60 seconds (and up to 260°C for 10 seconds), the LP-FPC035 ensures robust soldering reliability without compromising the connector’s integrity. Its contact resistance is kept at a maximum of 20 milliohms, ensuring stable and efficient signal transmission, which is crucial for sensitive electronic devices.

The LP-FPC035 is widely used as an FPC Board to Board Connector in various electronic products, including consumer electronics, automotive systems, medical devices, telecommunications equipment, and industrial control systems. For instance, in smartphones and tablets, it connects flexible circuit cables to the main circuit board, allowing for slim and flexible designs. In automotive applications, it ensures secure and vibration-resistant connectivity in infotainment systems and sensor modules. Medical devices benefit from its reliability in compact diagnostic equipment, while telecommunications gear utilizes it for high-density circuit connections.

With a minimum order quantity of 1000PCS and a competitive price of $0.03 per piece, the LP-FPC035 is suitable for mass production environments. The product is supplied in convenient packaging options such as reels or tubes, facilitating automated assembly lines and reducing handling damage. Delivery times range from 8 to 12 days, supported by flexible payment terms including T/T, Western Union, and L/C. The supply ability of 100,000PCS ensures that large-scale projects can be accommodated without delays.

In summary, the LP-FPC035 FPC Electronic Connector Type is an essential component for any application requiring reliable and efficient flexible circuit connections. Its adaptability as an FFC Flexible Circuit Connector and FPC Board to Board Connector makes it a preferred choice for engineers and manufacturers aiming to achieve high performance and durability in their electronic products.

Customization:

LP brand offers high-quality FPC / FFC Connector model LP-FPC035, designed and manufactured in China with ISO-9001:2000 certification. This product serves as an excellent FPC Board to Board Connector and FFC Cable Assembly Connector, ideal for various electronic applications.

The LP-FPC035 Flexible Printed Circuit Connector supports a current rating of 0.5 Amps and features reliable mounting options including Surface Mount Technology (SMT) and Through Hole Technology (THT). Its loeker material is made from PPS with UL94V-0 flame retardant rating and RoHS compliance, ensuring safety and environmental standards.

With a dielectric withstanding voltage of AC 500V and plating options of gold plating or tin plating, this connector guarantees durability and superior electrical performance. The product is packaged in reels or tubes to facilitate easy handling and efficient assembly processes.

LP-FPC035 connectors are available with a minimum order quantity of 1000PCS, priced at $0.03 per unit. We ensure a supply ability of up to 100,000PCS with a delivery time of 8 to 12 days. Payment terms include T/T, Western Union, and L/C, providing flexible options for our customers.

Choose LP’s FPC / FFC Connector LP-FPC035 for your next project requiring a reliable and cost-effective Flexible Printed Circuit Connector, FPC Board to Board Connector, or FFC Cable Assembly Connector solution.
