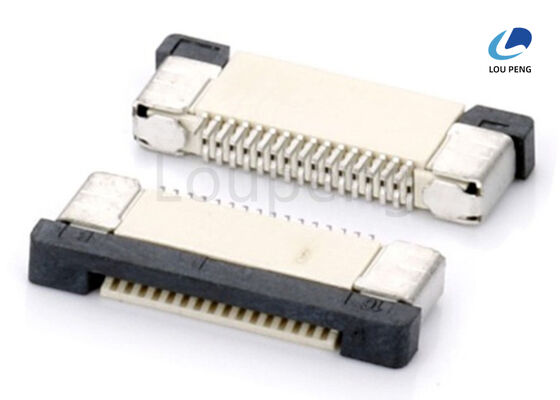

Insulator Resistance 500Megohms Min Flat Flexible Cable Connector Featuring LCP Liquid Crystal Polymer Nylon 6T UL94V0 RoHS Certification

Product Description:

The FPC / FFC Connector is an essential component designed to provide reliable and efficient connections in a wide range of electronic applications. This product serves as an FPC Electronic Connector Type, specifically engineered to connect flexible printed circuits (FPC) and flexible flat cables (FFC) with high precision and durability. Available in elegant gray and black color options, these connectors not only ensure excellent electrical performance but also offer versatility in design aesthetics to match various electronic devices and assemblies.

One of the key features of this FPC / FFC Connector is its flexibility in accommodating different connection requirements. It supports a number of positions ranging from 2 to 50 pins, making it suitable for simple two-pin connections as well as complex multi-pin configurations. This wide range of positions allows engineers and designers to select the most appropriate connector for their specific application, whether it involves compact consumer electronics or more sophisticated industrial equipment.

The mounting type of the FPC / FFC Connector is available in both Surface Mount Technology (SMT) and Through Hole Technology (THT). SMT connectors are ideal for applications where space-saving and automated assembly processes are critical, offering a low profile and efficient soldering on printed circuit boards (PCBs). On the other hand, THT connectors provide robust mechanical strength and are suitable for applications requiring enhanced durability and secure mounting in demanding environments. This dual mounting option enhances the adaptability of the connector across various manufacturing and operational needs.

Durability is a paramount attribute of this connector series. Designed to withstand up to 20,000 mating cycles, it guarantees long-lasting performance and reliability even in applications that demand frequent connecting and disconnecting. This high durability reduces the need for maintenance and replacement, ultimately contributing to lower operational costs and increased device longevity. The robust construction and precision engineering ensure that the FPC Ribbon Cable Connector maintains stable electrical contact and mechanical integrity throughout its lifecycle.

In addition to its technical specifications, the FPC / FFC Connector is user-friendly and accessible for prototyping and testing purposes. Samples of the connector are provided free of charge, allowing engineers and designers to evaluate the product’s compatibility and performance before committing to large-scale production. This sample availability facilitates smoother design validation processes and helps in making informed decisions during product development.

The FPC / FFC Connector is an ideal solution for connecting flexible circuits in various electronic devices, including mobile phones, laptops, digital cameras, medical equipment, automotive electronics, and more. As an FFC Flexible Circuit Connector, it ensures seamless data transmission, signal integrity, and power delivery in compact and flexible electronic assemblies. Its design supports easy insertion and removal of flexible cables, enhancing the overall usability and serviceability of electronic products.

In summary, the FPC / FFC Connector combines versatility, durability, and aesthetic appeal in a compact form factor. With color options in gray and black, a broad range of pin counts from 2 to 50 positions, and dual mounting technologies (SMT and THT), it caters to diverse electronic design requirements. The outstanding durability of up to 20,000 mating cycles ensures reliable long-term operation, while free sample availability supports efficient product development and testing. Whether used as an FPC Electronic Connector Type, FFC Flexible Circuit Connector, or FPC Ribbon Cable Connector, this product stands out as a dependable and flexible choice for modern electronic connectivity needs.

Features:

• Product Name: FPC / FFC Connector
• Contact Material: Copper Alloy / Phosphor Bronze
• Number Of Positions: 2 To 50 Pins
• Plating Options: Gold Plating / Tin Plated
• Available Colors: Gray / Black
• Current Rating: 0.5 Amps
• Designed for Flexible Flat Cable Interface applications
• High-quality FFC Flexible Flat Cable Connector for reliable connections
• Supports Flexible Flat Cable Interface for efficient signal transmission

Technical Parameters:

Applications:

The LP-FPC034, a premium product from the renowned brand LP, is a versatile FPC / FFC Connector designed to meet the demanding needs of modern electronic applications. Manufactured in China and certified under ISO-9001:2000, this connector guarantees high quality and reliability, making it an ideal choice for various product application occasions and scenarios.

One of the primary applications of the LP-FPC034 is in the assembly of FFC Cable Assembly Connectors. These connectors are essential in establishing secure and efficient electrical connections in devices where space is limited and flexibility is crucial. Their compatibility with pitches of 0.5mm, 1.0mm, 1.25mm, and 1.27mm allows for diverse design requirements, enabling seamless integration into compact electronic assemblies.

In addition, the LP-FPC034 excels as a Flexible Printed Circuit Connector, facilitating the connection of flexible circuits in consumer electronics, medical devices, and automotive systems. The use of high-quality contact materials such as copper alloy and phosphor bronze ensures excellent electrical conductivity and durability, while the dielectric withstanding capacity of AC 500V provides reliable insulation and safety under operational stress.

Another critical scenario where the LP-FPC034 shines is as an FPC Board to Board Connector. Its innovative locking mechanisms, including ZIF (Zero Insertion Force) and LIF (Low Insertion Force), allow for effortless mating and demating of connectors without damaging delicate circuits. The locker's PPS UL94V-0 RoHS compliant material further enhances safety by providing flame retardancy and environmental compliance, essential for industrial and consumer electronics applications.

Given its packaging options of reel or tubes and a supply ability of up to 100,000 pieces, the LP-FPC034 is well-suited for large-scale manufacturing environments. With a minimum order quantity of 1000PCS and competitive pricing at $0.03 per unit, it offers excellent value for manufacturers seeking reliable FPC / FFC connectors. Delivery times range from 8 to 12 days, supported by flexible payment terms including T/T, Western Union, and L/C, ensuring smooth procurement processes.

In summary, the LP-FPC034 is ideally suited for a broad range of application occasions including consumer electronics, telecommunications, automotive electronics, industrial controls, and medical equipment. Its robust design, diverse specifications, and compliance with international quality standards make it a preferred choice for engineers and manufacturers requiring dependable FFC Cable Assembly Connectors, Flexible Printed Circuit Connectors, and FPC Board to Board Connectors.

Customization:

Our LP brand FPC / FFC Connector, model number LP-FPC034, is a high-quality FFC Flexible Circuit Connector designed to meet diverse application needs. Manufactured in China and certified under ISO-9001:2000, this Flexible Printed Circuit Connector guarantees reliable performance and compliance with international standards.

We offer product customization services for the LP-FPC034, supporting a number of positions ranging from 2 to 50 pins to fit your specific requirements. The connector features insulation materials such as LCP (Liquid Crystal Polymer) and Nylon 6T UL94V-0 RoHS compliant, ensuring durability and safety. The contact materials include Copper Alloy and Phosphor Bronze, providing excellent electrical conductivity and corrosion resistance.

The LP-FPC034 FFC Flexible Circuit Connector supports locking mechanisms including ZIF (Zero Insertion Force) and LIF (Low Insertion Force) to facilitate easy and secure connections. With a minimum order quantity of 1000PCS and a competitive price of $0.03 per piece, we ensure both affordability and quality.

Packaging options include Reel and Tubes to protect the connectors during shipping and storage. Our supply ability reaches up to 100,000PCS, with a delivery time of 8 to 12 days after order confirmation. Payment terms are flexible, accepting T/T, Western Union, and L/C.

Samples are available free of charge to help you evaluate the product before placing a bulk order. Trust our LP-FPC034 Flexible Printed Circuit Connector to deliver excellent performance in your applications requiring FFC Flexible Circuit Connector solutions.

Support and Services:

Our FPC/FFC Connector product is designed to provide reliable and high-performance connections for flexible printed circuits and flat flexible cables. For technical support, please ensure you have the product model number and specifications ready to facilitate prompt assistance.

We offer comprehensive services including product selection guidance, application advice, and troubleshooting support to help you achieve optimal performance in your projects. Our technical team can assist with compatibility inquiries, installation instructions, and customization options.

To ensure the longevity and reliability of your FPC/FFC connectors, we recommend following proper handling procedures and adhering to the specified electrical and mechanical ratings. Detailed datasheets and application notes are available to guide you through best practices.

For advanced technical requirements, our engineers are available to collaborate on custom designs and solutions tailored to your specific needs. We are committed to providing continuous support throughout the product lifecycle to ensure your satisfaction and success.

Packing and Shipping:

Product Packaging:

Each FPC / FFC connector is carefully packaged to ensure protection during transportation and handling. The connectors are typically placed in anti-static bags to prevent electrostatic discharge (ESD) damage. These bags are then sealed and packed into sturdy cardboard boxes with adequate cushioning materials such as foam or bubble wrap to avoid mechanical damage.

For bulk orders, connectors may be packed in trays or reels depending on the customer's requirements. Each package is clearly labeled with product specifications, quantity, manufacturing date, and lot number to facilitate inventory management and traceability.

Shipping:

We offer multiple shipping options to meet our customers’ needs, including air freight, sea freight, and courier services. All shipments are handled with care to ensure timely and safe delivery to the destination.

Before shipping, each order undergoes a final quality inspection to confirm product integrity. Shipping documents such as the packing list, invoice, and certificate of conformity are provided with the shipment. Tracking information is shared with customers once the order has been dispatched.

We recommend customers specify any special shipping instructions or packaging requirements at the time of order to ensure full satisfaction.
