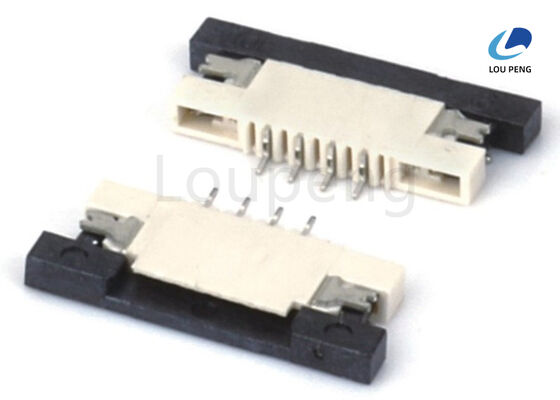

1.0mm Pitch FPC FFC Connector ZIF Type Tin Plated Flexible Flat Cable Connectors Providing Secure Electrical Connections

Product Description:

The FPC / FFC Connector is a high-quality Flat Printed Cable Connector designed to meet the demanding requirements of modern electronic applications. Engineered with precision and reliability in mind, this connector serves as an essential component in various electronic devices, ensuring secure and efficient connections between flat flexible cables and printed circuit boards. Available in multiple pitch options, it offers versatility and compatibility with a wide range of devices and designs.

One of the standout features of this Flat Flexible Cable Connector is its robust construction using premium Loeker material, specifically PPS (Polyphenylene Sulfide) rated UL94V-0. This material choice not only guarantees excellent flame retardancy and safety compliance but also contributes to the connector’s overall durability and longevity. The connector complies with RoHS standards, ensuring it is environmentally friendly and free from hazardous substances, aligning with global regulatory requirements.

The FPC Electronic Connector Type comes in a variety of pitch sizes, including 0.5mm, 1.0mm, 1.25mm, and 1.27mm. This range of pitch options allows for customizable applications, accommodating different cable thicknesses and circuit board layouts. Whether you require a fine-pitch connector for compact, high-density designs or a slightly larger pitch for easier handling and assembly, this product provides the flexibility needed to optimize your electronic assembly processes.

Color options for the connector include gray and black, giving manufacturers and designers the ability to match the connector aesthetically with their devices or to code different connections for easier identification during assembly and maintenance. The color choice does not compromise the connector's performance but adds an extra layer of customization and convenience.

Durability is a critical factor in the design of this Flat Printed Cable Connector. It boasts an impressive lifespan, rated for up to 20,000 mating cycles. This high durability ensures that the connector maintains reliable contact and signal integrity even after repeated connections and disconnections, making it ideal for applications where frequent maintenance or cable replacement is necessary. The long mating cycle life significantly reduces the risk of connection failure, thereby enhancing the overall reliability of the electronic device.

For engineers and designers looking to evaluate the performance and compatibility of this Flat Flexible Cable Connector in their projects, free samples are readily available. This allows for thorough testing and validation before committing to large-scale production, ensuring that the connector meets the specific needs of the application without unforeseen issues.

In summary, the FPC / FFC Connector represents a perfect blend of advanced material technology, versatile design options, and exceptional durability. Its compliance with stringent safety and environmental standards, combined with its wide range of pitch sizes and color options, makes it an ideal choice for a variety of electronic applications. Whether you are developing consumer electronics, automotive systems, or industrial equipment, this FPC Electronic Connector Type provides the reliable and efficient connectivity solution you need.

By choosing this Flat Printed Cable Connector, you invest in a product that delivers consistent performance, ease of use, and long-term reliability, all backed by the convenience of free sample availability for your development and testing purposes.

Features:

• Product Name: FPC / FFC Connector
• Type: Flat Printed Cable Connector, Flat Flexible Cable Connector, FPC Electronic Connector Type
• Durability: Up to 20,000 mating cycles
• Current Rating: 0.5 Amps
• Solder Tab Material: Phosphor Bronze
• Color Options: Gray / Black
• Maximum Processing Temperature: 230°C for 30 to 60 seconds, 260°C for 10 seconds

Technical Parameters:

Applications:

The LP-FPC033 Flexible Printed Circuit Connector, manufactured in China by the reputable brand LP, is an essential component designed for a wide range of application occasions and scenarios. Certified with ISO-9001:2000, this connector ensures high quality and reliability, making it ideal for industries requiring durable and precise electrical connections. With a minimum order quantity of 1000PCS and a competitive price of 0.03 per unit, it offers excellent value for mass production needs.

This Flexible Printed Circuit Connector is widely used in consumer electronics, automotive, medical devices, industrial equipment, and communication devices. Its robust design, featuring phosphor bronze solder tabs and options for gold plating or tin plating, guarantees superior conductivity and resistance to wear. The connector's durability of up to 20,000 mating cycles ensures long-lasting performance even in demanding environments, making it suitable for devices that undergo frequent assembly and disassembly.

The flat printed cable connector is perfect for applications that require compact, high-density connections where space saving is critical. Its slim profile and flexible design enable seamless integration into small electronic devices such as smartphones, tablets, laptops, and wearable technology. Additionally, the connector’s gray or black color options allow for aesthetic flexibility in product design.

Packaging options include reels and tubes, facilitating easy handling and automated assembly processes, which is beneficial for manufacturers aiming to streamline production. The delivery time of 8 to 12 days coupled with a supply ability of 100,000PCS ensures that large-scale projects can be fulfilled promptly. Payment terms are flexible, accepting T/T, Western Union, and L/C, accommodating various business preferences.

Furthermore, LP provides free samples of the LP-FPC033 Flexible Printed Circuit Connector, enabling engineers and designers to evaluate the product in their specific applications before committing to bulk orders. Whether used in intricate electronic assemblies or robust industrial machinery, this connector plays a crucial role in ensuring reliable electrical connections, enhancing overall device performance and longevity.

Customization:

Introducing the LP-FPC033 Flat Flexible Cable Connector, a high-quality FFC Flexible Circuit Connector designed and manufactured by LP in China. This product is certified under ISO-9001:2000, ensuring superior quality and reliability for your electronic applications.

Our LP-FPC033 model supports a current rating of 0.5 Amps and features a locking mechanism that includes both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) options, providing secure and easy connections. The connector is available with a pitch of 0.5mm, 1.0mm, 1.25mm, and 1.27mm, accommodating various design requirements.

With a number of positions ranging from 2 to 50 pins, the LP Flat Flexible Cable Connector offers great versatility for your projects. It operates efficiently within a temperature range of -40°C to +105°C, making it suitable for a wide range of environments.

We provide flexible packaging options including Reel and Tubes to meet your preferences. The minimum order quantity is 1000PCS, with a competitive price of $0.03 per piece. Our supply ability reaches up to 100,000PCS, ensuring timely fulfillment of your orders.

Delivery time is estimated between 8 to 12 days. Payment terms are convenient and include T/T, Western Union, and L/C, facilitating smooth transactions.

Choose the LP-FPC033 Flat Flexible Cable Connector for dependable performance and customization services tailored to your needs in FFC Flexible Circuit Connectors.

Support and Services:

Our FPC/FFC Connector product line is supported by comprehensive technical assistance and services designed to ensure optimal performance and customer satisfaction. We offer detailed product documentation, including datasheets, application notes, and design guidelines to help you integrate our connectors seamlessly into your projects.

Our experienced technical support team is available to provide expert advice on product selection, compatibility, and troubleshooting. Whether you need assistance with connector specifications, mating cycles, or signal integrity, we are here to help you find the best solutions.

We also provide customization services to meet unique application requirements, including tailored connector configurations and packaging options. Our quality assurance processes guarantee that each connector meets rigorous industry standards for reliability and durability.

For ongoing support, we offer training sessions and webinars to keep you updated on the latest advancements and best practices in FPC/FFC connector technology. Our commitment is to deliver not only high-quality products but also exceptional service to support your success.

Packing and Shipping:

Product Packaging:

Each FPC/FFC connector is carefully packaged in anti-static trays or tubes to prevent damage during handling and transportation. The connectors are then sealed in moisture-resistant bags to protect against humidity and contamination. Outer packaging consists of sturdy cardboard boxes labeled with product details, quantity, and handling instructions to ensure safe and efficient storage and identification.

Shipping:

We offer worldwide shipping with reliable carriers to ensure timely delivery. All shipments are carefully inspected and securely packed to minimize the risk of damage. Tracking information is provided for every order, allowing customers to monitor their shipment status. For bulk orders, customized shipping solutions and documentation support are available upon request.
