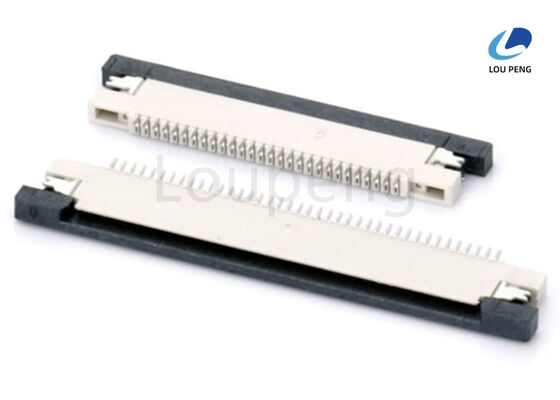

Contact Resistance 20max FPC Ribbon Cable Connector Featuring Dielectric Withstanding AC 500V Connection for Flexible Printed Circuits

Product Description:

The FPC / FFC Connector is a highly reliable and versatile component designed for connecting Flexible Flat Cables (FFC) and Flexible Printed Circuits (FPC) in various electronic applications. This FFC Flexible Circuit Connector is engineered to provide superior electrical performance, mechanical stability, and ease of use, making it an ideal choice for both consumer electronics and industrial devices. Its design caters to the growing demand for compact, lightweight, and high-density interconnect solutions in modern electronic assemblies.

One of the standout features of this FFC Flexible Circuit Connector is its exceptional insulator resistance, rated at a minimum of 500 Megohms. This high insulator resistance ensures excellent electrical isolation between contacts, minimizing leakage currents and enhancing signal integrity. This characteristic is particularly important in sensitive electronic circuits where maintaining clean and stable connections is critical for device performance and longevity.

The connector utilizes a loeker material made from PPS (Polyphenylene Sulfide), which complies with the UL94V-0 flammability rating and RoHS standards. PPS is known for its excellent mechanical strength, chemical resistance, and thermal stability, making it suitable for demanding operating environments. The UL94V-0 rating ensures that the connector material is flame retardant, enhancing safety in electronic devices. Compliance with RoHS directives also guarantees that the product is environmentally friendly and free from hazardous substances.

The FFC Flexible Circuit Connector is available in multiple pitch options, including 0.5mm, 1.0mm, 1.25mm, and 1.27mm. This range of pitch sizes allows for flexible design choices depending on the specific application requirements, such as space constraints and signal density. Whether the application demands ultra-fine pitch connectors for compact devices or slightly larger pitches for ease of assembly, this product range covers a broad spectrum of needs.

In terms of connectivity, the connector supports a number of positions ranging from 2 to 50 pins. This wide range of pin counts accommodates various circuit configurations, from simple two-pin connections to complex multi-pin arrangements. The flexibility in pin count makes this FFC Flexible Circuit Connector suitable for a diverse array of electronic devices, including smartphones, tablets, laptops, automotive electronics, and industrial equipment.

The connector type options include both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) designs. ZIF connectors are particularly advantageous for applications requiring frequent mating and unmating cycles since they allow cables to be inserted and removed without applying significant force, reducing wear and potential damage to the contacts. LIF connectors, on the other hand, provide a balance between secure connection and ease of assembly, ideal for applications where the cable is not frequently disconnected.

Designed as a Flexible Flat Cable Interface, this FFC Flexible Circuit Connector ensures a secure and stable connection between the flexible cable and the PCB or other electronic components. Its robust construction and precise contact alignment help maintain consistent electrical performance even under mechanical stress, vibration, or thermal cycling. The connector's compact footprint also supports high-density circuit designs, enabling manufacturers to save valuable board space without compromising on reliability.

Overall, the FPC / FFC Connector offers an excellent combination of electrical performance, mechanical durability, and user-friendly features. Its high insulator resistance, flame-retardant PPS material, varied pitch options, wide pin count range, and choice of ZIF or LIF types make it a versatile solution for a broad range of electronic interconnection needs. Whether used in consumer electronics, automotive systems, industrial machinery, or medical devices, this FFC Flexible Circuit Connector delivers dependable connectivity and long-term reliability.

Features:

• Product Name: FPC / FFC Connector
• Connector Type: ZIF / LIF
• Lockeer Material: PPS UL94V-0 RoHS compliant
• Durability: Up to 20,000 mating cycles
• Mounting Type: Surface Mount Technology (SMT) and Through Hole Technology (THT)
• Plating Options: Gold plating and Tin plating
• Designed for FPC Ribbon Cable Connector applications
• Provides reliable Flexible Flat Cable Interface
• Ideal for Flexible Flat Cable Interface connections

Technical Parameters:

Applications:

The LP-FPC032 FPC / FFC Connector, manufactured by LP in China, is a high-quality Flat Flexible Cable Connector designed to meet the rigorous demands of modern electronic applications. Certified with ISO-9001:2000, this connector ensures reliable performance and durability, making it an excellent choice for a wide range of product applications and scenarios.

One of the primary application occasions for the LP-FPC032 is in consumer electronics, where space-saving and flexible wiring solutions are essential. The FFC Cable Assembly Connector is widely used in devices such as laptops, tablets, smartphones, and digital cameras. Its compact size and efficient design allow seamless integration into tight spaces, ensuring stable electrical connections without compromising device aesthetics or functionality.

In industrial environments, the FFC Cable Assembly Connector by LP proves invaluable due to its robust contact materials—copper alloy and phosphor bronze—and a plating choice of gold or tin plating. These materials provide excellent conductivity and corrosion resistance, making the connector suitable for use in harsh conditions where reliability is critical. The connector’s capability to withstand a maximum processing temperature of 230°C for 30 to 60 seconds (and up to 260°C for 10 seconds) enables it to endure standard soldering processes, which is essential for mass production in manufacturing plants.

Automotive electronics also benefit from the LP-FPC032 Flat Flexible Cable Connector. Its low contact resistance of 20 milliohms max ensures minimal signal loss, which is vital for safety and infotainment systems within vehicles. The connector's gray or black color options provide versatility for design integration, aligning with various automotive interior designs.

Additionally, the LP-FPC032 is suitable for medical devices, where precision and reliability are paramount. The connector’s performance stability, combined with its ISO certification, guarantees compliance with stringent industry standards. This makes it ideal for medical imaging equipment, diagnostic devices, and wearable health monitors.

With a minimum order quantity of 1000PCS, a competitive price of 0.03 per piece, and efficient packaging options such as reels or tubes, the LP-FPC032 supports large-scale production demands. The delivery time of 8 to 12 days and flexible payment terms including T/T, Western Union, and L/C further enhance its appeal for manufacturers seeking dependable suppliers. LP’s supply ability of 100,000PCS ensures consistent availability to meet ongoing production needs.

In summary, the LP-FPC032 FFC Cable Assembly Connector is an ideal solution for applications requiring a reliable, high-performance Flat Flexible Cable Connector. Its versatility across consumer electronics, industrial equipment, automotive systems, and medical devices highlights its broad applicability in today's technology-driven world.

Customization:

Introducing the LP-FPC032, a high-quality Flat Printed Cable Connector manufactured by LP in China. This FFC Flexible Flat Cable Connector is designed with superior materials including Copper Alloy and Phosphor Bronze contacts, and insulation made from LCP (Liquid Crystal Polymer) or Nylon 6T UL94V-0 RoHS compliant materials, ensuring durability and reliability.

Our FFC Cable Assembly Connector boasts a low contact resistance of 20 max., providing excellent electrical performance. Certified with ISO-9001:2000, the LP-FPC032 meets rigorous quality standards. We offer a minimum order quantity of 1000PCS with competitive pricing at $0.03 per unit.

Packaging options include Reel or Tubes to suit your production needs. With a supply ability of 100,000PCS and delivery time ranging from 8 to 12 days, we ensure timely fulfillment of your orders. Payment terms accepted are T/T, Western Union, and L/C.

Samples of the LP-FPC032 are available for free, allowing you to evaluate the FFC Flexible Flat Cable Connector before committing to a larger order. Choose the LP-FPC032 for your ZIF or LIF connector requirements and experience exceptional quality and service.
