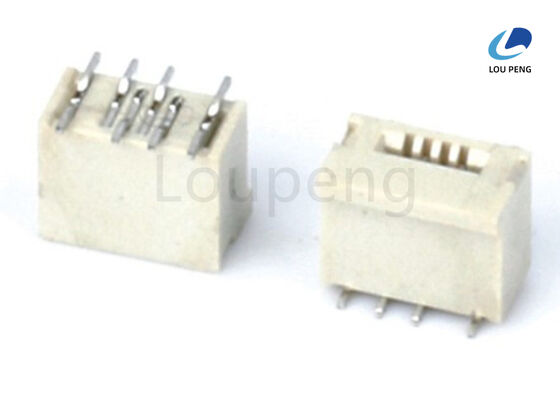

1.25mm Pitch FPC FFC Connector Operating Temp -40°C To 105°C Free Sample Supplied for Flexible Circuit Board Integration

Product Description:

The Flat Printed Cable Connector, commonly referred to as the FPC / FFC Connector, is a vital component in modern electronic assemblies, designed to provide reliable and efficient connections between flat printed cables and circuit boards. This connector is engineered to accommodate the unique requirements of flexible circuits, ensuring a secure and stable interface that supports a wide range of applications in consumer electronics, automotive systems, telecommunications, and industrial equipment.

One of the standout features of this FPC / FFC Connector is its impressive dielectric withstanding voltage of AC 500V. This attribute guarantees that the connector can safely operate in environments where high voltage insulation is critical, preventing electrical breakdowns and ensuring long-term reliability. The dielectric strength is a testament to the quality of materials and precise manufacturing processes employed in producing this connector, making it suitable for demanding electronic applications.

Available in two classic color options, gray and black, the connector offers versatility in design and integration. These colors not only enhance the visual appeal but also assist in easy identification and differentiation during assembly and maintenance. The choice between gray and black allows designers and engineers to match the connector with the overall aesthetic of their electronic devices or to comply with specific industry standards and requirements.

The FPC / FFC Connector is available in two primary connector types: Zero Insertion Force (ZIF) and Low Insertion Force (LIF). The ZIF connector type is particularly beneficial for applications requiring frequent mating and unmating cycles, as it significantly reduces the risk of damage to the flexible circuit and the connector itself. By allowing the cable to be inserted with minimal force, the ZIF design enhances the durability and lifespan of the connection. On the other hand, the LIF connector type provides a balance between secure connection and ease of assembly, making it ideal for applications where space constraints and moderate insertion forces are considerations.

Contact material is a critical aspect of any connector, and this FFC Flexible Circuit Connector excels in this regard by utilizing high-quality copper alloy and phosphor bronze. These materials are chosen for their excellent electrical conductivity, mechanical strength, and resistance to corrosion. The copper alloy ensures efficient signal transmission with minimal resistance, while the phosphor bronze contributes to the connector's resilience and longevity under repeated use. Together, these materials ensure that the connector maintains consistent performance over its operational life.

With a current rating of 0.5 Amps, this connector is well-suited for a variety of low-power electronic applications. It can effectively handle the electrical load required by most flexible circuit designs without overheating or compromising signal integrity. This current rating makes the connector a reliable choice for devices such as LCD displays, printers, digital cameras, and other compact electronic gadgets that rely on flexible circuits for their compact and lightweight designs.

In summary, the Flat Printed Cable Connector, or FFC Flexible Circuit Connector, offers a combination of high dielectric strength, versatile color options, robust connector types (ZIF and LIF), premium contact materials, and a practical current rating. These attributes collectively make it an indispensable component in the design and manufacture of flexible circuit assemblies. Whether you are developing consumer electronics, automotive systems, or industrial equipment, this connector provides the reliability, performance, and ease of use necessary to ensure your products meet the highest standards of quality and functionality.

Features:

• Product Name: FPC / FFC Connector
• Suitable for FPC Board to Board Connector applications
• Compatible with FFC Flexible Flat Cable Connector designs
• Ideal for FFC Cable Assembly Connector solutions
• Operating Temperature Range: -40°C to +105°C
• Locking Mechanism: ZIF (Zero Insertion Force) and LIF (Low Insertion Force) options available
• Solder Tab Material: Phosphor Bronze
• Plating Options: Gold Plating and Tin Plated
• Insulator Resistance: Minimum 500 Megohms

Technical Parameters:

Applications:

The LP-FPC031 FPC / FFC Connector, manufactured in China and certified with ISO-9001:2000, is a highly reliable and versatile component designed for various electronic applications. As an FPC Board to Board Connector, it is engineered to provide secure and efficient connections between flexible printed circuit (FPC) boards, ensuring optimal signal transmission and mechanical stability. With a contact resistance of 20 milliohms max, and contact materials made from high-quality copper alloy and phosphor bronze, this connector guarantees excellent conductivity and durability under demanding conditions.

This FPC Electronic Connector Type supports a wide range of mounting options, including Surface Mount Technology (SMT) and Through Hole Technology (THT), making it adaptable to various PCB assembly processes. The LP-FPC031 is available in configurations ranging from 2 to 50 pins, catering to diverse design requirements across multiple industries. Its gray or black color options enable seamless integration into different product aesthetics and functional layouts.

One of the primary application occasions for the LP-FPC031 is in consumer electronics such as smartphones, tablets, and wearable devices, where compact and reliable FPC Board to Board Connectors are essential for connecting display panels, touchscreens, and other flexible components. Additionally, this connector is widely used in automotive electronics for infotainment systems, dashboard displays, and advanced driver-assistance systems (ADAS), where robust and stable connections are crucial for safety and performance.

In industrial automation and medical devices, the LP-FPC031 serves as a dependable FPC Electronic Connector Type, facilitating connections in compact sensor modules, handheld diagnostic equipment, and control systems that demand high precision and reliability. The connector’s packaging options, including reels and tubes, support efficient manufacturing and assembly processes, while the supply ability of up to 100,000 pieces ensures steady availability for large-scale production.

With a minimum order quantity of 1000 pieces and a competitive price point of $0.03 per unit, the LP-FPC031 provides an economical yet high-quality solution for engineers and manufacturers. Delivery times range from 8 to 12 days, and flexible payment terms such as T/T, Western Union, and L/C accommodate various business needs. Overall, the LP-FPC031 FPC / FFC Connector is an ideal choice for applications requiring dependable, cost-effective, and high-performance FPC Board to Board Connectors.

Customization:

Introducing the LP-FPC031, a high-quality FPC Electronic Connector Type manufactured by LP, proudly made in China. This FFC Flexible Circuit Connector is designed to ensure reliable performance with a contact resistance of 20 max and an operating temperature range from -40°C to +105°C.

Certified with ISO-9001:2000, the LP-FPC031 guarantees superior quality and durability, capable of withstanding up to 20,000 mating cycles. Available in gray and black colors, it offers versatile plating options including gold plating and tin plating to suit various application needs.

As a premium FPC Board to Board Connector, the LP-FPC031 is supplied in packaging options such as reels and tubes to facilitate efficient handling and assembly. With a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, this connector is ideal for large-scale production.

Our supply ability reaches up to 100,000PCS, with a delivery time of 8 to 12 days, ensuring timely fulfillment of your orders. Payment terms are flexible, accepting T/T, Western Union, and L/C for your convenience.

Choose the LP-FPC031 FPC Electronic Connector Type for your next project and experience exceptional quality, durability, and reliable connectivity in your FPC and FFC applications.
