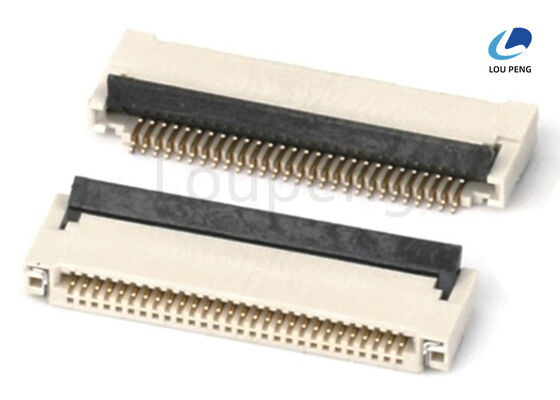

ZIF Connector Type FPC FFC Connector Offering AC 500V Dielectric Withstanding and Copper Alloy Contact Material for Signal Connectivity

Product Description:

The FPC / FFC Connector is a highly reliable and versatile component designed for use in a variety of electronic applications. This connector is specifically engineered to provide secure and efficient connections for FFC Flexible Circuit Connectors, FFC Flexible Flat Cable Connectors, and Flat Printed Cable Connectors. Its robust design and superior materials ensure optimal performance, making it an essential component in modern electronic devices where space-saving and reliable connections are critical.

One of the key features of this FPC / FFC Connector is its plating options, available in both Gold Plating and Tin Plated finishes. Gold plating provides excellent corrosion resistance and superior conductivity, ensuring a stable electrical connection even in demanding environments. Tin plating, on the other hand, offers a cost-effective solution with good solderability and adequate protection against oxidation. These plating options allow users to choose the best material based on their specific application requirements.

The connector supports a maximum processing temperature of 230°C for 30 to 60 seconds, and can withstand up to 260°C for short durations of 10 seconds. This thermal tolerance makes it compatible with various soldering processes, including reflow soldering, which is commonly used in automated assembly lines. Such thermal resilience ensures that the FFC Flexible Circuit Connector maintains its mechanical and electrical integrity during manufacturing, contributing to the overall reliability of the final product.

In terms of electrical performance, the FPC / FFC Connector features a contact resistance of 20 milliohms maximum. This low contact resistance is critical for ensuring efficient signal transmission and minimizing power loss across the connection. Additionally, the connector is rated for a current capacity of 0.5 Amps, making it suitable for low to moderate power applications commonly found in consumer electronics, automotive systems, and industrial equipment.

Another significant advantage of this product is the availability of free samples, allowing designers and engineers to evaluate its compatibility and performance in their specific applications before committing to large-scale purchases. This facilitates better decision-making and reduces the risk associated with new product integration.

The FPC / FFC Connector’s design accommodates various pitch sizes and cable thicknesses, offering flexibility to meet the diverse needs of different devices. It ensures a secure mechanical connection while allowing for easy insertion and removal of the FFC Flexible Flat Cable Connector, which is essential for maintenance and upgrades. The connector’s compact form factor also contributes to space-saving designs, which is increasingly important in today’s miniaturized electronic devices.

Overall, the FPC / FFC Connector stands out as a dependable and efficient solution for connecting flexible printed circuits and flat printed cables. Its combination of gold or tin plating, high thermal tolerance, low contact resistance, and moderate current rating makes it an excellent choice for a wide range of applications. Whether you are designing a new consumer gadget, automotive electronics, or industrial control system, this connector offers the performance and reliability needed to ensure seamless electrical connections and long-term durability.

In summary, the FFC Flexible Circuit Connector, FFC Flexible Flat Cable Connector, and Flat Printed Cable Connector provided by this product are engineered to meet stringent industry standards. With free samples available, excellent plating options, and robust electrical and thermal characteristics, this FPC / FFC Connector is an ideal component for modern electronic assemblies demanding precision, reliability, and flexibility.

Features:

• Product Name: FPC / FFC Connector
• Type: Flat Printed Cable Connector
• Interface: Flexible Flat Cable Interface
• Connector Type: Flat Flexible Cable Connector
• Sample: Free
• Contact Material: Copper Alloy / Phosphor Bronze
• Number Of Positions: 2 To 50 Pins
• Dielectric Withstanding Voltage: AC 500V
• Plating Options: Gold Plating / Tin Plated

Technical Parameters:

Applications:

The LP-FPC029, a high-quality Flexible Flat Cable Interface connector, is designed and manufactured in China under strict ISO-9001:2000 certification standards. This product is an ideal solution for a wide range of electronic applications that require reliable and efficient connections between flexible printed circuits and other components. With its excellent contact material made of copper alloy or phosphor bronze and plating options of gold plating or tin plated, the LP-FPC029 ensures superior conductivity and durability even in demanding environments.

One of the primary application occasions for the LP-FPC029 is in consumer electronics, where space constraints and flexibility are critical. Devices such as smartphones, tablets, laptops, and wearable gadgets frequently use Flexible Printed Circuit Connectors to maintain compact and lightweight designs. This connector’s operating temperature range from -40°C to +105°C allows it to perform reliably in both cold and hot environments, making it suitable for portable and outdoor electronic devices.

In automotive electronics, the LP-FPC029 FFC Flexible Circuit Connector plays a vital role in connecting various sensors, control modules, and display units. The automotive industry demands components that can withstand vibrations, temperature fluctuations, and mechanical stress, all of which are addressed by the robust construction and low contact resistance (20 max.) of this connector. Additionally, its availability in reel or tube packaging facilitates easy integration into automated assembly lines, enhancing manufacturing efficiency.

The LP-FPC029 is also widely used in industrial equipment and medical devices, where precision and reliability are paramount. Its flexible design allows for easy installation in tight or irregular spaces, and the free sample availability enables thorough testing and validation before large-scale orders. With a minimum order quantity of 1000PCS and competitive pricing at $0.03 per piece, this connector offers excellent value for both small and large production runs.

Furthermore, the LP brand ensures prompt delivery within 8 to 12 days and supports multiple payment terms including T/T, Western Union, and L/C. With a supply ability of 100,000PCS, customers can rely on consistent availability for ongoing projects. Overall, the LP-FPC029 Flexible Flat Cable Interface connector is a versatile and dependable choice for electronics manufacturers seeking high-performance Flexible Printed Circuit Connectors or FFC Flexible Circuit Connectors for diverse application scenarios.

Customization:

Introducing the LP-FPC029, a high-quality FPC / FFC connector proudly manufactured in China by the trusted brand LP. This product is ISO-9001:2000 certified, ensuring superior quality and reliability for your electronic applications.

Our FFC Flexible Flat Cable Connector offers a connector type of ZIF / LIF, with the capability to support 2 to 50 pins, making it versatile for various connection needs. The insulator resistance is rated at 500 Megohms minimum, guaranteeing excellent electrical insulation performance.

The LP-FPC029 supports both Surface Mount Technology (SMT) and Through Hole Technology (THT) mounting types, providing flexible installation options. The solder tab is made of phosphor bronze, enhancing durability and solderability.

We provide customization services with a minimum order quantity of 1000 PCS, priced competitively at $0.03 per unit. Packaging options include reels or tubes to suit your handling and assembly requirements. Our supply ability reaches up to 100,000 PCS, ensuring timely fulfillment of your orders.

Delivery time is typically 8 to 12 days, and we accept multiple payment terms, including T/T, Western Union, and L/C, to accommodate your convenience.

Whether you need an FFC Flexible Flat Cable Connector, FFC Flexible Circuit Connector, or FFC Cable Assembly Connector, the LP-FPC029 is designed to meet your high standards for performance and quality in flexible circuit connections.
