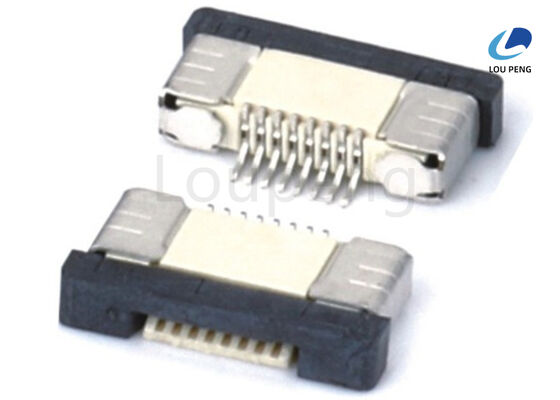

Dielectric Withstanding AC 500V FPC FFC Connector Sample Free Current Rating 0.5Amps Providing Electrical Connectivity

Product Description:

The FPC / FFC Connector is an essential component designed to provide reliable electrical connections in a variety of electronic applications. This connector is specifically engineered to accommodate FFC Flexible Circuit Connector requirements, ensuring seamless integration with flexible flat cables and flexible printed circuits. Its design delivers superior performance, making it an ideal choice for industries that demand precision and durability in their electronic interconnections.

One of the key attributes of this FPC Electronic Connector Type is its exceptionally low contact resistance, rated at a maximum of 20 milliohms. This low contact resistance ensures minimal signal loss and maintains the integrity of electrical transmissions, which is critical in high-speed and sensitive electronic devices. The consistent and stable connection provided by this connector enhances overall device reliability and performance.

Durability is another standout feature of this FFC Flexible Flat Cable Connector. It is engineered to withstand up to 20,000 mating cycles, significantly surpassing many standard connectors in terms of lifecycle longevity. This high durability makes the connector suitable for applications where frequent connecting and disconnecting are expected, such as in testing environments, consumer electronics, and industrial machinery. The robust construction ensures sustained performance even under repeated mechanical stress, reducing maintenance needs and replacement costs.

The FPC / FFC Connector supports multiple mounting types, including Surface Mount Technology (SMT) and Through Hole Technology (THT). This versatility allows manufacturers to select the most appropriate mounting method based on their specific PCB design and assembly requirements. SMT mounting facilitates compact and high-density circuit layouts, while THT mounting provides enhanced mechanical strength and stability, especially in environments subject to vibration or mechanical shock.

With a current rating of 0.5 Amps, this connector is well-suited for low-power electronic applications where efficient current handling is necessary without compromising safety or performance. This rating makes it an excellent choice for connecting flexible circuits in devices such as mobile phones, laptops, cameras, and other portable electronics, where space constraints and reliability are paramount.

Understanding the importance of product evaluation before mass production, the manufacturer offers free samples of the FPC / FFC Connector. This allows engineers and designers to thoroughly test and validate the connector in their specific applications, ensuring compatibility and performance meet their project requirements. The availability of free samples demonstrates the confidence in the product’s quality and encourages adoption across diverse electronic design projects.

In summary, the FPC / FFC Connector combines low contact resistance, exceptional durability, flexible mounting options, and adequate current handling in a compact, reliable package. Its design is optimized for use as an FFC Flexible Circuit Connector and as an FPC Electronic Connector Type, catering to the needs of modern electronic devices requiring flexible flat cable connectivity. By integrating this connector, manufacturers can achieve enhanced device reliability, simplified assembly processes, and reduced long-term maintenance costs. Whether used in consumer electronics, industrial equipment, or specialized electronic applications, this connector stands out as a high-quality solution for flexible circuit interconnections.

Features:

• Product Name: FPC / FFC Connector
• Connector Type: ZIF (Zero Insertion Force) / LIF (Low Insertion Force)
• Pitch Options: 0.5mm, 1.0mm, 1.25mm, 1.27mm
• Locking Mechanism: ZIF (Zero Insertion Force) and LIF (Low Insertion Force) available
• Number of Positions: Supports 2 to 50 pins
• Insulator Resistance: Minimum 500 Megohms
• Suitable for FFC Flexible Circuit Connector applications
• Compatible with FFC Cable Assembly Connector setups
• Ideal for use as a Flat Printed Cable Connector

Technical Parameters:

Applications:

The LP-FPC027 is a high-quality Flat Printed Cable Connector designed and manufactured by LP, a trusted brand originating from China. Certified under ISO-9001:2000 standards, this connector ensures reliability and superior performance in various electronic applications. With a locking mechanism available in both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) types, the LP-FPC027 provides secure and easy connections, making it ideal for delicate and precision-required assemblies.

This FPC Board to Board Connector is widely used across numerous industries where flexible flat cable interfaces are essential. Its construction from PPS material, rated UL94V-0 and RoHS compliant, guarantees durability, flame retardance, and environmental safety. The phosphor bronze solder tab enhances conductivity and longevity, ensuring stable signal transmission even in demanding conditions. With a pin count ranging from 2 to 50 positions, the LP-FPC027 offers versatile solutions for connecting circuit boards in compact and space-sensitive devices.

In consumer electronics, the LP-FPC027 is frequently employed in smartphones, tablets, laptops, and wearable devices, where thin and flexible connections are mandatory to maintain slim profiles and reliable performance. Its flexible flat cable interface allows for seamless integration between components without adding bulk or compromising flexibility. The connector's minimal insertion force reduces wear and tear during assembly and maintenance, extending product lifespan.

Automotive and industrial sectors also benefit from this connector's robust features. It is used in dashboard displays, infotainment systems, and various control modules, where vibration resistance and secure locking mechanisms are critical. The LP-FPC027’s compliance with industry standards and its ability to handle high volumes, with a supply capacity of 100,000PCS and a minimum order quantity of 1000PCS, make it suitable for mass production environments.

Additionally, the LP-FPC027 is packaged efficiently in reels or tubes to facilitate automated assembly lines. With a competitive unit price of 0.03 USD and delivery times between 8 to 12 days, this connector represents an excellent balance of cost-effectiveness and quality. Payment terms including T/T, Western Union, and L/C offer flexibility for international buyers. Free samples are also available, allowing engineers and designers to evaluate the product before large-scale procurement.

Overall, the LP-FPC027 Flat Printed Cable Connector is an indispensable component for applications requiring reliable, flexible, and compact board-to-board connections. Its robust design and versatile features make it a preferred choice for manufacturers seeking high-performance FPC connectors with assured quality and efficient supply chain support.

Customization:

Introducing the LP-FPC027, a high-quality FPC Board to Board Connector and FFC Flexible Flat Cable Connector designed for reliable and efficient electronic connections. Manufactured by LP in China, this connector model is certified under ISO-9001:2000, ensuring superior quality and performance.

The LP-FPC027 supports a number of positions ranging from 2 to 50 pins, making it versatile for various applications. It features a locking mechanism available in both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) types, providing secure and easy cable insertion and removal.

Constructed with copper alloy and phosphor bronze contact materials, the connector offers excellent conductivity and durability. The contacts are plated with gold or tin to enhance corrosion resistance and ensure a stable connection. The insulator resistance is rated at a minimum of 500 megohms, guaranteeing reliable insulation under various operating conditions.

With a supply ability of 100,000PCS and a minimum order quantity of 1000PCS, the LP-FPC027 is packaged carefully in reels or tubes to protect the connectors during transportation. The price is competitively set at $0.03 per unit.

The delivery time for orders is typically between 8 to 12 days. Payment terms accepted include T/T, Western Union, and L/C, providing flexibility for customers worldwide.

Whether you need an FPC Board to Board Connector or an FFC Flexible Flat Cable Connector, the LP-FPC027 offers a reliable, cost-effective solution that meets industry standards and your specific application requirements.
