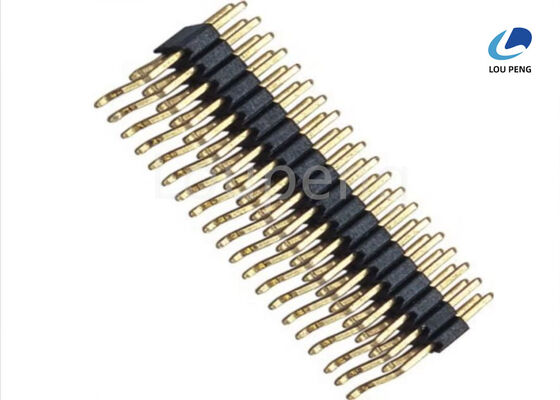

Operation Temperature Minus 65 Celsius To Plus 125 Celsius Pin Header Connector With Insulator LCP Nylon PA6T PBT Plus 30 Percent Glass Fiber UL94V0

Product Description:

The PIN Header Connector is a highly reliable and versatile component designed for various electronic applications. This connector is engineered to provide secure and stable connections on printed circuit boards (PCBs), making it an essential element in modern electronic assembly. Featuring a robust construction, the PIN Header Connector is available in multiple configurations, including Single Row Pin Connector and Female Pin Header Connector types, catering to diverse design requirements.

One of the critical aspects of the PIN Header Connector is its insulator material. It is manufactured using high-quality materials such as LCP (Liquid Crystal Polymer), Nylon, PA6T (Polyamide 6T), and PBT+30% Glass Fiber (PBT+30%G.F), all of which comply with the stringent UL94V-0 fire protection grade. This ensures that the connector exhibits excellent flame retardancy and safety during operation, making it suitable for use in environments where fire resistance is paramount.

The connector's plating options include Gold, Tin, and Nickel, offering flexibility depending on the application's electrical and environmental requirements. Gold plating provides superior corrosion resistance and excellent conductivity, ideal for high-frequency and precision applications. Tin plating is a cost-effective solution with good solderability, while Nickel plating adds mechanical strength and durability, protecting the pins from wear and oxidation over time.

The pins themselves are crafted from premium quality materials such as Phosphor Bronze and Brass. Phosphor Bronze is known for its excellent spring properties, high fatigue resistance, and good electrical conductivity, making it an ideal choice for connectors that require repeated mating cycles. Brass offers a balance of strength and conductivity, ensuring reliable performance in various operational conditions.

Designed to withstand a broad range of temperatures, the PIN Header Connector operates efficiently within an extensive temperature range from -65°C to +125°C. This wide operating temperature range ensures that the connector maintains its mechanical and electrical integrity even in harsh environments, including industrial, automotive, and aerospace applications.

The PCB Mount Pin Header variant of this connector is specifically designed for easy and secure mounting on printed circuit boards. This feature simplifies assembly processes and enhances the reliability of electronic devices by providing a stable electrical connection between components. The Single Row Pin Connector design offers a compact and straightforward layout, facilitating space-saving solutions in densely populated circuit boards.

Additionally, the Female Pin Header Connector option provides a complementary interface for male pins, enabling versatile mating configurations. This versatility allows engineers and designers to customize their electronic assemblies according to specific project needs, ensuring compatibility and ease of maintenance.

Overall, the PIN Header Connector is a crucial component that combines durability, safety, and adaptability. Its high-quality materials, excellent fire protection rating, diverse plating options, and wide operational temperature range make it suitable for a broad spectrum of applications. Whether you require a Single Row Pin Connector, Female Pin Header Connector, or a reliable PCB Mount Pin Header, this product delivers exceptional performance and longevity, meeting the demands of modern electronic designs.

Features:

• Product Name: PIN Header Connector
• Pin Material: Phosphor Bronze / Brass
• Insulator Options: LCP, NYLON, PA6T, PBT+30%G.F (UL94V-0)
• Dielectric Strength: 1000 V AC minimum
• Operation Temperature Range: -65°C to +125°C
• Processing Temperature: 260°C for 10 seconds
• Includes Male Pin Header Connector design
• Straight Pin Header Connector configuration
• Suitable for PCB Mount Pin Header applications

Technical Parameters:

Applications:

The LP brand Straight Pin Header Connector, model number LP-P068, is a highly reliable and versatile component designed for various electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this connector is ideal for both industrial and consumer electronics due to its superior quality and consistent performance. With a contact resistance of 20 milliohms maximum and insulation resistance of 1000M ohms minimum, it ensures excellent electrical conductivity and insulation, making it suitable for complex and precision PCB assemblies.

This Surface Mount Pin Header is widely used in the assembly of printed circuit boards (PCBs) in sectors such as telecommunications, automotive electronics, industrial machinery, and consumer gadgets. Its robust retention force of 700g minimum guarantees a secure connection, which is essential in environments subject to vibration or mechanical stress. The LP-P068 model is available with gold, tin, or nickel plating, providing options for enhanced corrosion resistance and conductivity depending on the specific application requirements.

Due to its adaptable packaging options, including reel, tube, tray, and polybag, the LP Straight Pin Header Connector is perfect for automated production lines, facilitating efficient pick-and-place operations. The product is supplied with a minimum order quantity of 1000PCS, making it suitable for both large-scale manufacturing and prototyping projects. Additionally, with a supply capacity of up to 1,000,000PCS and a competitive price point of just 0.0001 per piece, it offers excellent value for manufacturers looking to optimize their cost structure without compromising quality.

The PCB Mount Pin Header is designed to fit seamlessly into various PCB layouts, providing a reliable connection interface for modules, sensors, and other electronic components. Its packaging in carton boxes ensures safe shipping and handling, while delivery is prompt within 7 to 10 days. Payment terms are flexible, accepting T/T, Western Union, and L/C, accommodating diverse customer needs worldwide.

In summary, the LP-P068 Straight Pin Header Connector is ideal for occasions and scenarios requiring dependable and efficient PCB interconnections. Whether used in prototype development, mass production of consumer electronics, or industrial equipment assembly, its outstanding electrical and mechanical properties ensure optimal performance and longevity. The connector’s high retention force, low contact resistance, and multiple plating options make it an indispensable component in modern electronic device manufacturing.

Customization:

Introducing the LP-P068 Pin Header Connector, a versatile and reliable solution manufactured by LP in China. Certified with ISO-9001:2000, this product ensures high quality and consistent performance for your electronic applications.

Our Pin Header Connector is available in various pitch sizes including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, accommodating a wide range of design requirements. You can choose between Right Angle Pin Header and Surface Mount Pin Header configurations to best suit your PCB layout.

The LP-P068 model features a male gender design with a maximum contact resistance of 20 milliohms, ensuring excellent electrical conductivity. It can withstand a processing temperature of up to 260℃ for 10 seconds, making it suitable for various soldering processes.

Packaging options include Reel, Tube, Tray, and Polybag, all packed securely in carton boxes for safe delivery. We offer a minimum order quantity of 1000PCS with a competitive price of 0.0001 per unit and a supply ability of up to 1,000,000PCS.

Delivery time is typically between 7 to 10 days, and we accept multiple payment terms including T/T, Western Union, and L/C for your convenience. Trust LP to provide high-quality Pin Header Connectors tailored to your specific needs.

Support and Services:

Our PIN Header Connectors are designed to provide reliable and efficient electrical connections in a variety of applications. For technical support, please refer to the product datasheet and installation guidelines to ensure proper usage and compatibility with your system.

If you encounter any issues with the PIN Header Connectors, check for correct orientation, secure mating, and compatibility with the corresponding connectors. Inspect the pins for any signs of damage or corrosion that could affect performance.

We offer comprehensive services including customization options, product selection assistance, and installation support to help you achieve optimal results. Our engineering team is available to provide guidance on integration and troubleshooting to ensure seamless operation.

For maintenance, regularly inspect the connectors for wear and perform cleaning as recommended to maintain electrical integrity. Replacement parts and accessories are available to extend the life of your connector assemblies.

We are committed to delivering high-quality support and services to maximize the performance and reliability of your PIN Header Connector installations.

Packing and Shipping:

Our PIN Header Connector is carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent any electrostatic damage, followed by secure cushioning inside sturdy boxes to avoid physical damage.

We use high-quality packaging materials that comply with international shipping standards to guarantee the product arrives in perfect condition.

Shipping options include standard, expedited, and express delivery, with tracking available for all orders. We work with reliable carriers to provide timely and safe delivery worldwide.

For bulk orders, customized packaging solutions are available upon request to meet specific requirements.
