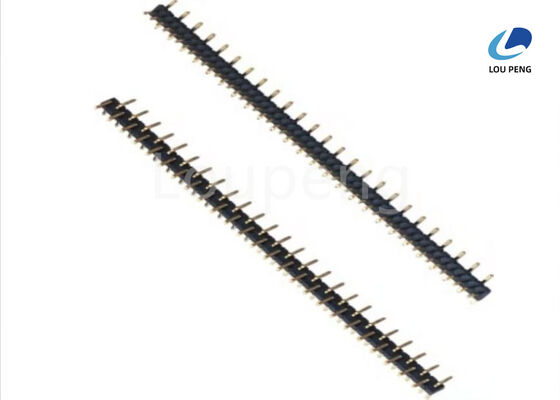

Operation Temperature Minus 65 Celsius To Plus 125 Celsius Pin Header Connector Offering Pin Numbers 2 To 40 Pins For Industrial Electronics

Product Description:

The Pin Header Connector is an essential component widely used in electronic assemblies for establishing reliable electrical connections between printed circuit boards (PCBs) and various electronic devices. Designed with precision and durability in mind, this connector is available in a variety of configurations, making it an ideal choice for both industrial and consumer electronics applications. Among its many advantages, the Pin Header Connector is notable for its versatility, robustness, and ease of installation, ensuring seamless integration into your PCB design.

One of the standout features of this Pin Header Connector is the availability of multiple plating options, including Gold, Tin, and Nickel. Each plating type offers distinct benefits to suit different application requirements. Gold plating provides superior corrosion resistance and excellent conductivity, making it ideal for high-reliability applications where signal integrity is critical. Tin plating offers a cost-effective solution with good solderability and protection against oxidation. Nickel plating delivers enhanced durability and wear resistance, ensuring long-lasting performance in demanding environments. These plating options allow users to select the most appropriate finish based on their specific needs, thereby enhancing the overall reliability and lifespan of the connection.

The Pin Header Connector is designed with a wide range of pin numbers, accommodating from as few as 2 pins up to 40 pins. This flexibility enables users to choose the precise configuration that matches their circuit requirements without compromising on space or functionality. Whether you need a simple two-pin connector for basic signal transmission or a more complex 40-pin connector for multi-channel communication, this product line covers a broad spectrum of applications. The varying pin counts also support scalability in design, allowing for future expansion or modification of electronic circuits with ease.

As a male connector, the Pin Header Connector features protruding pins that are intended to mate with female connectors or sockets. This gender specification is crucial for ensuring proper mating and secure connections in electronic assemblies. The male pins are engineered for reliable insertion and retention, minimizing the risk of disconnections due to vibration or mechanical stress. This makes the male Pin Header Connector particularly suitable for applications where stable and consistent electrical contact is paramount.

In addition to its excellent electrical and mechanical properties, the Pin Header Connector meets stringent fire safety standards, boasting a Fire Protection Grade of UL94V-0. This certification indicates that the connector’s housing material is highly flame-retardant, self-extinguishing within 10 seconds without dripping flaming particles. Such a rating is vital for maintaining safety in electronic devices, reducing the risk of fire hazards during operation or in the event of electrical faults. This compliance with UL94V-0 standards underscores the product’s suitability for use in environments where fire safety is a critical concern.

The manufacturing process of the Pin Header Connector involves a processing temperature tolerance of up to 260℃ for 10 seconds. This specification ensures that the connector can withstand the high temperatures typically encountered during soldering processes, particularly in surface mount technology (SMT) and wave soldering procedures used in PCB assembly. The ability to endure such thermal conditions without degradation guarantees reliable performance and longevity of the connector after assembly. This thermal resilience also facilitates efficient manufacturing workflows, allowing for rapid and consistent soldering without compromising the connector’s integrity.

Specifically designed as a PCB Mount Pin Header, this connector facilitates straightforward and secure mounting onto printed circuit boards. Its design supports Through Hole Pin Header configurations, where pins pass through drilled holes on the PCB and are soldered on the opposite side to establish strong mechanical and electrical bonds. This through-hole mounting technique is favored for its robust connection strength, making the Pin Header Connector ideal for applications that demand durability and resistance to mechanical stress. Whether in prototyping, small-scale production, or high-volume manufacturing, the Through Hole Pin Header design ensures optimal performance and ease of assembly.

In summary, the Pin Header Connector is a versatile, durable, and high-performance solution for establishing electrical connections on PCBs. With its range of plating options—Gold, Tin, and Nickel—varied pin counts from 2 to 40, male gender design, UL94V-0 fire protection rating, and ability to withstand processing temperatures of 260℃ for 10 seconds, it meets the stringent demands of modern electronic manufacturing. Its compatibility as a PCB Mount Pin Header and Through Hole Pin Header further enhances its applicability across numerous electronic applications, making it a trusted choice for engineers and manufacturers seeking quality and reliability in their connector components.

Features:

• Product Name: PIN Header Connector
• Current Rating: 1.0AMP or 3.0AMP
• Contact Resistance: 20 milliohms max
• Dielectric Strength: 1000 V AC min
• Pin Numbers: 2 to 40 pins available
• Insulator Materials: LCP, Nylon, PA6T, PBT+30% Glass Fiber (UL94V-0)
• Surface Mount Pin Header design for easy PCB mounting
• Male Pin Header Connector suitable for various electronic applications
• Dual Row Pin Header option for increased pin density and compact design

Technical Parameters:

Applications:

The LP brand PIN Header Connector, model number LP-P065, is a high-quality electronic component originating from China, designed to meet the demanding requirements of modern electronic assemblies. Certified under ISO-9001:2000, this connector guarantees reliability and performance, making it an excellent choice for various application occasions and scenarios. With a supply ability of 1,000,000PCS and a minimum order quantity of 1000PCS, the LP-P065 is suitable for large-scale manufacturing needs, ensuring consistent availability and competitive pricing at just 0.0001 per unit.

One of the prominent application occasions for the LP-P065 Pin Header Connector is in the production of printed circuit boards (PCBs) where secure and reliable electrical connections are essential. The connector supports pin numbers ranging from 2 to 40 pins, allowing flexibility for different design requirements. Its current rating options of 1.0AMP or 3.0AMP make it suitable for low to moderate power electronic devices. Additionally, the dielectric strength of 1000 V AC minimum and dielectric withstanding capacity of AC 500V ensure excellent insulation and safety in high-voltage environments.

The LP-P065 comes in various insulator materials such as LCP, Nylon, PA6T, and PBT+30% Glass Fiber (UL94V-0), which provide outstanding mechanical strength and flame retardancy. This makes the connector ideal for use in industrial electronics, automotive systems, consumer electronics, and communication devices. Specifically, the Female Pin Header Connector variant is widely used in applications requiring secure mating with male headers, enabling modular designs and easy maintenance.

In addition, the Dual Row Pin Header configuration offered by the LP-P065 model is favored in scenarios where compact and dense pin arrangements are needed without compromising electrical performance. This is particularly useful in embedded systems, computer hardware, and networking equipment where space optimization is critical. The packaging options, including reel, tube, tray, and polybag, facilitate efficient handling and integration into automated assembly lines, supporting fast delivery times of 7 to 10 days.

Payment terms such as T/T, Western Union, and L/C provide flexible purchasing options for businesses worldwide. Overall, the LP-P065 Pin Header Connector, with its robust features and versatile application scenarios, stands out as an essential component in the electronics manufacturing industry, ensuring reliable connectivity in a wide range of devices and systems.

Customization:

Introducing the LP brand Pin Header Connector, model number LP-P065, proudly made in China with ISO-9001:2000 certification. This Straight Pin Header Connector offers a reliable solution with contact resistance of 20 milliohms max, ensuring excellent electrical performance.

The Straight Pin Header Connector is available with pin numbers ranging from 2 to 40 pins, and plastics height options of 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 2.54mm to meet various design requirements. The connector is designed with a male gender configuration for versatile applications.

We offer flexible packaging options including reel, tube, tray, and polybag to suit your logistics needs. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per piece, our supply ability can reach up to 1,000,000PCS to support large-scale production demands.

Delivery time for the LP-P065 Straight Pin Header Connector is typically 7 to 10 days. Payment terms include T/T, Western Union, and L/C, providing convenient and secure transaction methods.

Choose our Straight Pin Header Connector for your next project to benefit from high quality, customizable options, and trusted performance backed by LP’s commitment to excellence.
