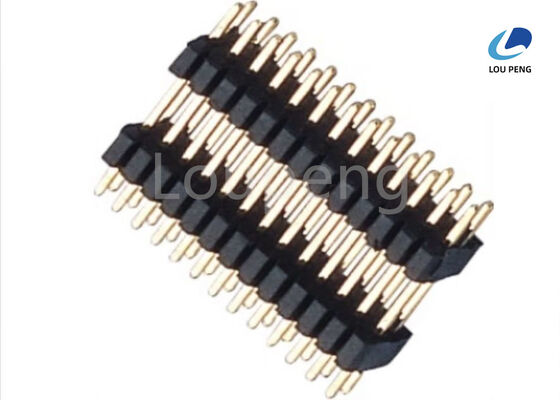

Processing Temperature 260C For 10 Seconds PIN Header Connector Featuring Various Plastics Height Choices and Durable Pin Material Phosphor Bronze Brass

Product Description:

The PIN Header Connector is an essential component widely used in electronic devices and PCB assemblies. Designed to facilitate secure and reliable connections on printed circuit boards, this connector is a versatile solution for various applications requiring efficient signal transmission and power delivery. Its robust construction and high-performance specifications make it an ideal choice for engineers and designers seeking dependable interconnect solutions.

One of the standout features of this PIN Header Connector is its low contact resistance, rated at a maximum of 20 milliohms (20M Ohms Max). This low resistance ensures minimal signal loss and efficient electrical conductivity, which is critical for maintaining signal integrity in complex electronic circuits. Such performance is particularly beneficial in high-frequency applications where maintaining signal clarity is paramount.

This connector is available with a current rating of either 1.0 AMP or 3.0 AMP, catering to a range of power requirements. Whether the application involves low-power signal transmission or higher current demands, the PIN Header Connector provides the necessary electrical capacity without compromising safety or performance. This flexibility makes it suitable for use in both consumer electronics and industrial equipment.

As a PCB Mount Pin Header, this connector is specifically designed to be mounted directly onto printed circuit boards. The through hole pin header design allows the pins to pass through the PCB and be soldered on the opposite side, ensuring a strong mechanical and electrical connection. This mounting style enhances the connector's stability and durability, making it capable of withstanding mechanical stresses during assembly and operation.

The Straight Pin Header Connector configuration of this product offers a straightforward and compact connection solution. The straight pins protrude perpendicularly from the PCB, facilitating easy mating with corresponding female connectors or sockets. This design is particularly useful in applications where space constraints and ease of access are important considerations.

Constructed with high-quality copper alloys for the contacts, the PIN Header Connector ensures excellent electrical conductivity and corrosion resistance. Copper alloys are known for their superior performance in electrical applications, providing a reliable pathway for current flow while maintaining the connector's longevity. The choice of materials reflects the product's emphasis on quality and durability.

In terms of mechanical durability, this PIN Header Connector is rated for up to 100 mating cycles. This durability rating indicates the connector’s ability to withstand repeated insertions and removals without degradation in performance. Such reliability is crucial in applications where connectors may need to be frequently disconnected and reconnected during maintenance or upgrades.

Overall, the PIN Header Connector combines robust electrical performance with mechanical resilience, making it a dependable component for a wide range of electronic applications. Whether used as a through hole pin header on a PCB or as a straight pin header connector in modular systems, it offers a secure and efficient connection solution. The integration of copper alloy contacts and the assurance of low contact resistance further enhance its appeal for high-quality electronic assemblies.

Engineers and designers looking for a reliable PCB Mount Pin Header will find this product meets stringent requirements for electrical and mechanical performance. Its versatility, combined with the ability to handle different current ratings and maintain durability over multiple cycles, makes it a smart choice for both prototyping and production environments. The PIN Header Connector’s blend of quality, performance, and ease of use ensures it remains a key component in modern electronic design.

Features:

• Product Name: PIN Header Connector
• Number of Pins: 2 to 40 Pins
• Packing: Carton Box
• Retention Force: 700g Minimum
• Pin Material: Phosphor Bronze / Brass
• Dielectric Strength: 1000 V AC Minimum
• Available as PCB Mount Pin Header
• Available as Surface Mount Pin Header
• Reliable and durable Pin Header Connector for various applications

Technical Parameters:

Applications:

The LP-P063 Pin Header Connector, manufactured by LP in China, is a versatile and reliable component designed for various electronic applications. With certification under ISO-9001:2000, this PCB Mount Pin Header ensures high quality and consistent performance. It is available in configurations ranging from 2 to 40 pins, accommodating different circuit design needs. The pitch options of 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm provide flexibility for diverse mounting requirements.

One of the primary application occasions for the LP-P063 Pin Header Connector is in printed circuit board (PCB) assemblies where space optimization and secure electrical connections are critical. The product supports both straight and Right Angle Pin Header configurations, making it ideal for applications where board-to-board or board-to-cable connections require angled positioning to fit compact or complex layouts.

These connectors are extensively used in consumer electronics, industrial machinery, automotive electronics, and communication devices. For instance, in consumer electronics such as laptops, tablets, and smartphones, the LP-P063 ensures stable connections between internal components. In industrial control systems, the high insulation resistance of 1000M Ohms minimum and low contact resistance of 20 milliohms max guarantee reliable signal transmission even in harsh environments.

The LP-P063 is also widely applied in prototyping and production environments where high volume and rapid delivery are essential. With a supply ability of 1,000,000 pieces and a minimum order quantity of 1000PCS, manufacturers can efficiently source these connectors. The price point of 0.0001 per piece makes it a cost-effective solution for large-scale production runs. Moreover, the packaging options including reel, tube, tray, and polybag facilitate automated assembly lines and inventory management.

Thanks to its robust construction, the LP-P063 Pin Header Connector can withstand processing temperatures up to 260℃ for 10 seconds, ensuring compatibility with standard soldering processes. Payment terms such as T/T, Western Union, and L/C make transactions flexible for global customers. Delivery within 7 to 10 days supports tight production schedules.

In summary, the LP-P063 PCB Mount Pin Header and Right Angle Pin Header connectors are ideal for applications requiring dependable electrical connections, compact design, and manufacturing efficiency. Their wide range of pin counts and pitch sizes make them suitable for everything from small electronic devices to large industrial systems, providing engineers and manufacturers with a trusted component to meet diverse project needs.

Customization:

LP brand offers the LP-P063 Male Pin Header Connector, a high-quality PCB Mount Pin Header designed for reliable electrical connections. Manufactured in China and certified with ISO-9001:2000, this Through Hole Pin Header ensures excellent performance with an insulation resistance of 5000 megaohms minimum.

The LP-P063 model supports a number of pins ranging from 2 to 40, with various pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm to suit diverse design requirements. The plastics height can be customized to 1.0mm, 1.5mm, 2.0mm, 2.5mm, or 2.54mm, providing flexibility for different PCB layouts and mounting needs.

With an operating temperature range from -65°C to +125°C, this Male Pin Header Connector is suitable for various industrial and electronic applications. The product is available in packaging options such as Reel, Tube, Tray, and Polybag, ensuring safe and convenient handling.

LP guarantees a supply ability of up to 1,000,000 pieces with a minimum order quantity of 1000PCS. The price is highly competitive at 0.0001 per piece. Delivery time is efficient, typically within 7 to 10 days.

Payment terms include T/T, Western Union, and L/C, making transactions smooth and secure. Customize your PCB Mount Pin Header and Through Hole Pin Header needs with LP’s LP-P063 model for dependable quality and service.

Support and Services:

Our Product Technical Support and Services for the PIN Header Connector include comprehensive assistance to ensure optimal performance and integration of our connectors in your applications. We provide detailed product specifications, application guidance, and troubleshooting support to help you select and implement the right connector solutions. Our technical team is available to assist with design-in support, including PCB layout recommendations and mechanical compatibility checks. Additionally, we offer customization services to meet specific requirements and ensure seamless connectivity in your projects. For any issues or inquiries related to the PIN Header Connector, we are committed to delivering prompt and effective solutions to support your success.

Packing and Shipping:

Our PIN Header Connector is carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent any electrostatic discharge damage. The connectors are then securely packed in sturdy cardboard boxes with cushioning materials to avoid any physical damage.

For shipping, we offer multiple options including standard, expedited, and overnight delivery to meet your needs. All shipments are tracked and insured for your peace of mind. We work with reliable carriers to ensure timely and safe delivery of your PIN Header Connector orders worldwide.
