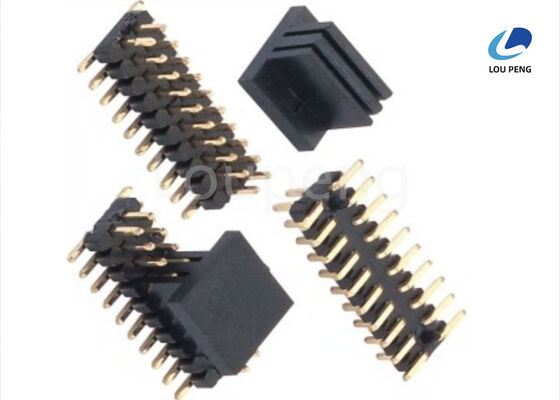

3.0AMP Through Hole Pin Header With Operation Temperature Range Minus 65 Celsius To Plus 125 Celsius Connector For Circuit Board

Product Description:

The Through Hole Pin Header is an essential component widely used in electronic circuits and devices to establish reliable electrical connections. Designed to accommodate a variable number of pins ranging from 2 to 40, this Pin Header Connector offers flexibility and versatility to suit different application requirements. Whether you are working on a small-scale project or a complex multi-pin assembly, this connector provides an efficient and robust interface for signal and power transmission.

Constructed from high-quality copper alloys, the contacts of the Through Hole Pin Header ensure excellent electrical conductivity and corrosion resistance. Copper alloys are known for their superior mechanical strength and durability, which contribute to maintaining stable connections even under demanding environmental conditions. This material choice guarantees long-term performance and reliability, making the Pin Header Connector an ideal choice for various industrial, automotive, and consumer electronics applications.

One of the critical performance parameters of this Through Hole Pin Header is its wide operating temperature range, which spans from -65°C to +125°C. This broad temperature tolerance allows the connector to function effectively in harsh environmental conditions, including extreme cold and high heat. Such capability makes it suitable for use in outdoor equipment, aerospace systems, and other applications where thermal stability and resistance to temperature fluctuations are crucial.

Durability is another significant advantage of this Pin Header Connector. It is rated for 100 mating cycles, ensuring that repeated connections and disconnections will not compromise its mechanical integrity or electrical performance. This durability rating confirms that the connector can withstand frequent use during prototyping, testing, or maintenance without degradation, thereby providing a cost-effective and reliable solution for engineers and technicians.

Electrical safety and insulation are paramount in connector design, and this Through Hole Pin Header excels with a dielectric withstanding voltage of AC 500V. This high dielectric strength ensures that the connector can resist electrical breakdown and prevent short circuits even under high voltage conditions. Consequently, it enhances the overall safety and reliability of the electronic system in which it is integrated.

The design of the Through Hole Pin Header facilitates easy and secure mounting onto printed circuit boards (PCBs) through its through-hole technology. This method involves inserting the pins through drilled holes in the PCB and soldering them to pads on the opposite side, creating a robust mechanical and electrical bond. The through-hole mounting approach provides superior mechanical stability compared to surface-mount alternatives, making it suitable for applications subject to mechanical stress or vibration.

In summary, the Through Hole Pin Header is a highly reliable and versatile Pin Header Connector that meets the demanding requirements of modern electronic assemblies. Its configurable pin count from 2 to 40 pins, copper alloy contacts, wide operating temperature range from -65°C to +125°C, and durability rated at 100 cycles make it a dependable choice for various applications. Additionally, the AC 500V dielectric withstanding capability assures safety and insulation integrity under high voltage conditions. Whether for industrial control systems, communication devices, or consumer electronics, this Through Hole Pin Header provides a proven solution for establishing durable and efficient electrical connections.

Features:

• Product Name: PIN Header Connector
• Available pitch options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Insulator materials: LCP, NYLON, PA6T, PBT+30% Glass Fiber (UL94V-0 rated)
• Current rating: 1.0 AMP or 3.0 AMP
• Contact material: High-quality copper alloys for excellent conductivity
• Durability: Rated for 100 mating cycles
• Includes Through Hole Pin Header designs for secure PCB mounting
• Available in Dual Row Pin Header and Single Row Pin Connector configurations

Technical Parameters:

Applications:

The LP-P062 PIN Header Connector, manufactured by the reputable brand LP in China, is an essential component widely used in various electronic applications. This product, certified under ISO-9001:2000, guarantees high quality and reliability, making it ideal for industries requiring durable and efficient connectors. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, it offers great value for bulk purchasers. The packaging options, including Reel, Tube, Tray, and Polybag, ensure safe and convenient handling, suitable for automated assembly lines.

This PIN Header Connector is designed to withstand a processing temperature of up to 260℃ for 10 seconds, making it highly suitable for soldering processes in electronics manufacturing. Its insulation resistance of 5000 megaohms minimum provides excellent electrical isolation, ensuring optimal performance in sensitive electronic circuits. The insulator materials, available in LCP, Nylon, PA6T, and PBT with 30% glass fiber (UL94V-0), contribute to the connector's robustness and flame retardant properties.

Durability is a critical feature of the LP-P062, with a rated durability of 100 cycles, which ensures long-lasting mechanical and electrical connections even under frequent mating and unmating conditions. The contact resistance is maintained at a maximum of 20 milliohms, ensuring minimal signal loss and reliable connectivity.

The LP-P062 series includes various configurations such as Right Angle Pin Header, Through Hole Pin Header, and Single Row Pin Connector, making it versatile for multiple PCB mounting requirements. These connectors are widely used in consumer electronics, industrial equipment, communication devices, and automotive electronics, where secure and stable connections are paramount.

Common application scenarios for the LP-P062 PIN Header Connector include circuit board interconnections in computers, networking hardware, and embedded systems. The right angle pin header is especially useful in space-constrained designs, allowing for compact and efficient layouts. The through hole pin header ensures strong mechanical bonding and is preferred in applications demanding high reliability and vibration resistance. The single row pin connector is often used in signal transmission lines and modular electronic assemblies.

With a supply ability of 1,000,000 pieces and a delivery time of 7 to 10 days, LP ensures timely fulfillment of orders. Payment terms such as T/T, Western Union, and L/C offer flexibility to global customers. Overall, the LP-P062 PIN Header Connector is a dependable choice for engineers and manufacturers seeking high-performance connectors for diverse electronic applications.

Customization:

Introducing the LP-P062 PIN Header Connector by LP, a premium product made in China and certified with ISO-9001:2000. This Male Pin Header Connector is available in configurations ranging from 2 to 40 pins, designed to meet diverse application needs.

Our Right Angle Pin Header and Straight Pin Header Connector options offer flexibility in design and installation, ensuring compatibility with various electronic components. With a dielectric strength of 1000 V AC minimum and dielectric withstanding voltage of AC 500V, these connectors provide reliable insulation and durability.

We offer customization services with a minimum order quantity of 1000PCS, priced competitively at 0.0001 per unit. Packaging options include Reel, Tube, Tray, and Polybag, all securely packed in carton boxes for safe delivery.

Our supply ability reaches up to 1,000,000PCS, with a delivery time of 7 to 10 days. Payment terms are flexible and include T/T, Western Union, and L/C to accommodate your preferences.

Choose LP's LP-P062 PIN Header Connectors for high-quality, customizable Male Pin Header Connectors, Right Angle Pin Headers, and Straight Pin Header Connectors that meet your exact specifications and ensure excellent performance in your electronic assemblies.
