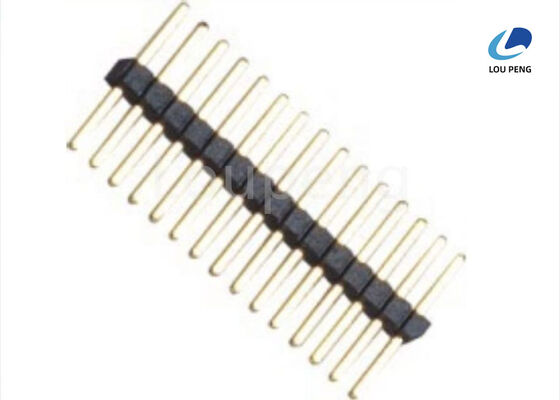

Contact Resistance 20 Milliohms Max Pin Header Connector Featuring Insulation Resistance 5000 Megaohms Min and Current Rating 1.0AMP or 3.0AMP for PCB Assembly

Product Description:

The Male Pin Header Connector is a vital component in electronic assemblies, providing reliable and secure connections between circuit boards and various electronic devices. Designed to meet stringent performance standards, this Pin Header Connector ensures superior electrical insulation, mechanical durability, and consistent contact integrity, making it an ideal choice for a wide range of applications including consumer electronics, industrial equipment, and communication devices.

One of the key features of this Pin Header Connector is its impressive insulation resistance, rated at a minimum of 1000M Ohms. This high insulation resistance guarantees minimal leakage current and excellent protection against electrical faults, ensuring that signals are transmitted cleanly and accurately without interference. Such a characteristic is crucial in maintaining the overall performance and reliability of electronic circuits, especially in environments with high electrical noise or where sensitive signal integrity is paramount.

In addition to its outstanding insulation resistance, the Male Pin Header Connector is designed to withstand high dielectric voltages. It possesses a dielectric withstanding voltage of AC 500V and a dielectric strength rating of 1000 V AC minimum. These properties enable the connector to endure high-voltage stress without breakdown or insulation failure, thereby enhancing the safety and longevity of the electronic system in which it is used. This makes the Pin Header Connector suitable for applications involving power electronics and other scenarios where voltage spikes or surges may occur.

The contact material used in this Pin Header Connector is high-quality copper alloys, which are renowned for their excellent electrical conductivity and corrosion resistance. Copper alloys provide a dependable electrical pathway with minimal resistance and signal loss, ensuring efficient transmission of electrical signals. Moreover, copper's durability contributes to the connector's long service life, even under repeated mating and unmating cycles. This robust contact design is essential for maintaining stable and consistent connections in demanding operational conditions.

Mechanical retention is another critical aspect of the Male Pin Header Connector. The connector boasts a retention force of at least 700 grams, ensuring that it remains securely mated to its counterpart during use. This strong retention force prevents accidental disconnections caused by vibrations, mechanical shocks, or handling, which are commonplace in many electronic systems. The reliable retention also facilitates easy and secure assembly, providing peace of mind to engineers and technicians working with the connector in various environments.

The versatility of this Pin Header Connector is further underscored by its compatibility with a wide range of printed circuit boards (PCBs) and electronic components. Its standardized pin spacing and form factor make it an excellent choice for both prototype development and mass production. Additionally, the Male Pin Header Connector supports easy integration into automated assembly processes, enhancing manufacturing efficiency and reducing overall production costs.

In summary, the Male Pin Header Connector delivers exceptional electrical insulation with a minimum insulation resistance of 1000M Ohms, robust dielectric properties including AC 500V withstanding voltage and 1000 V AC dielectric strength, and reliable copper alloy contacts that ensure optimal conductivity and durability. The connector’s strong retention force of 700 grams guarantees secure mechanical engagement, making it a dependable component for a multitude of electronic applications. Whether used in consumer gadgets, industrial machinery, or communication equipment, this Pin Header Connector stands out as a high-performance, reliable solution for establishing and maintaining critical electrical connections.

Features:

• Product Name: PIN Header Connector
• Pin Numbers: 2 To 40 Pins
• Dual Row Pin Header and Right Angle Pin Header options available
• PCB Mount Pin Header suitable for various applications
• Dielectric Strength: 1000 V AC minimum
• Contact Material: Copper Alloys for reliable conductivity
• Insulator Materials: LCP, Nylon, PA6T, and PBT with 30% Glass Fiber (UL94V-0 rated)
• Processing Temperature: 260℃ for 10 seconds

Technical Parameters:

This PCB Mount Pin Header, also known as a Pin Header Connector or Through Hole Pin Header, is designed to offer reliable electrical connections with durable materials and precise specifications.

Applications:

The LP-P061 PIN Header Connector, proudly manufactured in China by the reputable brand LP, is a versatile and reliable component designed for various electronic applications. As a Through Hole Pin Header, this connector offers robust mechanical stability and excellent electrical performance, making it ideal for both industrial and consumer electronics. With a wide range of pin configurations available, from 2 to 40 pins, the Male Pin Header Connector can be customized to meet specific connectivity requirements.

This product is certified under ISO-9001:2000, ensuring high quality and consistency in every batch. The use of copper alloys for the contacts, combined with plating options such as gold, tin, or nickel, guarantees superior conductivity and corrosion resistance. These features make the LP-P061 through hole pin header an excellent choice for applications that demand reliable signal transmission and durability under varying environmental conditions, including operation temperatures ranging from -65°C to +125°C.

Typical application scenarios for the LP-P061 Male Pin Header Connector include PCB mounting in consumer electronics, industrial automation systems, telecommunications equipment, and automotive electronics. Its through hole design enhances solder joint strength, which is crucial in environments subject to mechanical stress or vibration. The product's compatibility with multiple packaging options such as reel, tube, tray, and polybag facilitates efficient assembly line integration and inventory management.

With a supply capacity of 1,000,000 pieces and a minimum order quantity of 1000PCS, the LP-P061 is well-suited for large-scale manufacturing projects. The competitive pricing at 0.0001 per piece, along with flexible payment terms including T/T, Western Union, and L/C, enables businesses to optimize cost-efficiency and procurement convenience. The delivery time of 7 to 10 days ensures timely fulfillment of orders, supporting tight production schedules.

In summary, the LP-P061 Through Hole Pin Header is an essential component for designers and engineers seeking a durable, high-performance Male Pin Header Connector. Its robust construction, wide operating temperature range, and compliance with stringent quality standards make it the preferred choice for a broad spectrum of electronic assembly applications, from prototyping to mass production.

Customization:

Introducing the LP-P061 PIN Header Connector by LP, a high-quality PCB Mount Pin Header designed for reliable performance and durability. Manufactured in China and certified with ISO-9001:2000, this Through Hole Pin Header ensures exceptional standards in every unit.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per piece, the LP-P061 is ideal for large-scale production needs. It offers flexible packaging options including Reel, Tube, Tray, and Polybag to suit your logistics requirements.

Featuring Dual Row Pin Header configuration, this connector boasts excellent durability rated at 100 cycles and superior contact quality made from copper alloys. It withstands a dielectric voltage of AC 500V and maintains insulation resistance of 1000M Ohms minimum, ensuring stable electrical performance.

The LP-P061 supports a processing temperature of up to 260℃ for 10 seconds, making it suitable for various soldering processes. With a supply ability of 1,000,000PCS and a delivery time of 7 to 10 days, it guarantees timely fulfillment of your orders.

Convenient payment terms are accepted including T/T, Western Union, and L/C, providing you with flexible financial options. Choose the LP-P061 PIN Header Connector for your PCB Mount, Through Hole, and Dual Row Pin Header needs, and experience quality and reliability in every connection.

Support and Services:

Product Technical Support and Services for the PIN Header Connector include comprehensive assistance to ensure optimal performance and integration of the product. Our support team offers expert guidance on product selection, application advice, and troubleshooting to address any technical issues you may encounter. We provide detailed documentation, including datasheets, application notes, and installation guides to facilitate proper usage. Additionally, we offer customized solutions and engineering support to meet specific project requirements. Our services also cover reliability testing, compliance verification, and lifecycle management to ensure long-term product success. For any technical inquiries or service requests, our dedicated support personnel are ready to assist you throughout the product lifecycle.

Packing and Shipping:

Our PIN Header Connector is carefully packaged to ensure maximum protection during transit. Each connector is securely placed in anti-static bags to prevent any electrostatic discharge damage. The connectors are then organized in sturdy, cushioned boxes to avoid any physical damage.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. Multiple packaging layers are applied for bulk orders to further safeguard the products. We also offer customized packaging solutions upon request to meet specific requirements.

Whether shipping domestically or internationally, we prioritize the safe arrival of our PIN Header Connectors to ensure customer satisfaction and product integrity.
