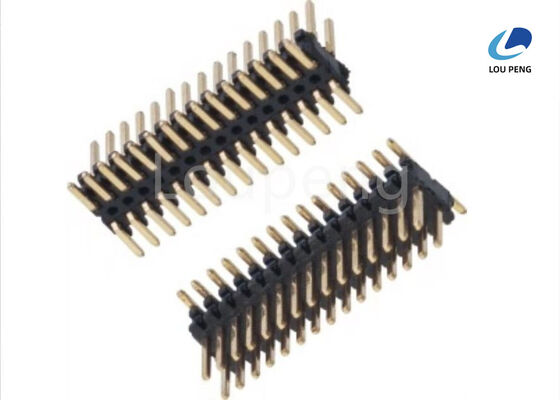

Plastics Height 2.0mm Surface Mount Pin Header Featuring Phosphor Bronze Pins Designed for Electronic Circuit Integration

Product Description:

The PIN Header Connector is an essential component widely used in electronic assemblies for establishing reliable and efficient electrical connections on printed circuit boards (PCBs). Designed to meet the demanding requirements of modern electronic devices, this connector is ideal for various applications, including industrial equipment, consumer electronics, communication devices, and more. Available in configurations ranging from 2 to 40 pins, the PIN Header Connector offers versatile options to accommodate different circuit designs and connectivity needs.

One of the standout features of this product is its robust contact construction. The contacts are made from high-quality copper alloys, ensuring excellent electrical conductivity and durability. Copper alloys are well-known for their superior performance in minimizing resistance and maintaining signal integrity, which is crucial for the reliable operation of electronic circuits. The PIN Header Connector boasts a contact resistance of just 20 milliohms maximum, which guarantees minimal voltage drop and efficient current flow across connections.

The retention force of the connector is another important attribute that highlights its reliability. With a minimum retention force of 700 grams, the PIN Header Connector ensures a secure and stable fit between the male and female components, preventing accidental disconnections or loosening due to vibrations or mechanical stress. This feature is particularly beneficial in environments where devices are subjected to frequent movement or harsh conditions, as it enhances the overall durability and longevity of the connection.

This connector series includes the popular PCB Mount Pin Header and Female Pin Header Connector variants, catering to different mounting and interfacing requirements. The PCB Mount Pin Header is designed for direct insertion and soldering onto the PCB, providing a compact and solid connection point for external cables or other connectors. On the other hand, the Female Pin Header Connector serves as a receptacle that mates with the male pin header, offering a secure and detachable interface that facilitates easy assembly, maintenance, and upgrades.

The PIN Header Connector’s versatility extends beyond its electrical and mechanical properties. It is thoughtfully packaged in carton boxes, which provide adequate protection during shipping and storage. This packaging method not only safeguards the connectors from physical damage and contamination but also helps in organized handling and inventory management, especially for bulk orders or large-scale manufacturing processes.

In addition to its technical specifications, the PIN Header Connector is designed with ease of use and compatibility in mind. Its standardized pin spacing and dimensions ensure seamless integration with a wide range of PCBs and complementary connectors. Whether you need a small 2-pin connector for a simple signal line or a 40-pin connector for complex multi-signal interfaces, this product line offers the flexibility and performance required for diverse electrical connection applications.

Overall, the PIN Header Connector is a reliable, high-quality solution for electronic designers and engineers seeking durable and efficient connectors for their PCB assemblies. Its combination of copper alloy contacts, low contact resistance, strong retention force, and wide pin count options makes it an excellent choice for various electronic projects. Whether used as a PCB Mount Pin Header or a Female Pin Header Connector, this product ensures stable and consistent connections, contributing to the optimal performance and longevity of your electronic devices.

Features:

• Product Name: PIN Header Connector
• Operation Temperature Range: -65°C to +125°C
• Number of Pins: 2 to 40 Pins
• Available Types: Vertical, Right Angle Pin Header, SMT, Single Row Pin Connector, Double Row, Three Rows
• Pin Material Options: Phosphor Bronze, Brass
• Current Rating: 1.0 AMP or 3.0 AMP

Technical Parameters:

Applications:

The LP-P060 PIN Header Connector, manufactured by LP in China, is a highly versatile and reliable component designed for various electronic applications. Certified under ISO-9001:2000, this PCB Mount Pin Header ensures superior quality and performance, making it an ideal choice for electronic manufacturers and engineers. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, it offers excellent value for large-scale production needs. The connector is supplied with flexible packaging options including Reel, Tube, Tray, and Polybag, catering to different handling and storage preferences.

This Through Hole Pin Header is widely used in scenarios requiring secure and stable electrical connections on printed circuit boards. Its copper alloy contacts, plated with gold, tin, or nickel, provide exceptional conductivity and corrosion resistance. The LP-P060 model can withstand a processing temperature of 260℃ for 10 seconds, ensuring durability during soldering processes. Its dielectric strength of 1000 V AC minimum and contact resistance of 20 milliohms maximum guarantee reliable electrical performance even in demanding environments.

In practical applications, the PCB Mount Pin Header is essential in industries such as consumer electronics, automotive, telecommunications, and industrial machinery. It is commonly used in the assembly of motherboards, control panels, and communication devices, where precise and robust connections are critical. The Through Hole Pin Header design facilitates easy mounting and strong mechanical support, making it suitable for devices subjected to vibration or mechanical stress.

The LP brand’s LP-P060 PIN Header Connector is also favored in prototyping and custom electronics projects due to its ease of installation and compatibility with standard PCB layouts. With a supply ability of up to 1,000,000PCS and a delivery time of just 7 to 10 days, manufacturers can rely on timely availability to meet production schedules. Payment terms such as T/T, Western Union, and L/C provide flexibility for global buyers.

Overall, the LP-P060 PCB Mount Pin Header is an indispensable component for engineers and manufacturers seeking dependable pin header connectors that combine electrical efficiency, mechanical reliability, and cost-effectiveness across various application occasions and scenarios.

Customization:

Our PIN Header Connector product, model number LP-P060 from the trusted LP brand, offers exceptional customization services tailored to meet your specific requirements. Manufactured in China and certified under ISO-9001:2000, this connector guarantees high quality and reliability.

We provide a wide range of options including Single Row Pin Connector, Male Pin Header Connector, and Surface Mount Pin Header types. You can choose from Vertical, Right Angle, SMT configurations in Single Row, Double Row, or Three Rows to perfectly fit your application.

The PIN Header Connector features pins made of high-quality Phosphor Bronze or Brass, with the number of pins ranging from 2 to 40. It offers excellent insulation resistance of 5000 megaohms minimum and can operate reliably within a temperature range of -65°C to +125°C.

Our supply ability is robust with up to 1,000,000PCS available, and a minimum order quantity of 1000PCS to accommodate both small and large scale production needs. Pricing starts at an attractive rate of 0.0001 per piece.

Packaging options include Reel, Tube, Tray, and Polybag to ensure safe delivery and easy handling. Delivery time is efficient, typically between 7 to 10 days, with flexible payment terms including T/T, Western Union, and L/C.

Choose our LP-P060 PIN Header Connector for your next project and benefit from comprehensive customization services that combine quality, versatility, and prompt delivery.
