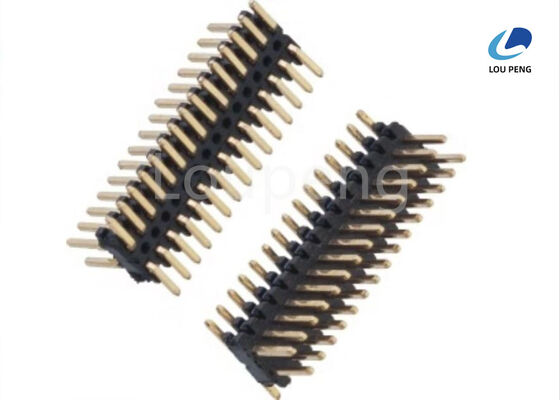

Copper Alloys PIN Header Connector Male 2 To 40 Pins Durable Electrical Connection Solutions for Industrial Applications

Product Description:

The Pin Header Connector is a versatile and reliable component widely used in electronic devices and circuit boards to establish secure and efficient electrical connections. Designed with precision and high-quality materials, this connector ensures optimal performance in various applications, ranging from consumer electronics to industrial equipment. The Pin Header Connector series offers a robust solution for both prototyping and mass production, meeting stringent industry standards for durability and electrical integrity.

One of the key features of this Pin Header Connector is its insulator material options, which include LCP (Liquid Crystal Polymer), Nylon, PA6T, and PBT with 30% glass fiber reinforcement (PBT+30%G.F). These materials provide exceptional mechanical strength, thermal stability, and excellent resistance to wear and chemical exposure. Moreover, all insulator variants conform to the UL94V-0 fire protection grade, ensuring that the connector meets critical safety and flammability requirements essential for modern electronic components.

The connector is designed as a male gender component, making it suitable for mating with female connectors or sockets in a wide range of electronic assemblies. The male pins provide sturdy and reliable electrical contacts, minimizing the risk of signal loss or connection failure. The contact resistance of the Pin Header Connector is guaranteed to be a maximum of 20 milliohms, which contributes to maintaining high signal integrity and reducing power losses across the connection interface.

In terms of physical dimensions, the Pin Header Connector is available in various plastics heights, including 1.0mm, 1.5mm, 2.0mm, 2.5mm, and the standard pitch of 2.54mm. This range of heights offers flexibility to designers and engineers, allowing them to select the appropriate connector size that fits their PCB layout and mechanical constraints. The different plastics heights also help accommodate various mounting and stacking requirements in complex electronic device assemblies.

The Surface Mount Pin Header variant of this connector is specifically engineered for surface mounting technology (SMT), enabling efficient and automated assembly processes. Surface mount Pin Header Connectors are ideal for applications where a low-profile and reliable connection is necessary without through-hole soldering. This leads to improved manufacturing speed, reduced labor costs, and enhanced overall product reliability.

Additionally, the Straight Pin Header Connector option provides a straightforward and easy-to-use interface, where pins extend perpendicularly from the PCB surface. This design simplifies cable and connector mating, making it suitable for a wide range of applications including signal transmission, power delivery, and data communication. The straight configuration also supports compatibility with standard ribbon cables and header sockets, enhancing the flexibility of system designs.

Overall, the Pin Header Connector combines excellent material properties, precise engineering, and compliance with rigorous safety standards to deliver a dependable connection solution for modern electronics. Whether used as a Surface Mount Pin Header or a Straight Pin Header Connector, this product ensures consistent electrical performance, mechanical robustness, and ease of integration. Its low contact resistance and UL94V-0 fire protection rating further underscore its suitability for demanding electronic applications that require both safety and reliability.

In conclusion, this Pin Header Connector is an essential component for engineers and designers seeking a high-quality, adaptable, and safe connector solution. With multiple insulator material options, a range of plastics heights, and configurations tailored for surface mount or straight pin applications, this connector meets the diverse needs of contemporary electronic manufacturing and design. It stands as a testament to precision engineering and material science, providing a solid foundation for building reliable and efficient electronic systems.

Features:

• Product Name: PIN Header Connector
• Type: Male Pin Header Connector, Straight Pin Header Connector
• Retention Force: 700g minimum
• Durability: 100 cycles
• Plastics Height Options: 1.0mm, 1.5mm, 2.0mm, 2.5mm, 2.54mm
• Pitch Options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Insulation Resistance: 5000 megaohms minimum
• Reliable Pin Header Connector suitable for various electronic applications

Technical Parameters:

Applications:

The LP brand PIN Header Connector, model number LP-P059, is a highly reliable and versatile component widely used in various electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this connector ensures consistent quality and performance. With a supply ability of up to 1,000,000 pieces and a minimum order quantity of 1000PCS, it is ideal for both large-scale industrial projects and smaller production runs. Its competitive price of 0.0001 per unit makes it an economical choice for manufacturers.

This product is designed to operate efficiently within a wide temperature range of -65°C to +125°C, making it suitable for use in harsh environmental conditions. The PIN Header Connector can withstand a processing temperature of 260℃ for 10 seconds, which ensures its stability during soldering processes. Additionally, it offers excellent durability with a lifecycle of 100 cycles and a retention force of 700g minimum, ensuring secure and robust connections in various electronic assemblies.

The LP-P059 PIN Header Connector is available with different plating options, including gold, tin, and nickel, which provide enhanced conductivity and corrosion resistance. It is packaged in multiple formats such as reel, tube, tray, or polybag to accommodate different handling and assembly preferences. The delivery time ranges from 7 to 10 days, and payment terms include T/T, Western Union, and L/C, providing flexibility for global buyers.

In terms of application occasions and scenarios, the LP-P059 PIN Header Connector is ideal for use in Single Row Pin Connector assemblies, where compact and reliable connections are needed. Its design also supports Right Angle Pin Header configurations, making it perfect for PCB layouts that require perpendicular connections to optimize space. Furthermore, the connector is compatible with Female Pin Header Connectors, enabling secure and efficient mating in various electronic devices.

Commonly, this connector is utilized in consumer electronics, automotive electronics, industrial machinery, communication equipment, and computer hardware. Its robust construction and versatile packaging options make it suitable for automated assembly lines and manual installations alike. Whether it is used in circuit boards, control panels, or signal transmission systems, the LP-P059 PIN Header Connector delivers consistent performance and reliability under demanding conditions.

Customization:

LP brand offers high-quality PIN Header Connectors with model number LP-P059, designed and manufactured in China with ISO-9001:2000 certification. Our product customization services cater to various needs, including PCB Mount Pin Header, Straight Pin Header Connector, and Right Angle Pin Header configurations. We ensure reliable performance with contact materials made from copper alloys and pin materials available in phosphor bronze or brass.

Each connector is engineered to withstand a processing temperature of 260℃ for 10 seconds and features excellent insulation resistance of 5000 megaohms minimum. The dielectric withstanding voltage is rated at AC 500V, guaranteeing safety and durability in your electronic applications.

We provide flexible packaging options including reel, tube, tray, and polybag to meet your specific requirements. With a supply ability of 1,000,000 PCS and a minimum order quantity of 1000 PCS, we offer competitive pricing starting at 0.0001 USD per unit. Our delivery time is typically 7 to 10 days, ensuring prompt fulfillment of your orders.

Payment terms are convenient and secure, accepting T/T, Western Union, and L/C methods. Trust LP's PIN Header Connector customization services to deliver reliable, high-performance connectors tailored to your PCB mounting and pin header needs.

Support and Services:

Our PIN Header Connector product comes with comprehensive technical support and services to ensure seamless integration and optimal performance in your applications. Our support team is available to assist with product selection, compatibility questions, and installation guidance. We provide detailed datasheets, technical drawings, and application notes to help you understand the product specifications and usage scenarios.

For engineering support, we offer consultation services to address custom requirements, modifications, and design considerations. Our experts can assist with circuit design, signal integrity analysis, and reliability testing to ensure the connector meets your project needs.

We also provide after-sales services including warranty support, replacement parts, and repair services if applicable. Our goal is to ensure customer satisfaction through timely and effective technical assistance throughout the product lifecycle.

Additionally, training sessions and workshops can be arranged to familiarize your team with the installation and maintenance procedures of the PIN Header Connector, helping to maximize the efficiency and longevity of the product in your systems.

Packing and Shipping:

Our PIN Header Connectors are securely packaged to ensure protection during transit. Each connector is carefully placed in anti-static bags to prevent electrostatic discharge damage. The connectors are then packed in sturdy cardboard boxes with appropriate cushioning materials to avoid any physical damage.

We offer various shipping options to meet your needs, including standard, expedited, and express delivery services. All shipments are tracked, and customers receive tracking information promptly after dispatch. We work with reliable carriers to ensure timely and safe delivery of your order.

For bulk orders, customized packaging solutions are available upon request to accommodate special handling or branding requirements. Please contact our customer service team for more information.
