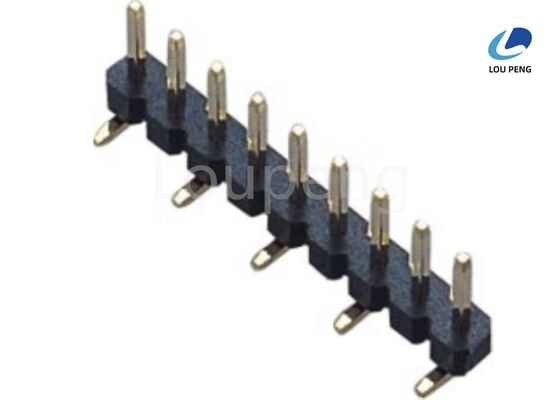

Processing Temperature 260C For 10 Seconds Pin Header Connector 2 To 40 Pins Featuring Contact And Long Term Stability

Product Description:

The Pin Header Connector is a versatile and reliable component widely used in electronic assemblies for establishing secure electrical connections between printed circuit boards (PCBs) and various electronic devices. Designed to meet rigorous industry standards, this connector is available in configurations ranging from 2 to 40 pins, providing flexibility for a wide array of applications. Whether you require a compact setup with just a few pins or a more complex arrangement with multiple connections, this Pin Header Connector accommodates diverse design needs efficiently.

One of the standout features of this connector is its exceptionally low contact resistance, rated at a maximum of 20 milliohms. This low resistance ensures optimal conductivity and minimal signal loss, which is critical in high-performance electronic circuits. The connector’s high insulation resistance, with a minimum rating of 5000 megaohms, further guarantees reliable isolation between individual pins, preventing undesired current leakage and enhancing the overall safety and stability of the electronic system.

Engineered to withstand demanding electrical environments, the Pin Header Connector boasts a dielectric strength of at least 1000 V AC. This high dielectric rating provides excellent protection against electrical breakdowns and ensures the connector can operate safely under high voltage conditions. This makes it suitable for applications where electrical isolation and durability are paramount.

The construction of the Pin Header Connector is meticulously designed to optimize both performance and durability. The pins are plated with high-quality materials such as gold, tin, or nickel, each offering distinct benefits. Gold plating is known for its superior corrosion resistance and excellent conductivity, making it ideal for applications requiring long-term reliability and minimal contact degradation. Tin plating provides a cost-effective solution with good solderability, while nickel plating offers robust mechanical strength and corrosion resistance. This selection of plating options allows designers to choose the best finish based on specific application requirements and budget considerations.

The Pin Header Connector is available in multiple mounting styles to cater to varied assembly techniques. The Surface Mount Pin Header variant is designed for surface mount technology (SMT) processes, enabling automated assembly and compact PCB designs. Its low profile and reliable solder joints make it an excellent choice for modern electronic devices where space-saving and high density are critical. For applications where mechanical robustness and traditional assembly methods are preferred, the Through Hole Pin Header version provides secure and stable mounting by inserting pins through PCB holes and soldering them on the opposite side. This ensures strong mechanical retention and excellent electrical performance.

Additionally, the connector is offered in a Dual Row Pin Header configuration, which doubles the number of connections within the same footprint compared to single-row headers. This dual-row arrangement is ideal for complex circuits requiring multiple interconnections without consuming excessive PCB space. The dual-row design also enhances the mechanical stability of the connector, making it suitable for environments subject to vibration or mechanical stress.

In summary, the Pin Header Connector is a highly adaptable and dependable component that meets the demanding specifications of modern electronic applications. With pin counts ranging from 2 to 40, exceptional electrical characteristics including a maximum contact resistance of 20 milliohms, minimum insulation resistance of 5000 megaohms, and dielectric strength of 1000 V AC, it ensures superior electrical performance. The availability of gold, tin, and nickel plating options provides flexibility in balancing cost and performance. Whether you need a Surface Mount Pin Header for compact designs, a Through Hole Pin Header for robust mechanical attachment, or a Dual Row Pin Header for high-density connections, this connector is engineered to deliver reliable and long-lasting service in a wide variety of electronic systems.

Features:

• Product Name: PIN Header Connector
• Pin Material: Phosphor Bronze / Brass
• Dielectric Withstanding Voltage: AC 500V
• Dielectric Strength: 1000 V AC Minimum
• Contact Resistance: 20M Ohms Max
• Plating Options: Gold, Tin, Nickel
• Suitable for PCB Mount Pin Header applications
• Available as Right Angle Pin Header for versatile mounting
• High reliability Pin Header Connector for electronic assemblies

Technical Parameters:

Applications:

The Loupeng LP-P088 Pin Header Connector is a versatile and reliable component widely used in various electronic applications. Manufactured in China and certified under ISO-9001:2000, this connector ensures high-quality standards and consistent performance. With a current rating of 1.0AMP or 3.0AMP and an insulation resistance of 5000 megaohms minimum, it is designed to provide excellent electrical connectivity and durability across multiple usage scenarios.

One of the primary application occasions for the LP-P088 is in printed circuit board (PCB) assemblies where robust and compact interconnections are required. The connector is available in multiple types, including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows, making it adaptable for diverse PCB layouts and design requirements. For instance, the Right Angle Pin Header is ideal for applications needing a 90-degree connection to the board, optimizing space and improving mechanical stability. Similarly, the Straight Pin Header Connector offers a straightforward vertical connection, commonly used in stacking or bridging PCBs.

These connectors are widely employed in industries such as consumer electronics, telecommunications, automotive electronics, and industrial control systems. Male Pin Header Connectors are often utilized in device interfaces where a secure and reliable male-to-female connection is necessary, such as in microcontrollers, development boards, sensors, and modular devices. Their gold, tin, or nickel plating options enhance corrosion resistance and signal integrity, which is critical in harsh environments or long-term use.

The LP-P088 models come with a durability rating of 100 cycles, ensuring they can withstand repeated mating and unmating without performance degradation. The packaging options, including Reel, Tube, Tray, and Polybag, cater to various manufacturing and assembly processes, facilitating efficient automated pick-and-place operations. With a minimum order quantity of 1000PCS and an impressive supply ability of 1,000,000 pieces, Loupeng can meet both small-scale prototyping and large-volume production demands.

In terms of logistics, the delivery time ranges between 7 to 10 days, with flexible payment terms such as T/T and L/C, making it convenient for global customers to procure this essential connector. Overall, the Loupeng LP-P088 Pin Header Connector is a dependable solution for electronic design engineers seeking high-quality Right Angle Pin Header, Male Pin Header Connector, and Straight Pin Header Connector options to enhance their product’s connectivity and reliability.

Customization:

Introducing the Loupeng LP-P088 PIN Header Connector, a high-quality Dual Row Pin Header designed for reliable electrical connections. Manufactured in China and certified under ISO-9001:2000, this Male Pin Header Connector is available with pin numbers ranging from 2 to 40 pins to suit various application needs.

Our Straight Pin Header Connector features pins made from premium Phosphor Bronze or Brass, ensuring excellent conductivity and durability. With a current rating of 1.0AMP or 3.0AMP and a maximum contact resistance of 20M Ohms, this connector guarantees efficient and stable performance.

We offer flexible packaging options including Reel, Tube, Tray, and Polybag to meet your specific requirements. The minimum order quantity is 1000PCS, with a competitive price of 0.0001 per piece. Our supply ability reaches up to 1,000,000PCS, and delivery time is typically 7 to 10 days.

Payment terms accepted are T/T and L/C, ensuring convenient and secure transactions. For further inquiries about our PIN Header Connectors or to customize your order, please contact us directly. Trust Loupeng for premium Dual Row Pin Header, Male Pin Header Connector, and Straight Pin Header Connector solutions made with quality copper alloys.

Support and Services:

Our PIN Header Connectors are designed to provide reliable and secure electrical connections in a wide range of applications. For technical support, our team of experts is available to assist with product selection, installation guidance, and troubleshooting. We offer detailed datasheets, application notes, and design resources to help you integrate our connectors seamlessly into your projects.

In addition to technical support, we provide comprehensive services including custom configurations, packaging options, and quality assurance testing to meet your specific requirements. Our support extends throughout the product lifecycle to ensure optimal performance and customer satisfaction.

Please refer to the product documentation for detailed specifications and handling instructions. For further assistance, our technical support team is ready to help you achieve the best results with our PIN Header Connectors.

Packing and Shipping:

Our PIN Header Connectors are carefully packaged to ensure they arrive in perfect condition. Each connector is securely placed in anti-static packaging to protect against electrostatic discharge during transit. The packaging is designed to prevent any physical damage, keeping the pins straight and intact.

For shipping, we use reliable carriers with tracking options to ensure timely and safe delivery. Orders are processed promptly and dispatched within 1-2 business days. We also offer various shipping methods to accommodate different customer needs, including standard, expedited, and express shipping.

Whether you are ordering in small quantities or bulk, our packaging and shipping procedures are optimized to maintain product quality and customer satisfaction.
