Dielectric Withstanding AC 500V PIN Header Connector Copper Alloys Contact and Retention Force 700g Min Offering Electrical Interface

Product Description:

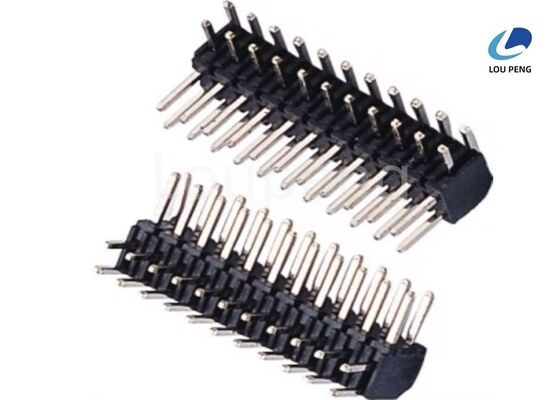

The Right Angle Pin Header Connector is an essential component widely used in electronic assemblies and circuit board connections. Designed to provide reliable and durable electrical connections, this Male Pin Header Connector is engineered to meet stringent performance standards, ensuring optimal functionality in various applications. Available in configurations ranging from 2 to 40 pins, this versatile Through Hole Pin Header offers flexibility to accommodate different circuit design requirements.

One of the standout features of this Right Angle Pin Header is its exceptional contact resistance. With a maximum contact resistance of 20 milliohms, it guarantees minimal signal loss and reliable conductivity. This low resistance is crucial for maintaining signal integrity and ensuring efficient power transmission across the connector interface. Whether used in low-power or high-speed signal applications, the Male Pin Header Connector delivers consistent electrical performance.

In addition to low contact resistance, the Through Hole Pin Header boasts a high insulation resistance of at least 1000 megaohms. This high insulation resistance ensures that electrical leakage between adjacent pins is effectively minimized, enhancing the overall safety and reliability of the electronic device. It also contributes to the connector’s ability to operate efficiently under demanding electrical conditions, preventing unwanted current flow and potential short circuits.

The dielectric strength of this Right Angle Pin Header is rated at a minimum of 1000 volts AC. This impressive dielectric strength means the connector can withstand high voltage stresses without breaking down or compromising insulation integrity. This attribute is particularly important in applications where the connector may be exposed to voltage surges or spikes, providing an added layer of protection and durability.

The plating options available for this Male Pin Header Connector include gold, tin, and nickel finishes. Each plating type offers distinct advantages to suit various environmental and operational needs. Gold plating provides superior corrosion resistance and excellent conductivity, making it ideal for high-reliability applications. Tin plating offers good solderability and cost-effectiveness, while nickel plating enhances mechanical strength and provides a robust barrier against corrosion. These plating options ensure that the Through Hole Pin Header maintains its performance and longevity in diverse conditions.

Manufactured with precision, the Right Angle Pin Header features through-hole mounting technology, which involves inserting pins into drilled holes on a printed circuit board (PCB) and soldering them for a secure mechanical and electrical connection. This mounting style is favored for its strong bond to the PCB and excellent durability, making it suitable for applications that require robust and stable connections. The right-angle orientation of the pins also facilitates space-saving PCB designs and allows for easy mating with perpendicular connectors or cables.

With a pin count ranging from 2 to 40, this Male Pin Header Connector accommodates a wide range of design needs, from simple single-function connections to complex multi-signal interfaces. This flexibility enables engineers to select the appropriate connector size for their specific application, optimizing both space and performance on the circuit board.

In summary, the Right Angle Pin Header is a high-quality Male Pin Header Connector designed for reliable and efficient electrical connections through its through-hole mounting style. Featuring a maximum contact resistance of 20 milliohms, minimum insulation resistance of 1000 megaohms, and a dielectric strength of 1000 volts AC, it ensures excellent electrical performance and safety. The availability of gold, tin, and nickel plating options further enhances its durability and suitability for various environmental conditions. With pin counts from 2 to 40, this Through Hole Pin Header offers versatility and reliability for a wide range of electronic applications, making it an indispensable component in modern circuit design.

Features:

• Product Name: Straight Pin Header Connector
• Contact Resistance: 20M Ohms Max (20 milliohms max)
• Insulation Resistance: 1000M Ohms Min
• Fire Protection Grade: UL94V-0
• Plating Options: Gold, Tin, Nickel
• Reliable performance with low contact resistance for the Straight Pin Header Connector
• Durable insulation ensuring high insulation resistance in the Straight Pin Header Connector

Technical Parameters:

Applications:

The Loupeng LP-P085 Pin Header Connector is a versatile and reliable component designed to meet a wide range of electronic application occasions and scenarios. Manufactured in China and certified under ISO-9001:2000, this product ensures high-quality standards and consistent performance. With a supply ability of 1,000,000PCS and a minimum order quantity of 1000PCS, it is ideal for both large-scale production and specialized projects.

This pin header connector is available in various configurations including Single Row Pin Connector, Surface Mount Pin Header, and Through Hole Pin Header, making it suitable for diverse PCB assembly requirements. The different plastics heights of 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 2.54mm provide flexible options to fit specific design constraints and mechanical needs.

In industrial manufacturing, the LP-P085 connector is commonly used in consumer electronics, telecommunications, automotive electronics, and computer peripherals, where reliable electrical connections are critical. Its high insulation resistance of 5000 megaohms minimum and contact resistance of 20 milliohms max ensure stable and secure signal transmission, even in demanding environments.

Thanks to its current rating options of 1.0AMP or 3.0AMP and a retention force of 700g minimum, this pin header connector can handle moderate electrical loads while maintaining a firm mechanical grip. These attributes make it an excellent choice for power supply interfaces, sensor connections, and data communication modules.

The packaging options of reel, tube, tray, or polybag allow for convenient handling and integration into automated assembly lines or manual soldering operations. Delivery time is efficient, typically within 7 to 10 days, and payment terms such as T/T and L/C provide flexibility to meet different business requirements.

Whether you are designing a new electronic device or upgrading an existing system, the Loupeng LP-P085 Pin Header Connector offers a dependable solution that balances performance, cost (priced at 0.0001 per unit), and availability. Its suitability for single row pin connector applications, surface mount technology (SMT), and through hole mounting techniques makes it a versatile component across many electronic manufacturing scenarios.

Customization:

Loupeng offers comprehensive product customization services for our PIN Header Connector, model number LP-P085. Manufactured in China and certified with ISO-9001:2000, our connectors are designed to meet diverse application requirements with high quality and reliability.

We provide customization options for both Surface Mount Pin Header and Through Hole Pin Header types, supporting pin numbers ranging from 2 to 40 pins. Our plating options include Gold, Tin, and Nickel to ensure optimal conductivity and corrosion resistance.

The PIN Header Connectors feature excellent electrical properties, including a dielectric strength of 1000 V AC minimum and an insulation resistance of at least 5000 megaohms, making them suitable for various demanding electronic applications.

Packaging can be customized to meet your needs with options such as Reel, Tube, Tray, or Polybag. We maintain a strong supply ability of up to 1,000,000 PCS with a minimum order quantity of 1000 PCS, ensuring timely delivery within 7 to 10 days.

Our competitive pricing starts at 0.0001 per unit, and we accept flexible payment terms including T/T and L/C to facilitate smooth transactions.

Choose Loupeng for your Surface Mount Pin Header and Through Hole Pin Header requirements, and benefit from our professional customization services tailored to your specific needs.
