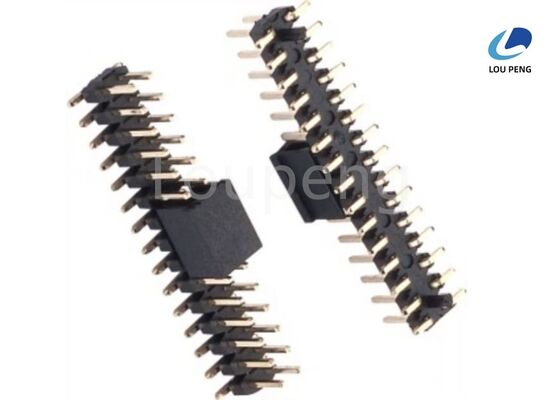

SMT Pin Header Connector Three Rows Pitch 0.8mm Plastics Height 1.0mm Designed for Compact Electronic Module Integration

Product Description:

The PIN Header Connector is a versatile and essential component widely used in electronic circuits and devices for establishing reliable electrical connections. Available with a pin count ranging from 2 to 40 pins, this connector caters to various application needs, whether for simple two-pin connections or complex multi-pin arrangements. Its flexibility makes it an ideal choice for both prototyping and production environments where dependable connectivity is crucial.

One of the standout features of this PIN Header Connector is its different plating options, including gold, tin, and nickel. Each plating type offers distinct advantages: gold plating ensures excellent conductivity and resistance to corrosion, making it perfect for high-performance applications; tin plating provides a cost-effective solution with good solderability and corrosion resistance; whereas nickel plating offers robust mechanical strength and durability. This variety allows users to select the most suitable plating to match their specific environmental and performance requirements.

Designed to withstand rigorous manufacturing processes, the PIN Header Connector can endure a processing temperature of 260℃ for up to 10 seconds without compromising its structural integrity or electrical performance. This makes it highly compatible with modern soldering techniques, including reflow soldering, which is commonly used in surface mount technology (SMT) assembly lines. The high-temperature tolerance ensures that the connector maintains its reliability and functionality throughout the soldering process.

With a maximum contact resistance of 20 milliohms, the PIN Header Connector guarantees efficient electrical conduction with minimal power loss. Low contact resistance is critical in maintaining signal integrity and ensuring stable connections, especially in high-frequency or sensitive electronic circuits. This characteristic enhances the overall performance and reliability of the electronic systems in which these connectors are integrated.

The PIN Header Connector is available in both surface mount and through hole configurations, catering to diverse PCB assembly requirements. The Surface Mount Pin Header variant is designed for mounting directly onto the surface of printed circuit boards, enabling compact and streamlined designs suitable for modern electronics. On the other hand, the Through Hole Pin Header features pins that pass through the PCB and are soldered on the opposite side, providing strong mechanical bonds and enhanced durability, especially in applications subject to mechanical stress or vibration.

Another popular form of this product is the Male Pin Header Connector, which features protruding pins that mate with corresponding female connectors or sockets. The male design facilitates easy connection and disconnection, making it ideal for modular systems, development boards, and other applications requiring frequent interfacing. Its robust construction ensures consistent mating cycles and reliable electrical contact throughout its lifespan.

Packaging of the PIN Header Connector is carefully considered to maintain product quality and facilitate handling. The connectors are packed securely in carton boxes, providing protection during transportation and storage. This packaging method helps prevent damage from environmental factors such as moisture and physical impact, ensuring that the connectors arrive at the end-user in pristine condition ready for immediate use.

In summary, the PIN Header Connector is a highly adaptable and reliable component that meets the demands of modern electronic assembly. Whether you require a Surface Mount Pin Header for compact designs, a Through Hole Pin Header for robust mechanical stability, or a Male Pin Header Connector for easy interfacing, this product offers a wide range of options with excellent electrical and mechanical properties. Its plating choices, high processing temperature tolerance, low contact resistance, and secure packaging make it an indispensable element in various electronic applications, from consumer electronics to industrial equipment.

Features:

• Product Name: PIN Header Connector
• Gender: Male
• Compatible with Female Pin Header Connector
• PCB Mount Pin Header design for easy installation
• Processing Temperature: 260℃ for 10 seconds
• Insulation Resistance: 5000 megaohms minimum
• Pin Numbers: Available from 2 to 40 pins
• Dielectric Strength: 1000 V AC minimum
• Reliable connection with Female Pin Header Connector

Technical Parameters:

This PCB Mount Pin Header includes options such as Dual Row Pin Header and Female Pin Header Connector, suitable for various electronic applications requiring reliable connections.

Applications:

The Loupeng LP-P083 Pin Header Connector is a versatile and reliable component widely used in various electronic applications. As a Single Row Pin Connector, it offers excellent connectivity solutions for printed circuit boards (PCBs) across multiple industries. Its availability in configurations ranging from 2 to 40 pins allows it to accommodate diverse circuit requirements, making it a preferred choice for engineers and designers seeking customizable interconnection options.

One of the prominent application occasions for the LP-P083 model is in consumer electronics, where compact and efficient connections are essential. The Male Pin Header Connector design ensures secure mating with female connectors, enabling stable signals and power transmission in devices such as smartphones, tablets, and wearable technology. Its right angle pin header variant is particularly useful in scenarios requiring space-saving layouts, such as in compact embedded systems and industrial control panels.

In the automotive industry, the LP-P083 pin header connectors demonstrate robustness and reliability under harsh conditions. With a fire protection grade of UL94V-0 and a processing temperature tolerance of up to 260℃ for 10 seconds, these connectors maintain performance integrity in environments exposed to heat and potential fire hazards. They are often used in vehicle electronic control units (ECUs), infotainment systems, and sensor modules, where dependable electrical connections are critical for safety and performance.

Additionally, the LP-P083 connectors are ideal for use in telecommunications and networking equipment. Their precise pitch options (1.0mm, 1.5mm, 2.0mm, 2.5mm, and 2.54mm plastics height) support high-density circuit designs and facilitate efficient signal routing. The connectors’ packaging options, including reel, tube, tray, and polybag, accommodate various assembly line requirements, ensuring smooth integration into automated manufacturing processes.

Manufactured in China under strict ISO-9001:2000 certification standards, the Loupeng LP-P083 delivers consistent quality and performance. The product is offered with a minimum order quantity of 1000PCS at a competitive price of 0.0001 per unit, backed by a supply ability of up to 1,000,000PCS. Payment terms such as T/T and L/C provide flexibility for international buyers, while a delivery time of 7 to 10 days ensures prompt fulfillment.

Overall, the Loupeng Single Row Pin Connector, including its Male Pin Header Connector and Right Angle Pin Header variants, is an indispensable component in modern electronics manufacturing. Its adaptability, reliability, and certification credentials make it suitable for a wide range of scenarios—from consumer gadgets to industrial and automotive systems—where dependable electrical connections are paramount.

Customization:

Our Pin Header Connector product, branded Loupeng with model number LP-P083, offers exceptional quality and customization options to meet your specific needs. Manufactured in China and certified with ISO-9001:2000, this connector ensures reliable performance and durability.

We provide a variety of pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm to suit different applications. The pin material is available in high-quality Phosphor Bronze or Brass, offering excellent retention force of 700g minimum and insulation resistance of 1000M Ohms minimum.

Our Female Pin Header Connector and Right Angle Pin Header variants are designed to withstand a processing temperature of 260℃ for 10 seconds, ensuring robustness during soldering and assembly.

Packaging options include Reel, Tube, Tray, and Polybag to accommodate various shipping and storage preferences. We maintain a strong supply ability of 1,000,000 PCS with a minimum order quantity of 1000PCS.

Prices start at just 0.0001 per unit, with flexible payment terms available including T/T and L/C. Delivery time is typically between 7 to 10 days, ensuring timely fulfillment of your orders.

Choose Loupeng’s Pin Header Connector series for reliable, customizable solutions including Female Pin Header Connector and Right Angle Pin Header to meet your electronic component needs.

Support and Services:

Our PIN Header Connector product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including datasheets, installation guides, and application notes to assist with proper usage and integration.

Technical support is available to address any inquiries related to product specifications, compatibility, and troubleshooting. Our experienced support team can guide you through the selection process to find the right connector solution for your application.

We offer customization services to tailor the PIN Header Connectors to your specific requirements, including pin configurations, plating options, and packaging. Additionally, our quality assurance team conducts rigorous testing to ensure reliability and compliance with industry standards.

For ongoing maintenance, repair advice, and replacement parts, we provide expert consultation to minimize downtime and maintain system integrity. Our commitment is to deliver exceptional service and support throughout the lifecycle of your PIN Header Connector product.

Packing and Shipping:

Our PIN Header Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually secured in anti-static bags to prevent any electrostatic discharge damage. The connectors are then placed in sturdy, cushioned boxes to avoid any physical damage or deformation.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. We offer various shipping methods including standard, expedited, and express shipping to meet your specific needs. All orders are processed promptly and shipped with care to ensure the product arrives in perfect condition.

Bulk orders are packed in reinforced cartons with additional padding to maintain product integrity throughout the shipping process. We also provide custom packaging solutions upon request to accommodate special requirements.

Rest assured, your PIN Header Connector will be delivered safely and efficiently, ready for immediate use in your electronic projects and applications.
