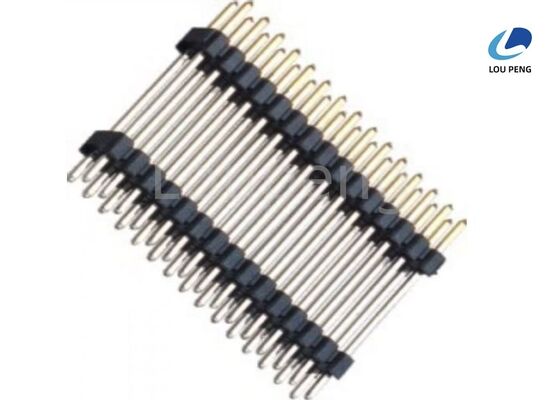

Dielectric Withstanding AC 500V Dual Row Pin Header Connector 2.54mm Pitch Through Hole PCB Mount Electronic Component

Product Description:

The Pin Header Connector is an essential component widely used in electronic assemblies and circuit boards, offering a reliable and efficient means of establishing electrical connections. This product is designed as a Single Row Pin Connector, featuring a range of 2 to 40 pins to accommodate various application requirements. Its versatility and robust construction make it an ideal choice for both prototyping and production environments where dependable connectivity is crucial.

One of the standout features of this Pin Header Connector is its high-quality pin material. The pins are manufactured from premium Phosphor Bronze or Brass, both known for their excellent electrical conductivity and mechanical strength. Phosphor Bronze offers superior spring properties and corrosion resistance, making it suitable for applications requiring durability and repeated mating cycles. Brass, on the other hand, provides a cost-effective option with good conductivity and sufficient mechanical robustness. These materials ensure that the connector maintains optimal performance over extended periods, even in demanding conditions.

The connector is classified as a Through Hole Pin Header, which means it is specifically designed to be mounted through the holes on a printed circuit board (PCB). This mounting technique enhances mechanical stability and ensures a secure, long-lasting connection between the connector and the PCB. Through hole mounting is particularly advantageous for applications subject to mechanical stress or vibration, as it provides stronger retention compared to surface-mount alternatives.

In terms of electrical performance, the Pin Header Connector offers an impressive dielectric strength of 1000 V AC minimum. This high dielectric strength ensures excellent insulation between adjacent pins, preventing electrical breakdown and enhancing the safety and reliability of the electronic system. It is particularly beneficial in applications where high voltage isolation is required or where the connector is exposed to fluctuating electrical environments.

The contacts within the connector are made from high-quality copper alloys, which are chosen for their superior electrical conductivity and resistance to wear and corrosion. Copper alloys provide a low-resistance path for electrical signals, ensuring minimal signal loss and efficient transmission. This is critical in maintaining signal integrity in complex electronic circuits, especially those operating at high frequencies or sensitive analog signals.

Another important specification of this Pin Header Connector is its low contact resistance, rated at a maximum of 20 milliohms. Low contact resistance is essential for minimizing power loss, heat generation, and ensuring efficient electrical conduction through the connector. This characteristic is particularly valuable in power delivery applications or in circuits where precision and signal clarity are paramount.

The Pin Header Connector is available in various pin counts, ranging from 2 to 40 pins, catering to a wide spectrum of connectivity needs. Whether you require a simple two-pin connection or a more complex multi-pin interface, this product can accommodate your design requirements. Its single-row configuration simplifies PCB layout and reduces space consumption, making it a practical choice for compact electronic devices.

Overall, this Single Row Pin Connector combines robust materials, excellent electrical properties, and versatile design features to deliver a high-performance solution for electronic interconnections. Its through-hole mounting, phosphor bronze or brass pins, copper alloy contacts, high dielectric strength, and low contact resistance collectively ensure reliable and efficient operation in various industrial, commercial, and consumer electronics applications. Whether for signal transmission, power delivery, or grounding purposes, this Pin Header Connector stands out as a dependable and high-quality component in the electronics industry.

Features:

• Product Name: PIN Header Connector
• Type: PCB Mount Pin Header
• Configuration: Dual Row Pin Header
• Insulation Resistance: 5000 Megaohms minimum
• Durability: 100 cycles
• Retention Force: 700g minimum
• Pin Material: Phosphor Bronze / Brass
• Contact Resistance: 20 milliohms maximum

Technical Parameters:

Applications:

The Loupeng LP-P086 Pin Header Connector is an essential component widely used in various electronic applications due to its high reliability and versatile design. Manufactured in China and certified under ISO-9001:2000, this product guarantees superior quality and performance. Its excellent dielectric strength of 1000 V AC minimum and dielectric withstanding of AC 500V make it ideal for ensuring electrical insulation and safety in demanding environments. Additionally, the product's UL94V-0 fire protection grade ensures enhanced safety against fire hazards, making it suitable for critical applications.

The LP-P086 Pin Header Connector is available in multiple configurations including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows, catering to a broad range of design requirements. The insulator materials such as LCP, Nylon, PA6T, and PBT+30% glass fiber (UL94V-0) provide excellent mechanical strength and thermal stability, which are crucial for maintaining performance in harsh conditions. This flexibility in types and materials allows the Pin Header Connector to be used effectively in various electronics assemblies.

One of the primary application occasions for the LP-P086 is in PCB Mount Pin Header assemblies, where it serves as a critical interface for connecting different electronic modules on printed circuit boards. Its single row pin connector variant is particularly favored in applications requiring compact and reliable connections with straightforward installation. The connector's packaging options, including reel, tube, tray, and polybag, facilitate efficient handling and integration into automated production lines.

The LP-P086 Pin Header Connector is extensively used in consumer electronics, telecommunications equipment, industrial control systems, automotive electronics, and computer peripherals. Its robust design and high supply ability of up to 1,000,000 pieces allow it to meet the demands of large-scale manufacturing. With a minimum order quantity of 1000PCS and a competitive price point of 0.0001 per unit, it offers an economical yet high-quality solution for mass production needs.

Delivery is prompt with a lead time of 7 to 10 days, and payment terms such as T/T and L/C provide flexibility to buyers worldwide. Overall, the Loupeng LP-P086 Pin Header Connector is perfectly suited for various scenarios requiring reliable electrical connections, such as prototyping, production of electronic devices, and repair or upgrade of existing systems. Its combination of durability, safety, and versatility makes it a preferred choice for engineers and manufacturers in the electronics industry.

Customization:

Loupeng offers customizable Straight Pin Header Connector solutions, model number LP-P086, designed for reliable PCB Mount Pin Header applications. Manufactured in China and certified with ISO-9001:2000, our Through Hole Pin Header products ensure high quality and performance.

We support minimum order quantities starting from 1000PCS, with competitive pricing at 0.0001 per unit. Packaging options include Reel, Tube, Tray, and Polybag to meet your specific requirements. Our standard delivery time ranges between 7 to 10 days, ensuring timely supply for your projects.

Payment terms are flexible, accepting T/T and L/C methods. With a strong supply ability of 1,000,000PCS, we can accommodate large volume orders efficiently. Our pin headers feature a fire protection grade of UL94V-0, providing enhanced safety and reliability.

Technical specifications include a maximum contact resistance of 20 milliohms, insulator materials such as LCP, Nylon, PA6T, and PBT with 30% glass fiber (UL94V-0 rated). The dielectric strength is rated at a minimum of 1000 V AC, and the durability of the connectors is tested for 100 cycles, ensuring long-lasting performance.

Choose Loupeng’s LP-P086 Straight Pin Header Connector for your PCB Mount Pin Header and Through Hole Pin Header needs, and benefit from our professional customization services tailored to meet your exact specifications.

Support and Services:

Our PIN Header Connector product is designed to provide reliable and efficient electrical connections in various electronic applications. For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, troubleshooting tips, and customization options to meet your specific requirements.

We recommend consulting the product datasheet for detailed specifications and compatibility information. Should you encounter any issues during the installation or operation of the PIN Header Connector, our technical team is available to help diagnose and resolve problems promptly.

Additionally, we provide value-added services such as custom pin configurations, packaging solutions, and quality assurance testing to ensure optimal performance and customer satisfaction. Our commitment is to support you throughout the product lifecycle, from initial inquiry to post-purchase support.

Please refer to our online resources and FAQs for quick answers to common questions. For more complex technical queries or service requests, do not hesitate to reach out to our support team.

Packing and Shipping:

Our PIN Header Connector is carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent any electrostatic discharge damage. The connectors are then securely packed in sturdy cardboard boxes with adequate cushioning materials to avoid any physical damage.

For shipping, we offer multiple options including standard, expedited, and overnight delivery to meet your needs. All shipments are handled with care and tracked to ensure timely and safe delivery. Bulk orders are palletized and shrink-wrapped for added security. We also provide custom packaging solutions upon request to accommodate special requirements.
