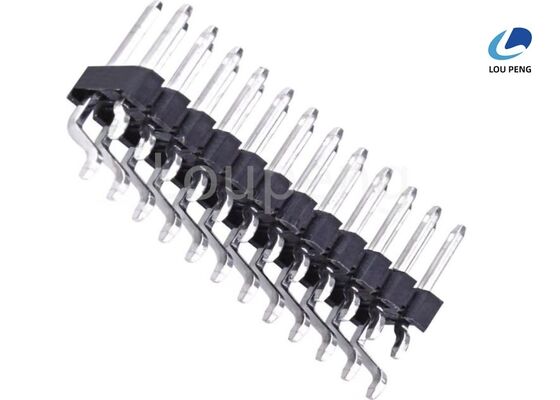

Contact Resistance 20M Ohms Max PIN Header Connector Insulator LCP NYLON PA6T PBT30GFL UL94V-0 Operating Temp 65C To 125C

Product Description:

The PIN Header Connector is a versatile and reliable component widely used in electronic assemblies for establishing secure electrical connections. Designed to meet rigorous industry standards, this connector is an essential part of various electronic devices, providing dependable performance in a range of applications. Among the types available, the Single Row Pin Connector and the Female Pin Header Connector are particularly popular for their ease of use and robust construction.

One of the standout features of this Pin Header Connector is its impressive processing temperature tolerance. It can withstand a maximum temperature of 260℃ for up to 10 seconds during soldering or assembly processes. This high thermal endurance ensures that the connector maintains its integrity and performance even under demanding manufacturing conditions, reducing the risk of damage or failure during installation.

The insulation resistance of the PIN Header Connector is equally remarkable, boasting a minimum of 1000M Ohms. This high insulation resistance is critical for preventing unwanted current leakage and ensuring signal integrity across connections. It contributes significantly to the overall safety and reliability of electronic circuits, making the connector an excellent choice for sensitive and high-precision applications.

In terms of current handling capabilities, the Pin Header Connector is designed to support either 1.0AMP or 3.0AMP, depending on the specific model and configuration. This range of current ratings allows for flexibility in various electronic designs, accommodating both low-power and moderately high-power applications. Whether used in low-current signal transmission or in circuits requiring more substantial current flow, the connector delivers consistent and reliable electrical performance.

The insulator materials used in the construction of the PIN Header Connector are carefully selected to enhance durability and performance. Options include LCP (Liquid Crystal Polymer), Nylon, PA6T (Polyamide 6T), and PBT+30% Glass Fiber (UL94V-0). Each of these materials offers unique benefits such as high mechanical strength, excellent thermal stability, and resistance to chemical and environmental stress. Additionally, the UL94V-0 fire protection grade certification ensures that the connector exhibits flame-retardant properties, providing an added layer of safety in electronic applications where fire hazards must be minimized.

Specifically, the Single Row Pin Connector configuration is favored for compact designs requiring straightforward, linear pin arrangements. This form factor simplifies board layout and enables easy mating with corresponding Female Pin Header Connectors. The Female Pin Header Connector itself is designed to securely receive and hold the male pins, ensuring a stable and reliable connection while allowing for easy disconnection when needed. Together, these connectors form a versatile system that can be adapted to a wide variety of electronic products.

Overall, the PIN Header Connector combines robust construction, high electrical performance, and thermal resilience to meet the demanding requirements of modern electronics manufacturing. Its high insulation resistance and fire protection rating make it suitable for use in critical applications where safety and reliability cannot be compromised. Whether used as a Single Row Pin Connector or paired with a Female Pin Header Connector, this product offers a dependable connection solution that supports efficient and effective electronic design.

In conclusion, the PIN Header Connector stands out as a high-quality component that addresses the essential needs of electronic connectivity. Its ability to operate at high processing temperatures, maintain substantial insulation resistance, and handle varying current ratings, all while being made from advanced insulator materials with UL94V-0 fire protection, ensures that it delivers exceptional value and performance. For engineers and designers looking for a reliable Pin Header Connector, this product is an excellent choice that guarantees durability, safety, and functionality.

Features:

• Product Name: PIN Header Connector
• Fire Protection Grade: UL94V-0
• Current Rating: 1.0AMP or 3.0AMP
• Type Options: Vertical, Right Angle, SMT, Single Row, Double Row, Three Rows
• Number of Pins: 2 to 40 Pins
• Retention Force: 700g Minimum
• Includes Right Angle Pin Header for versatile mounting options
• Available as Male Pin Header Connector for reliable connections
• Includes Straight Pin Header Connector for standard vertical configurations

Technical Parameters:

Applications:

The Loupeng LP-P087 Pin Header Connector is an essential component widely used in various electronic applications, providing reliable and stable connections between circuit boards and other electronic modules. Originating from China and certified under ISO-9001:2000, this product guarantees high quality and performance, making it a trusted choice in the electronics manufacturing industry. With a versatile design available in Vertical, Right Angle, SMT, Single Row, Dual Row Pin Header, and even Three Rows configurations, the LP-P087 model caters to a broad range of connection needs.

This Male Pin Header Connector is particularly favored in scenarios where compact and efficient board-to-board connections are required. Its plating options, including Gold, Tin, and Nickel, ensure excellent conductivity and corrosion resistance, suitable for use in environments with operation temperatures ranging from -65°C to +125°C. Such thermal resilience makes it ideal for applications in automotive electronics, industrial machinery, telecommunications, and consumer electronics where temperature fluctuations are common.

In manufacturing and assembly lines, the LP-P087 Pin Header Connector’s packaging flexibility—including Reel, Tube, Tray, and Polybag options—facilitates smooth automated placement and soldering processes. This is particularly beneficial for mass production settings requiring fast and efficient assembly, supported by a supply ability of up to 1,000,000 pieces. With a minimum order quantity of 1000PCS and a competitive price point of 0.0001, this connector is cost-effective for large-scale projects.

The connector’s UL94V-0 fire protection grade adds a layer of safety in electronic devices where fire resistance is critical, such as in medical equipment, aerospace controls, and power supply units. Additionally, its packing in sturdy carton boxes ensures safe delivery within 7 to 10 days, supported by flexible payment terms including T/T and L/C, which cater to global buyers.

Overall, the Loupeng LP-P087 Dual Row Pin Header and other configurations offer dependable performance and adaptability, making them suitable for a wide array of application occasions—from prototyping and small-scale electronic projects to large-scale industrial production. Whether used in custom circuit board assemblies, embedded systems, or high-density electronic modules, these Pin Header Connectors ensure secure and efficient electrical connections, meeting the demands of modern electronic design and manufacturing.

Customization:

Introducing the Loupeng LP-P087 Straight Pin Header Connector, a versatile Male Pin Header Connector designed to meet diverse electronic assembly needs. Manufactured in China and certified with ISO-9001:2000, this Through Hole Pin Header ensures high quality and reliability for your projects.

Our product offers a wide range of customization options including pitch sizes of 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, accommodating 2 to 40 pins to suit various applications. The current rating is available in 1.0AMP or 3.0AMP, with plating options of Gold, Tin, or Nickel to provide excellent conductivity and corrosion resistance.

The insulator materials can be customized from LCP, NYLON, PA6T, or PBT+30%G.F (UL94V-0), ensuring durability and safety in different environments. Packaging choices include Reel, Tube, Tray, or Polybag to facilitate your preferred handling and storage methods.

With a minimum order quantity of 1000PCS and a competitive price of $0.0001 per unit, Loupeng guarantees efficient production and delivery within 7 to 10 days. Payment terms are flexible, accepting T/T and L/C to accommodate your purchasing preferences.

Supported by a supply ability of 1,000,000PCS, the LP-P087 Straight Pin Header Connector is ideal for high-volume requirements, ensuring consistent availability. Choose Loupeng for your Male Pin Header Connector needs and experience the quality and customization options that make our Through Hole Pin Header the preferred choice in the industry.

Support and Services:

Product Technical Support and Services for the PIN Header Connector include comprehensive assistance to ensure optimal performance and reliability of the product. Our support team provides detailed product information, installation guidance, and troubleshooting tips to address any technical issues you may encounter.

We offer technical documentation such as datasheets, application notes, and wiring diagrams to help you understand the specifications and proper usage of the PIN Header Connector. Additionally, our experts are available to assist with design-in support, helping you select the right connector configuration for your application.

For maintenance and repair, we provide recommendations on handling, cleaning, and replacement procedures to prolong the lifespan of the connectors. If you experience any defects or performance problems, our support services include product evaluation and replacement under warranty terms.

We also offer training sessions and webinars to keep your team updated on the latest technologies and best practices related to PIN Header Connectors. Our goal is to ensure that you receive timely and effective support throughout the lifecycle of the product.

Packing and Shipping:

Our PIN Header Connectors are carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent any electrostatic discharge damage. The connectors are then securely packed in sturdy cardboard boxes with ample cushioning material to avoid any mechanical impact or vibration.

For shipping, we offer various options including standard, expedited, and overnight delivery to meet your timeline requirements. All shipments are processed promptly and include tracking information for your convenience. We also provide international shipping with customs documentation to facilitate smooth delivery worldwide.

We take great care in handling and shipping our PIN Header Connectors to ensure they arrive at your location in perfect condition and ready for immediate use.
