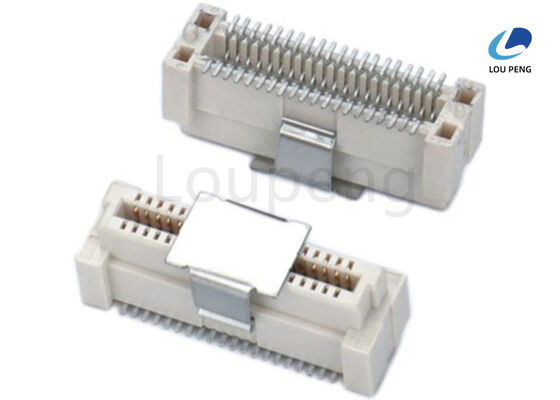

Board To Board Connector Printed Circuit Board Connector Featuring Insertion Force 1.5N Pin Max 40N Max Total Suitable for Connections

Product Description:

The Board To Board Connector is a highly reliable and efficient solution designed for seamless interconnection between printed circuit boards (PCBs). Engineered to meet the demanding requirements of modern electronic applications, this connector offers a robust and durable connection with a voltage rating of 50V, making it suitable for a wide range of low to medium voltage applications. Whether you are working on complex multi-layer PCB assemblies or simpler dual-board setups, this connector ensures consistent performance and excellent electrical conductivity.

One of the standout features of this Board To Board Connector is its insulator material, crafted from high-quality polyester. Polyester is renowned for its excellent electrical insulation properties, mechanical strength, and resistance to environmental factors such as moisture and temperature variations. This ensures that the connector maintains its integrity and performance over time, even in challenging operating conditions. The use of polyester as the insulator material significantly enhances the connector’s reliability and lifespan, making it an ideal choice for various industrial, automotive, and consumer electronic applications.

This product features a dual row configuration, providing two rows of contacts that enable a higher density of connections within a compact footprint. The Dual Row Board Connector design allows for efficient use of PCB space while maintaining secure contact integrity. This configuration is especially beneficial in applications where multiple signal lines or power connections need to be routed between boards without compromising on size or performance. The dual row layout is engineered to ensure proper alignment and mating, reducing the risk of connection failures and improving overall system reliability.

The contacts of this PCB Board Interconnect Connector are available with two plating options: gold plated and tin plated. Gold plating offers superior corrosion resistance, excellent conductivity, and reliable long-term performance, making it suitable for high-reliability applications where signal integrity is critical. On the other hand, tin plating provides a cost-effective solution with good solderability and adequate protection against oxidation. Depending on the specific requirements of your project, you can choose the contact plating that best fits your needs, balancing performance and budget considerations.

Packaging is another important aspect of this PCB Board Interconnect Connector. The product is supplied in reels, which facilitate automated assembly processes and streamline manufacturing workflows. Reel packaging is particularly advantageous for high-volume production environments, as it supports efficient handling, reduces the risk of damage during transportation, and simplifies inventory management. This packaging format ensures that the connectors remain in optimal condition until they are ready to be used, contributing to a smooth and efficient production cycle.

In summary, this Board To Board Connector combines a robust 50V voltage rating, durable polyester insulation, dual row contact configuration, and versatile gold or tin plating options to deliver a high-performance PCB interconnect solution. Its reel packaging further enhances its suitability for modern automated assembly lines, making it an excellent choice for engineers and manufacturers seeking a reliable and efficient PCB Board Interconnect Connector. Whether you require a connector for industrial equipment, consumer electronics, or automotive systems, this dual row board connector is designed to meet your application demands with ease and confidence.

Features:

• Product Name: Board To Board Connector
• Insertion Force: 1.5N/pin max (40N max total)
• Housing Material: LCP, UL94V-0 rated
• Contact Plating Options: Gold Plated or Tin Plated
• Terminal and Post Material: Copper Alloy with Gold Plating over Nickel
• Plastic Height Options: 1.28mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.3mm, 3.7mm, 4.0mm, 5.0mm, 6.0mm, 6.5mm, 6.6mm, 7.0mm, 7.7mm, 7.8mm, 9.75mm, 14.5mm
• Designed as a Board Mount Connector System for reliable connections
• Enables Stackable Board Connector Assembly for compact multi-board configurations
• Suitable as a Through Hole Board Connector for secure mechanical and electrical connections

Technical Parameters:

Applications:

The Loupeng LP-BTB030 Board To Board Connector is a highly reliable and versatile component designed for various application occasions and scenarios. As a Printed Circuit Board Connector, it is widely used in office equipment where stable and efficient electrical connections between circuit boards are essential. This product, originating from China and certified with ISO-9001:2000, ensures superior quality and performance, catering to the demanding requirements of modern electronic devices.

One of the primary application scenarios for the LP-BTB030 is in the assembly of office equipment such as printers, copiers, scanners, and other multifunctional devices. These devices require precise and dependable connections between multiple printed circuit boards, where the Dual Row Board Connector design offers enhanced contact reliability and signal integrity. The dual row configuration allows for increased pin density, making it suitable for compact and complex circuit layouts.

Additionally, the LP-BTB030 excels in applications involving Through Hole Board Connector technology. Its through-hole mounting provides strong mechanical stability, which is crucial in environments subject to vibration or mechanical stress. This makes it ideal not only for office equipment but also for industrial control systems, communication devices, and consumer electronics where durability and consistent performance are critical.

With a voltage rating of 50V and contact resistance specifications of 20mΩ max for power pins and 50mΩ max for signal pins, this connector ensures efficient power and signal transmission, minimizing losses and improving overall device functionality. The packaging options—Reel, Tube, or Tray—allow for flexible integration into automated assembly lines, supporting high-volume production with a supply ability of 100,000PCS and a minimum order quantity of 1000PCS.

The LP-BTB030 is priced competitively at $0.06 per piece, with flexible payment terms including T/T and L/C, and a typical delivery time of 7 to 10 days. Trial orders of 2000 pieces are available, enabling manufacturers to validate the product's compatibility and performance before committing to larger quantities. Overall, the Loupeng Board To Board Connector LP-BTB030 is an excellent choice for any application that demands reliable, high-quality connections between printed circuit boards in office equipment and beyond.

Customization:

Introducing the Loupeng LP-BTB030 Board To Board Connector, a high-quality, stackable board connector assembly designed for reliable electronic connections. Manufactured in China and certified with ISO-9001:2000, this product ensures superior performance and quality.

This right angle board connector is perfect for applications requiring compact and efficient connections, featuring a contact resistance of 20mΩ max for power pins and 50mΩ max for signal pins, ensuring excellent conductivity and minimal signal loss.

The surface mount board connector supports a rating current of 3A per power pin and 0.3A per signal pin, with a maximum total contact current of 5A, making it suitable for various electronic devices. It comes with automated pick and place embossed tape packaging, facilitating easy and efficient assembly.

The LP-BTB030 is available with flexible packaging options including reel, tube, and tray, catering to different production needs. With a minimum order quantity of 1000PCS and a competitive price of $0.06 per piece, it provides an excellent balance of quality and affordability.

Our supply ability reaches up to 100,000PCS, with a delivery time of 7 to 10 days. Payment terms are convenient, accepting T/T and L/C. Delivery methods include air shipment, sea shipment, UPS, FEDEX, and DHL, ensuring timely and safe delivery worldwide.

We also accept trial orders starting from 2000PCS, allowing customers to evaluate the product before full-scale procurement. Choose the Loupeng LP-BTB030 Board To Board Connector for your next project and experience superior connectivity with our stackable board connector assembly, right angle board connector, and surface mount board connector solutions.
