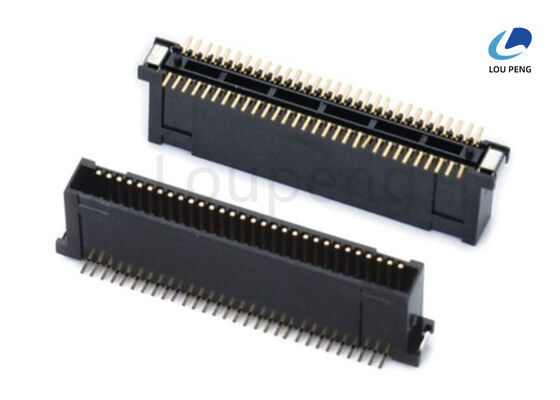

Trial Order 2000 Pcs PCB Board Interconnect Connector Utilizing UL94V-0 Rated LCP Housing Material for Enhanced Durability

Product Description:

The Board To Board Connector is an advanced Surface Mount Board Connector designed to meet the demands of modern electronic applications, especially in office equipment. This connector is engineered to provide reliable and efficient electrical connections between stacked printed circuit boards, ensuring optimal performance in compact and high-density electronic assemblies. With its right angle configuration, the connector facilitates easy board-to-board connections while maintaining a low profile, making it ideal for space-constrained designs.

One of the standout features of this product is its compatibility with automated manufacturing processes. The connector is supplied in embossed tape packaging, which is specifically designed for automated pick and place machines. This packaging format significantly enhances production efficiency by enabling precise and rapid placement of connectors on the PCB during surface mount technology (SMT) assembly. It reduces manual handling errors and accelerates the overall manufacturing process, making it a preferred choice for large-scale production runs.

In terms of electrical performance, the Board To Board Connector boasts a robust rating current capability. The power pins can handle up to 3A per contact, ensuring sufficient current flow for power delivery within electronic devices. Meanwhile, the signal pins are rated at 0.3A per contact, with a maximum of 5A across the total contacts. This dual rating makes the connector versatile enough to carry both power and signal lines simultaneously, supporting complex circuit requirements without compromising reliability.

The connector is designed to operate efficiently within a wide ambient temperature range of -55ºC to +125ºC. This broad temperature tolerance ensures consistent performance even in harsh environmental conditions or during thermal cycling, which is common in office equipment that experiences frequent power on/off cycles. The thermal resilience of this connector guarantees long-term durability and stable electrical characteristics, thereby enhancing the lifespan of the connected devices.

In addition to its electrical and thermal advantages, this product facilitates a stackable board connector assembly configuration. This feature allows multiple printed circuit boards to be securely connected in a stacked arrangement, optimizing the use of vertical space within electronic enclosures. The stackable design is particularly beneficial in office equipment, where compactness and efficient use of space are critical. By enabling vertical stacking, the connector helps reduce the overall footprint of electronic assemblies while maintaining easy accessibility for maintenance or upgrades.

For customers interested in evaluating the Board To Board Connector for their specific applications, a trial order quantity of 2000 pieces is available. This trial order option provides an excellent opportunity for engineers and designers to test the connector’s compatibility, performance, and assembly efficiency within their production environments before committing to larger volume purchases.

Overall, the Board To Board Connector combines the advantages of a surface mount right angle board connector with the flexibility of a stackable board connector assembly. Its embossed tape packaging caters perfectly to automated pick and place manufacturing, while its electrical ratings and temperature tolerance ensure reliable operation in office equipment and similar applications. Whether used in printers, copiers, scanners, or other office electronics, this connector delivers dependable connectivity, ease of assembly, and space-saving benefits, making it an essential component for modern electronic design.

Features:

• Product Name: Board To Board Connector
• Contact Resistance: Power Pin 20mΩ Max, Signal Pin 50mΩ Max
• Current Rating: Up To 3A Per Contact
• Voltage Rating: 50V
• Available Pitch Sizes: 0.5mm, 0.8mm, 1.0mm
• Types Available: Through Hole Board Connector, Right Angle Board Connector, Surface Mount Board Connector

Technical Parameters:

Applications:

The Loupeng LP-BTB028 Board To Board Connector is an essential component designed for numerous electronic applications where reliable and efficient connections between two printed circuit boards (PCBs) are required. As a Right Angle Board Connector with two rows, it perfectly suits scenarios demanding compact and space-saving interconnections. Its design supports a current rating of up to 3A per contact and a voltage rating of 50V, making it ideal for medium-power electronic devices and systems.

This PCB Board Interconnect Connector is widely used in various industries including telecommunications, consumer electronics, automotive, and industrial equipment. It is especially beneficial in applications where a Board Mount Connector System is required to ensure stable and robust electrical connections while maintaining ease of assembly and maintenance. The right angle configuration allows for efficient use of PCB space, facilitating vertical-to-horizontal board connections in compact devices such as laptops, tablets, and embedded control systems.

Thanks to its ISO-9001:2000 certification, the LP-BTB028 guarantees high-quality manufacturing standards, ensuring consistent performance and reliability. Originating from China, Loupeng offers this connector with a minimum order quantity of 1000PCS, maintaining a competitive price of $0.06 each. This cost-effectiveness, combined with a supply ability of 100000PCS, makes it an excellent choice for large-scale production and manufacturing projects.

Packaging options include Reel, Tube, and Tray, with Reel packing being standard, facilitating automated assembly processes. The delivery time ranges from 7 to 10 days, with flexible payment terms such as T/T and L/C, supporting smooth procurement and supply chain management. Additionally, the product can be shipped via air shipment, sea shipment, UPS, FedEx, or DHL, providing convenience and efficiency in logistics.

In summary, the Loupeng LP-BTB028 Board To Board Connector is perfectly suited for applications requiring a durable, reliable, and easy-to-install right angle board connector. It offers excellent electrical performance in a compact form factor, making it a preferred choice in modern electronic device design and manufacturing where a robust PCB Board Interconnect Connector or Board Mount Connector System is essential.

Customization:

Loupeng presents the LP-BTB028 Dual Row Board Connector, a High Density Board Connector designed to meet your precise electronic interconnection needs. Manufactured in China and certified with ISO-9001:2000, this connector ensures top quality and reliability.

The LP-BTB028 model supports a current rating of up to 3A per contact and operates at a voltage rating of 50V, making it ideal for compact and high-performance applications. Its housing is made from LCP with UL94V-0 flame retardant rating, ensuring durability and safety.

Featuring terminals and posts crafted from copper alloy with gold plating over nickel, the connector guarantees excellent conductivity and corrosion resistance. Contact resistance is maintained at a maximum of 20mΩ for power pins and 50mΩ for signal pins, ensuring efficient signal transmission.

Available with packaging options such as reel, tube, or tray, the LP-BTB028 is ready for bulk orders with a minimum order quantity of 1000PCS. Priced competitively at $0.06 per piece, Loupeng can supply up to 100,000PCS with a delivery time of 7 to 10 days.

Flexible payment terms including T/T and L/C are accepted to facilitate smooth transactions. Choose Loupeng’s High Density Board Connector for reliable, efficient, and high-quality dual row board connections.

Support and Services:

Our Board To Board Connector product is designed to provide reliable and high-performance connections between printed circuit boards in various electronic applications. For technical support and services, we offer comprehensive assistance including product selection guidance, installation instructions, troubleshooting tips, and custom configuration options to meet your specific requirements.

Technical documentation, including datasheets, application notes, and CAD models, is available to help you integrate the connector seamlessly into your designs. Our engineering team is ready to assist with any technical inquiries to ensure optimal performance and compatibility.

Should you encounter any issues or require warranty service, our support team is committed to providing prompt and effective solutions. Additionally, we offer repair and replacement services to maintain the integrity of your electronic assemblies.

For ongoing support, we recommend registering your product to receive updates on firmware, software tools, and new product releases that enhance functionality and reliability.

Packing and Shipping:

Our Board To Board Connectors are carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent any electrostatic discharge damage. These bags are then securely packed in sturdy, cushioned boxes designed to absorb shocks and vibrations.

For bulk orders, the connectors are organized in trays or reels to maintain order and prevent damage. All packages are clearly labeled with product information, batch numbers, and handling instructions to facilitate easy identification and inventory management.

We offer multiple shipping options to meet your delivery requirements, including standard ground shipping, expedited air freight, and international courier services. Our logistics team ensures timely dispatch and provides tracking information for all orders.

Special care is taken for international shipments to comply with customs regulations and to minimize any potential delays. We strive to deliver your Board To Board Connectors safely and promptly, maintaining the highest standards of quality throughout the packaging and shipping process.
