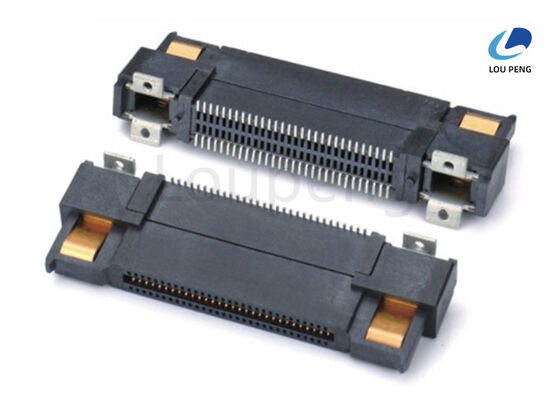

Ambient Temperature Range Minus 55ºC Plus 125ºC Electrical Board Connection Interface Featuring Insulation Resistance 1000MΩ Minimum for Power Management

Product Description:

The Board To Board Connector is a highly reliable and versatile interconnection solution designed for modern electronic assemblies. Engineered to meet the demands of advanced circuit designs, this connector is an ideal choice for applications requiring compact, efficient, and durable board-to-board connections. Available in multiple pitch options including 0.5mm, 0.8mm, and 1.0mm, it provides flexibility to suit various design requirements and space constraints. This range of pitches ensures compatibility with a wide array of printed circuit boards (PCBs), enabling designers to optimize their layouts without compromising on performance.

This Surface Mount Board Connector is crafted to deliver outstanding electrical and mechanical performance. With a voltage rating of up to 250V, it supports a broad spectrum of electronic applications from low voltage control circuits to higher voltage power modules. The connector’s design incorporates a maximum insertion force of 1.5N per pin, with an overall maximum insertion force of 40N for the entire connector assembly. This balance of firm contact and manageable insertion force ensures secure connections while facilitating easy assembly and maintenance.

One of the key features of this product is its dual row configuration, making it a Dual Row Board Connector that maximizes pin density without increasing the footprint significantly. This dual row design is particularly beneficial for high-density interconnections where space-saving and signal integrity are paramount. The connector’s stackable design further enhances its versatility, allowing it to be used in Stackable Board Connector Assemblies. This feature enables multiple PCBs to be connected in a stacked arrangement, which is essential in compact electronic devices where vertical space utilization is critical.

The connector is supplied in embossed tape packaging, which is optimized for automated pick and place machinery. This packaging format ensures efficient handling during the manufacturing process, reducing assembly time and minimizing the risk of damage. The ability to use automated placement techniques aligns with modern electronics manufacturing practices, facilitating high-volume production runs with consistent quality and reliability.

For customers considering initial evaluation or small-scale production, a trial order quantity of 2000 pieces is available. This allows engineers and designers to thoroughly test the connector in their applications before committing to larger production volumes. The trial order option reflects the manufacturer’s confidence in the product’s quality and performance, providing a practical pathway for adoption in various projects.

In summary, the Board To Board Connector offers an excellent combination of pitch options, electrical ratings, mechanical robustness, and manufacturing compatibility. Its surface mount technology, dual row configuration, and stackable assembly capability make it a standout choice for designers seeking efficient and reliable board-to-board interconnection solutions. Whether used in consumer electronics, industrial equipment, or communication devices, this connector meets the rigorous demands of contemporary electronic systems while supporting streamlined manufacturing processes.

Features:

• Product Name: Board To Board Connector
• Pitch options available: 0.5mm, 0.8mm, and 1.0mm
• Minimum Trial Order Quantity: 2000 Pcs
• Durability: Minimum 30 cycles
• Contact plating options: Gold Plated or Tin Plated
• Suitable for use as a PCB Board Interconnect Connector
• Available as a Surface Mount Board Connector
• Right Angle Board Connector configuration available

Technical Parameters:

Applications:

The Loupeng LP-BTB024 Board To Board Connector is an advanced high density board connector designed for versatile applications in modern electronic devices. Manufactured in China and certified with ISO-9001:2000, this connector ensures top-notch quality and reliability. Its compact surface mount board connector design makes it ideal for high-density circuit layouts where space optimization is critical. With a current rating of up to 3A per power pin and 0.3A per signal pin (max 5A total), it is suitable for both power and signal transmission within electronic assemblies.

This high density board connector is widely used in various industries, including telecommunications, consumer electronics, industrial automation, automotive electronics, and medical devices. Its robust contact resistance specifications—20mΩ max for power pins and 50mΩ max for signal pins—combined with an insulation resistance of 1000MΩ minimum, guarantee stable electrical performance even in demanding environments. The LP-BTB024's insertion force is carefully controlled at 1.5N per pin (40N max total), which ensures secure connections while facilitating ease of assembly and maintenance.

In practical application scenarios, the Loupeng LP-BTB024 excels in connecting multiple printed circuit boards (PCBs) within compact spaces such as laptops, smartphones, tablets, and other portable devices. Its surface mount board connector configuration supports automated production lines, reducing manufacturing time and cost. Additionally, it is an excellent choice for high-density backplane connections in network switches and servers where reliable signal integrity and power delivery are essential.

The product is supplied in reels, tubes, or trays to meet diverse packaging needs and is available at a competitive price of $0.06 per piece with a minimum order quantity of 1000PCS. Loupeng offers a supply ability of 100,000PCS, with a delivery time of 7 to 10 days, supporting payment terms via T/T or L/C. This makes the LP-BTB024 an ideal solution for manufacturers requiring a dependable, high-performance surface mount board connector in high volume production.

Overall, the Loupeng LP-BTB024 high density board connector is a reliable component that enhances electronic device performance, supports high-speed data transmission, and ensures efficient power management. Its design caters to the increasing demand for miniaturized and high-functionality electronic products, making it indispensable for engineers and manufacturers working on cutting-edge technology.

Customization:

Loupeng offers comprehensive product customization services for the Board To Board Connector, model number LP-BTB024. Manufactured in China and certified with ISO-9001:2000, this connector is designed to meet high-quality standards. We provide a minimum order quantity of 1000PCS with a competitive price starting at $0.06 per unit.

Our Board To Board Connector supports a voltage rating of up to 250V and comes in 2 rows with contact plating options including Gold Plated and Tin Plated finishes. The pitch options available are 0.5mm, 0.8mm, and 1.0mm, allowing for flexible customization based on your design needs.

Packaging options include Reel, Tube, and Tray to ensure safe and efficient delivery. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, we can meet both small and large volume demands efficiently. Payment terms include T/T and L/C for your convenience.

Our product lineup includes the Right Angle Board Connector, High Density Board Connector, and Stackable Board Connector Assembly, providing versatile solutions for various applications. Contact us to get the latest FOB price and discuss your specific customization requirements.

Support and Services:

For technical support and services related to the Board To Board Connector product, please refer to the product datasheet and user manual available on our website. Our support team is equipped to assist with installation guidelines, compatibility questions, and troubleshooting common issues.

We offer comprehensive warranty and repair services to ensure the reliability and performance of your Board To Board Connectors. Additionally, custom engineering support is available for specialized applications requiring tailored connector solutions.

For software tools, design resources, and FAQs, please visit the support section dedicated to Board To Board Connectors on our official site. Our technical experts continuously update these resources to provide the latest information and best practices.

We recommend reviewing all safety and handling instructions before installation to prevent damage and ensure optimal connector performance. Should you require further assistance, our technical support team is ready to provide timely and professional help to meet your project needs.

Packing and Shipping:

Our Board To Board Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags to prevent damage from electrostatic discharge. These bags are then placed in sturdy, cushioned cartons designed to absorb shocks and prevent movement inside the box.

For bulk orders, connectors are organized in trays or reels, depending on the product type, to maintain product integrity and facilitate easy handling upon receipt. All packaging materials are selected to be environmentally friendly and compliant with international shipping standards.

Shipping is handled through reliable carriers with tracking options available for all orders. We offer multiple shipping methods, including standard, expedited, and overnight delivery, to meet your specific needs. Upon shipment, you will receive a confirmation email with tracking details to monitor your package until it arrives safely at your destination.
