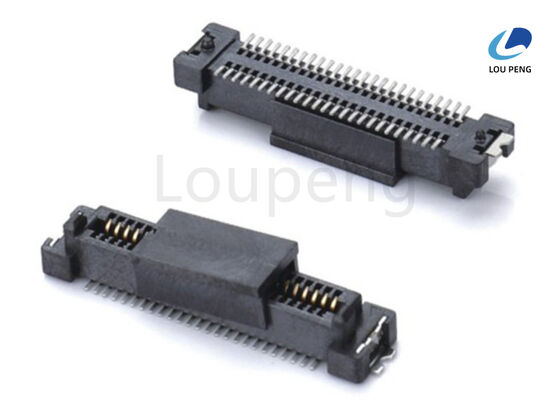

Up To 250V Board To Board Connector With Gold Plating Over Nickel Terminal And Post Material And Power Pin Contact Resistance 20mΩ Max

Product Description:

The Board To Board Connector is a highly reliable and versatile component designed for seamless electrical connections between two printed circuit boards (PCBs). Engineered to meet the demands of modern electronic applications, this connector ensures robust performance, superior durability, and ease of installation. Whether you are working on compact consumer electronics, industrial devices, or high-performance computing systems, the Board To Board Connector offers an efficient solution to your interconnection needs.

One of the key features of this Board To Board Connector is its insertion force specification, which is 1.5N per pin maximum, with a total insertion force not exceeding 40N. This low insertion force ensures that connections can be made securely without excessive mechanical stress, thereby preserving the integrity of both the connector and the PCBs. This attribute is essential for applications requiring frequent mating cycles or where delicate components are involved.

The insulator material used in this connector is high-quality polyester. Polyester is known for its excellent electrical insulating properties, mechanical strength, and resistance to heat and chemicals. The use of polyester as the insulator material guarantees reliable insulation between conductive parts, enhancing the overall safety and longevity of the connector. This material choice also supports the connector’s ability to function effectively in various environmental conditions.

The Board To Board Connector is available in multiple pitch options, including 0.5mm, 0.8mm, and 1.0mm. This range of pitch sizes allows designers to select the most appropriate connector based on their space constraints and electrical requirements. A smaller pitch like 0.5mm is ideal for high-density board layouts where space is at a premium, while the 1.0mm pitch is suited for applications where ease of handling and robust mechanical connection are priorities.

This product is categorized as a Through Hole Board Connector, which means it is designed to be mounted by inserting its pins through holes in the PCB and soldered on the opposite side. Through hole mounting provides excellent mechanical stability, making it suitable for applications subjected to mechanical stress or vibration. It also facilitates strong electrical connections, ensuring consistent performance over time.

In addition to being a Through Hole Board Connector, this product is also a Dual Row Board Connector. The dual row configuration doubles the number of connections within the same footprint compared to a single row connector, enabling more complex circuitry and signal routing. This arrangement is particularly beneficial in applications where space optimization and high connection density are critical.

Moreover, the Board To Board Connector is classified as a High Density Board Connector, offering a compact and efficient solution for inter-board connectivity. Its high-density design supports increased functionality and performance in modern electronic devices by maximizing the number of connections in a limited space. This feature is especially important in the development of miniaturized electronics and advanced communication devices.

For customers interested in pricing details, the FOB price is available upon request, allowing for flexible negotiation based on order volume and specific project requirements. This approach ensures that clients receive competitive pricing tailored to their needs while benefiting from a product that meets stringent quality and performance standards.

In summary, the Board To Board Connector is an excellent choice for engineers and designers seeking a dependable, high-performance connector solution. Its low insertion force, durable polyester insulator, multiple pitch options, and classification as a Through Hole, Dual Row, and High Density Board Connector make it a versatile component suitable for a wide array of electronic applications. Whether for prototype development or large-scale manufacturing, this connector provides the reliability and efficiency necessary to enhance your product’s connectivity and overall functionality.

Features:

• Product Name: Board To Board Connector
• Fob Price: Get Latest Price
• Current Rating: Up To 3A Per Contact
• Packing: Reel
• Trial Order: 2000 Pcs
• Durability: 30 Cycles (Minimum)
• Stackable Board Connector Assembly for flexible configurations
• Surface Mount Board Connector design for easy PCB mounting
• Right Angle Board Connector option for space-saving layouts

Technical Parameters:

Applications:

The Loupeng LP-BTB027 Board To Board Connector is an essential component designed for a variety of electronic applications requiring reliable and efficient connections between printed circuit boards. As a high-quality PCB Board Interconnect Connector, it offers excellent performance in both industrial and consumer electronic devices. Manufactured in China and certified with ISO-9001:2000, this connector ensures consistent quality and durability, making it a trusted choice for engineers and manufacturers alike.

This Stackable Board Connector Assembly is particularly suited for applications where space-saving and modular design are critical. Its compact design and stackable feature allow multiple printed circuit boards to be interconnected seamlessly, facilitating complex electronic system assemblies. The LP-BTB027 model supports a voltage rating of 50V, making it ideal for low to medium power electronic circuits. Its terminals and posts are made from copper alloy with gold plating over nickel, which provides excellent conductivity and corrosion resistance, ensuring long-term reliability.

The product’s insertion force is optimized at 1.5N per pin, with a maximum total force of 40N, allowing easy and secure mating without damaging the connector or the PCB. This makes the LP-BTB027 an excellent choice for applications requiring frequent board replacements or upgrades. Available with both gold plated and tin plated contact options, it can be customized to meet specific electrical and environmental conditions.

With a minimum order quantity of 1000PCS and a competitive price of 0.06 per piece, the LP-BTB027 is cost-effective for high-volume production. Packaging options including reel, tube, and tray provide flexibility for automated pick and place assembly lines, enhancing manufacturing efficiency. The embossed tape packaging further supports automated assembly processes, reducing labor costs and improving consistency.

Typical application occasions and scenarios for the Loupeng LP-BTB027 Printed Circuit Board Connector include telecommunications equipment, computer motherboards, consumer electronics, industrial control systems, and automotive electronics. It is widely used where reliable and compact board-to-board interconnections are critical, such as in stackable modules, multi-layer PCBs, and modular hardware designs. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, companies can rely on Loupeng for timely and efficient supply chain management.

Payment terms such as T/T and L/C make the procurement process flexible for international buyers. Overall, the Loupeng LP-BTB027 Board To Board Connector stands out as a dependable and versatile solution for modern electronic design and manufacturing, enabling seamless interconnection in a wide range of PCB-based applications.

Customization:

Loupeng offers customized Product Customization Services for the Board To Board Connector, model number LP-BTB027, originating from China. This product is certified with ISO-9001:2000, ensuring high quality and reliability.

We specialize in both Surface Mount Board Connector and Through Hole Board Connector types, providing versatile solutions for your PCB Board Interconnect Connector needs. Our connectors are designed for office equipment applications, with a voltage rating of 50V and durability of at least 30 cycles.

The minimum order quantity is 1000PCS, with a competitive price of $0.06 per piece. Packaging options include Reel, Tube, and Tray to suit your preferences, with standard packing on Reel.

We maintain a high supply ability of 100,000PCS and offer a delivery time of 7 to 10 days. Payment terms include T/T and L/C. For FOB price details, please contact us to get the latest price.

Support and Services:

Our Board To Board Connector product is designed to offer reliable and high-performance interconnection solutions for various electronic applications. For technical support, we provide comprehensive assistance including product selection guidance, installation instructions, troubleshooting, and maintenance tips to ensure optimal functionality.

Our support team is equipped to help with design-in questions, compatibility concerns, and customization requests to meet specific project requirements. We also offer detailed datasheets, application notes, and CAD models to facilitate seamless integration into your designs.

In addition, we provide after-sales services such as warranty support and repair options. Regular updates and technical bulletins are available to keep customers informed about product enhancements and best practices.

For service inquiries, please refer to our online resources or reach out through the appropriate channels to receive prompt and professional assistance tailored to your needs.

Packing and Shipping:

Each Board To Board Connector is carefully packaged to ensure maximum protection during transit. The connectors are placed in anti-static bags to prevent any electrostatic discharge damage. These bags are then securely packed in sturdy cardboard boxes with adequate cushioning materials to avoid any physical damage.

For bulk orders, the connectors are organized in trays or reels, depending on the product specifications, and then packed in labeled boxes for easy identification and handling.

All shipments are handled with care and dispatched through reliable courier services to guarantee timely and safe delivery to your specified address. Tracking information will be provided once the product is shipped.

We recommend inspecting the package upon receipt and contacting our customer service immediately if there are any issues with the product or packaging.
