Ambient Temperature Range Minus 55 Degrees Celsius to Plus 125 Degrees Celsius Board To Board Connector Durable Connection Solution

Product Description:

The Board To Board Connector is an essential component designed to provide reliable and efficient electrical connections between printed circuit boards (PCBs). This connector is engineered with precision to meet the demanding requirements of modern electronic applications, ensuring robust performance and durability. It is widely recognized as a Right Angle Board Connector, making it an ideal choice for applications where space-saving and optimal board-to-board alignment are critical.

One of the standout features of this High Density Board Connector is its impressive voltage rating of 50V. This rating ensures that the connector can safely handle moderate voltage levels commonly encountered in various electronic devices, providing a secure and stable connection without risk of electrical breakdown or failure. This makes it suitable for a broad range of applications, from consumer electronics to industrial equipment.

The electrical performance of the Board To Board Connector is further highlighted by its low contact resistance. The power pins exhibit a maximum contact resistance of 20mΩ, while the signal pins maintain a maximum of 50mΩ. These low resistance values are crucial for minimizing power loss and maintaining signal integrity, which is particularly important in high-speed or sensitive electronic circuits. This characteristic ensures that the connector supports efficient power transmission and reliable signal communication between interconnected PCBs.

In terms of safety and durability, the connector boasts a dielectric withstanding voltage of 250V AC for one minute. This specification indicates the connector’s ability to withstand high voltage stress without electrical breakdown, thereby enhancing its reliability in harsh environments or during transient voltage spikes. This level of dielectric strength is essential for preventing insulation failure and ensuring long-term operational safety.

Mechanical reliability is another critical aspect of the Board To Board Connector. It features a withdrawal force of 0.15N per pin minimum, which guarantees that once mated, the connector maintains a secure mechanical lock between the boards. This force rating prevents accidental disconnections due to vibrations or mechanical shocks, thus maintaining consistent electrical contact and system stability.

As a PCB Board Interconnect Connector, this product is designed for ease of use and versatility. Its right-angle configuration allows for efficient PCB stacking and layout optimization, making it a preferred choice in compact electronic assemblies where board real estate is limited. The high density design ensures that a large number of connections can be accommodated within a small footprint, facilitating complex circuit designs without compromising on performance or reliability.

For manufacturers and designers seeking competitive pricing, the FOB price for this Board To Board Connector can be obtained by contacting the supplier directly. This approach allows for tailored pricing based on order quantity, customization requirements, and shipping arrangements, ensuring cost-effective procurement aligned with project needs.

In summary, the Board To Board Connector stands out as a high-performance, reliable, and versatile solution for PCB interconnections. Its right angle design, combined with high density connectivity, low contact resistance, robust voltage ratings, and strong mechanical retention force, makes it an indispensable component for modern electronic systems. Whether used in consumer electronics, industrial automation, or communication devices, this PCB Board Interconnect Connector delivers exceptional quality and dependable operation.

Features:

• Product Name: Board To Board Connector
• Type: PCB Board Interconnect Connector
• Configuration: Dual Row Board Connector
• Orientation: Right Angle Board Connector
• Dielectric Withstanding Voltage: 250V AC for one minute
• Current Rating: Up to 3A per contact
• Insertion Force: 1.5N/pin max (40N max total)
• Packaging: Embossed tape packaging suitable for automated pick and place
• Delivery Methods: Air shipment, sea shipment, UPS, FEDEX, DHL

Technical Parameters:

Applications:

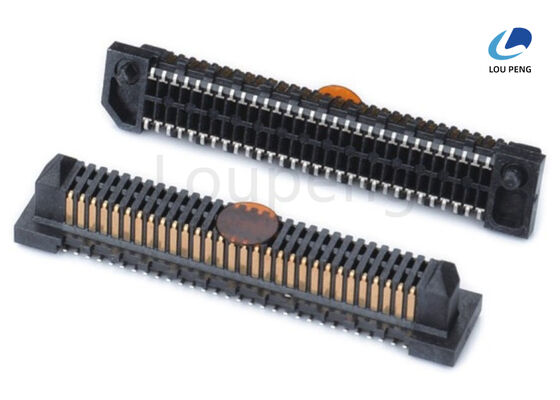

The Loupeng LP-BTB029 Board To Board Connector is a highly reliable and versatile component designed for various electronic applications. As a Dual Row Board Connector, it offers excellent electrical performance and mechanical stability, making it an ideal choice for complex circuit board interconnections. Manufactured in China under the ISO-9001:2000 certification, this connector ensures consistent quality and durability, meeting stringent industry standards.

This Board Mount Connector System is widely used in scenarios where compact and high-density connections are required. Its High Density Board Connector design supports efficient space utilization on PCBs, making it suitable for modern electronic devices that demand miniaturization without compromising performance. With a contact resistance of 20mΩ max for power pins and 50mΩ max for signal pins, it guarantees reliable signal transmission and power delivery even in demanding conditions.

Ideal application occasions for the LP-BTB029 include telecommunications equipment, consumer electronics, industrial control systems, and automotive electronics. In telecommunications, it facilitates secure and stable connections between multiple circuit boards, supporting high-speed data transfer. In consumer electronics such as laptops, tablets, and smart devices, the compact and durable design helps maintain device integrity under frequent usage.

Industrial control systems benefit from the connector’s wide ambient temperature range of -55ºC to +125ºC, ensuring stable operation in harsh environments. The durability rating of 30 cycles minimum ensures the connector can withstand multiple mating and unmating actions without performance degradation. Additionally, the connector’s contact plating options—gold plated or tin plated—offer flexibility for different environmental and electrical requirements.

The LP-BTB029 is packaged carefully in reel, tube, or tray formats, catering to various production line needs. With a minimum order quantity of 1000PCS and a competitive price of 0.06 USD per unit, it is cost-effective for large-scale manufacturing. The supply ability of 100,000 PCS and a delivery time of 7 to 10 days via air shipment, sea shipment, UPS, FEDEX, or DHL ensure timely fulfillment of orders. Payment terms include T/T and L/C, providing convenience and security for international buyers.

Overall, the Loupeng LP-BTB029 Board To Board Connector is an excellent solution for applications requiring a robust, high-density, and dual row board connector system. Its superior electrical performance, durability, and flexible packaging options make it a preferred choice in various electronic assembly scenarios, ensuring efficient and reliable board-to-board connections.

Customization:

Loupeng presents the LP-BTB029 Board To Board Connector, a high-quality PCB Board Interconnect Connector designed for reliable Electrical Board Connection Interface solutions. Manufactured in China and certified with ISO-9001:2000, this connector ensures superior performance and durability.

The LP-BTB029 features a right angle board connector design with 2 rows, supporting a voltage rating of 50V and a durability of at least 30 cycles. The terminals and posts are made from copper alloy with gold plating over nickel, guaranteeing excellent conductivity and corrosion resistance.

With a minimum order quantity of 1000PCS and a competitive price of $0.06 per piece, this product is ideal for mass production. Packaging options include reel, tube, or tray, allowing flexible shipment preferences.

Loupeng offers a supply ability of 100,000PCS with a delivery time of 7 to 10 days. Payment terms accepted are T/T and L/C, facilitating smooth transactions. For FOB pricing, please contact us to get the latest price.

Choose the LP-BTB029 Board To Board Connector for your next project to ensure a reliable and efficient right angle board connector solution for your electrical board connection interface needs.
