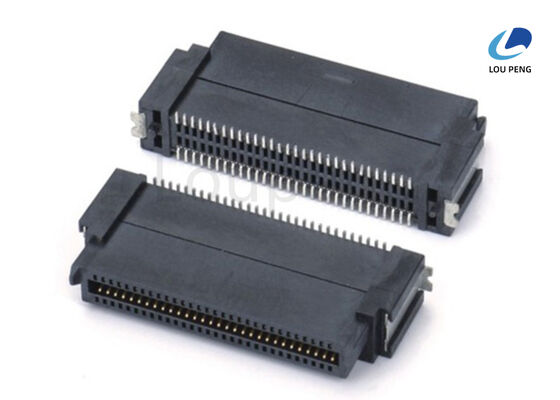

Gold Plating Over Nickel Terminal And Post Material Board To Board Connector Current Rating Up To 3A Per Contact Fob Get Latest

Product Description:

The Board To Board Connector is a highly versatile and reliable electronic component designed to facilitate secure and efficient connections between two printed circuit boards (PCBs). Engineered with precision, this connector is available in multiple plastic heights including 1.28mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.3mm, 3.7mm, 4.0mm, 5.0mm, 6.0mm, 6.5mm, 6.6mm, 7.0mm, 7.7mm, 7.8mm, 9.75mm, and up to 14.5mm, making it adaptable to a wide range of design requirements and applications.

One of the standout features of this Board To Board Connector is its low insertion force, designed to ensure ease of assembly and long-term reliability. The insertion force is rated at a maximum of 1.5N per pin, with a total maximum force of 40N, which helps reduce wear on both the connector and the PCB during mating and unmating cycles. This characteristic is especially beneficial in high-density board layouts where repeated connections are common.

The connector supports a current rating of up to 3A per contact, allowing it to handle a substantial amount of electrical load suitable for a variety of electronic devices and systems. This makes it an excellent choice for applications requiring reliable power delivery and signal integrity. The voltage rating of the connector is 50V, which provides adequate insulation and safety margins for most low to medium voltage electronic circuits.

Manufactured using high-quality materials, the terminal and post components of the connector are made from copper alloy and feature gold plating over a nickel base. This combination ensures excellent electrical conductivity, corrosion resistance, and durability, thereby enhancing the overall performance and lifespan of the connector. The gold plating reduces contact resistance and prevents oxidation, which is critical for maintaining signal integrity over time.

This Board To Board Connector series includes various configurations such as Surface Mount Board Connectors, Right Angle Board Connectors, and Dual Row Board Connectors. The Surface Mount Board Connector variant is designed for easy and efficient mounting on the surface of PCBs, enabling automated assembly processes and minimizing the overall footprint on the board. The Right Angle Board Connector offers a 90-degree mating orientation, ideal for space-constrained designs where boards need to be connected perpendicularly.

Additionally, the Dual Row Board Connector configuration provides a dense pin arrangement in two parallel rows, increasing the number of connections within a limited area. This is particularly useful in complex electronic assemblies where multiple signals or power lines must be routed between boards without compromising space or performance.

Overall, the Board To Board Connector is engineered to meet the rigorous demands of modern electronic design, providing a combination of flexibility, reliability, and high-performance electrical characteristics. Whether you require a low-profile connector for compact devices or a robust solution for industrial applications, this connector series offers a comprehensive range of options to suit diverse needs. Its precision construction, high-quality materials, and versatile configurations make it an indispensable component in the development of advanced electronic systems.

Features:

• Product Name: Board To Board Connector
• Insulator Material: Polyester
• Contact Resistance: Power Pin 20mΩ Max, Signal Pin 50mΩ Max
• Embossed Tape Packaging suitable for Automated Pick And Place
• Current Rating: Up To 3A Per Contact
• Dielectric Withstanding Voltage: 250V AC for One Minute
• Type: Through Hole Board Connector
• Application: PCB Board Interconnect Connector
• Design: Stackable Board Connector Assembly for flexible configurations

Technical Parameters:

Applications:

The Loupeng Board To Board Connector, model number LP-BTB025, is an essential component designed to provide a reliable electrical board connection interface in a wide range of electronic applications. Manufactured in China and certified under ISO-9001:2000, this connector meets stringent quality standards, ensuring consistent performance and durability. Its robust design includes an insulator made from high-quality polyester and a housing material crafted from LCP UL94V-0, offering excellent flame retardancy and mechanical strength. With a voltage rating of 50V, the LP-BTB025 is suitable for various low-voltage applications requiring efficient signal and power transmission.

This surface mount board connector is particularly ideal for use in printed circuit board (PCB) assemblies where space-saving and reliable connections are critical. The LP-BTB025 excels in environments where compactness and high-density electrical connections are required, such as consumer electronics, telecommunications equipment, industrial control systems, and computer peripherals. The connector’s contact resistance is optimized for both power pins (20mΩ max) and signal pins (50mΩ max), ensuring minimal signal loss and stable electrical performance over time.

Packaged in reels, tubes, or trays, the Loupeng LP-BTB025 caters to high-volume manufacturing processes, making it a perfect fit for automated assembly lines. With a supply ability of 100,000 pieces and a minimum order quantity of 1,000 pieces, it supports large-scale production demands. The competitive price of $0.06 per unit combined with a delivery time of 7 to 10 days and flexible payment terms including T/T and L/C further enhance its appeal for manufacturers looking for cost-effective and timely solutions.

The LP-BTB025 is widely applied in various scenarios such as connecting multiple printed circuit boards within compact electronic devices, facilitating modular designs in telecommunications hardware, and providing reliable interconnections in automotive electronics. Its surface mount board connector design simplifies installation and improves signal integrity, making it indispensable in modern electronic manufacturing where performance and reliability are paramount.

In summary, the Loupeng Board To Board Connector LP-BTB025 is a versatile and high-quality printed circuit board connector designed to meet the demands of contemporary electronics. Its superior materials, precise electrical characteristics, and optimized packaging make it an excellent choice for engineers and manufacturers seeking dependable electrical board connection interfaces.

Customization:

Loupeng proudly presents the LP-BTB025 Surface Mount Board Connector, a high-quality Stackable Board Connector Assembly designed for seamless integration in office equipment. Manufactured in China and certified to ISO-9001:2000 standards, this connector ensures reliability and performance.

With a minimum order quantity of 1000PCS and a competitive price of $0.06 per unit, the LP-BTB025 offers exceptional value. Packaging options include Reel, Tube, and Tray to suit your handling and assembly needs. Our supply ability reaches up to 100,000PCS, guaranteeing timely fulfillment of your orders.

The LP-BTB025 Surface Mount Board Connector features a durability of at least 30 cycles, a withdrawal force minimum of 0.15N per pin, and an insulation resistance of 1000MΩ minimum, ensuring long-lasting and stable connections. Delivery time is typically 7 to 10 days, with flexible payment terms including T/T and L/C.

Contact us now to get the latest FOB price and experience the superior quality and service of Loupeng’s Surface Mount Board Connector and Stackable Board Connector Assembly solutions for your next project.

Support and Services:

Our Board To Board Connector product is designed to provide reliable and efficient interconnections between printed circuit boards in various electronic applications. To ensure optimal performance and longevity of the connectors, it is important to follow the recommended handling and installation guidelines.

For technical support, please refer to the detailed datasheets and application notes available on our website. These documents include specifications, mechanical drawings, and recommended footprint patterns to assist in your design process.

If you require assistance with product selection, design integration, or troubleshooting, our technical support team is available to provide expert guidance. We recommend reviewing the electrical ratings, environmental conditions, and mating cycles to ensure compatibility with your application.

Additionally, our services include customized solutions to meet specific requirements, such as tailored pin configurations or alternative plating options. Please consult with our engineering team to explore these possibilities.

Regular maintenance and inspection of the connectors during operation can help prevent connection failures. Ensure that connectors are properly aligned and securely mated, and avoid exposure to contaminants or excessive mechanical stress.

We are committed to providing ongoing support throughout the lifecycle of the Board To Board Connector product to help you achieve reliable and high-quality electronic assemblies.

Packing and Shipping:

Our Board To Board Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags to prevent electrostatic discharge damage. These bags are then placed in sturdy, cushioned boxes designed to absorb shocks and vibrations.

For bulk orders, connectors are organized in trays or reels, securely wrapped, and packed in reinforced cartons to maintain product integrity. Clear labeling with product details and handling instructions is provided on each package.

We offer multiple shipping options to meet your delivery needs, including standard, expedited, and overnight services. All shipments are tracked, and customers receive timely updates until the product arrives safely at the destination.

Our commitment to quality packaging and reliable shipping ensures that your Board To Board Connectors reach you in perfect condition, ready for immediate use.
