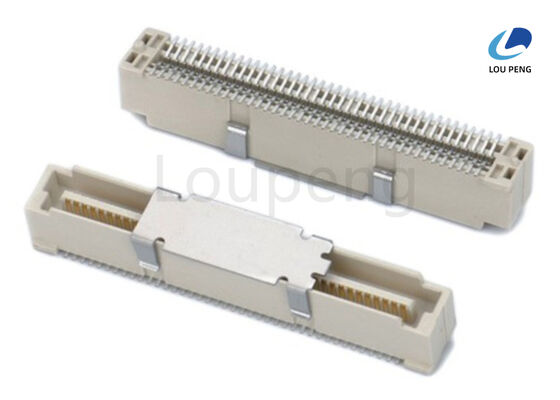

Embossed Tape Packaging Dual Row Board Connector Electrical Connection Solution Suitable for Automated Pick and Place Assembly Lines

Product Description:

The Board To Board Connector is an essential component designed to provide reliable and efficient electrical connections between two printed circuit boards (PCBs). This connector is widely used in various electronic applications where compactness, durability, and high-performance connectivity are paramount. Engineered with precision, the Board To Board Connector offers excellent electrical and mechanical properties, making it an ideal choice for modern electronic devices.

One of the standout features of this Board To Board Connector is its packaging in embossed tape, which is specifically designed for automated pick and place machines. This packaging method enhances the efficiency of assembly lines by enabling quick and accurate placement of the connectors on the PCB, significantly reducing production time and minimizing errors. Automated pick and place compatibility ensures that manufacturers can achieve high-volume production with consistent quality.

The insulator material used in the Board To Board Connector is high-quality polyester. Polyester is known for its excellent electrical insulating properties, mechanical strength, and resistance to heat and chemicals. The use of polyester as the insulator material ensures that the connector maintains stable performance even under demanding environmental conditions, contributing to the overall reliability and longevity of the electronic assembly.

Electrical safety and performance are critical for connectors, and this Board To Board Connector meets stringent dielectric standards. It boasts a dielectric withstanding voltage of 250V AC for one minute, which means it can safely withstand high voltage without breaking down or causing short circuits. This high dielectric strength protects sensitive electronic components from electrical faults and enhances the overall safety of the device in which it is installed.

Contact plating is another vital aspect of connector quality, affecting conductivity, corrosion resistance, and durability. This Board To Board Connector offers options for contact plating in gold or tin. Gold plating provides excellent corrosion resistance and superior electrical conductivity, making it suitable for high-reliability applications where signal integrity is critical. Tin plating, on the other hand, offers a cost-effective solution with decent conductivity and protection against oxidation, making it suitable for general-purpose applications.

The product is designed as a Surface Mount Board Connector, allowing for easy and efficient mounting directly onto the surface of the PCB without the need for through-hole soldering. This surface mount design supports compact and lightweight electronic assemblies, helping manufacturers achieve smaller device footprints and improved electrical performance due to reduced lead lengths.

Additionally, the Board To Board Connector is available in a Right Angle Board Connector configuration. This right-angle design is particularly useful in applications where space constraints require the connection between boards to occur at a 90-degree angle. It enables designers to optimize PCB layouts and create multi-layered assemblies that maximize space utilization without compromising connection integrity.

In summary, this Board To Board Connector is a versatile and high-quality component that combines advanced materials, reliable electrical properties, and user-friendly packaging. Its embossed tape packaging supports automated pick and place processes, the polyester insulator ensures durability and electrical insulation, and the gold or tin-plated contacts guarantee excellent conductivity and corrosion resistance. Whether you require a standard Surface Mount Board Connector or a specialized Right Angle Board Connector, this product is engineered to meet the rigorous demands of modern electronic manufacturing, delivering dependable performance and ease of assembly for a wide range of applications.

Features:

• Product Name: Board To Board Connector
• Housing Material: LCP UL94V-0 for excellent flame retardancy and durability
• Durability: Minimum 30 cycles ensuring reliable performance
• Fob Price: Get Latest Price
• Packing: Reel for efficient handling and storage
• Rating Current: Power pin supports 3A/contact, signal pin supports 0.3A/contact (max. 5A at total contact)
• Type: Printed Circuit Board Connector designed for high density applications
• Configuration: Dual Row Board Connector providing compact and efficient connections
• Feature: High Density Board Connector suitable for space-saving PCB designs

Technical Parameters:

This Board To Board Connector is ideal for applications requiring a reliable Board Mount Connector System, including both Through Hole Board Connector and Surface Mount Board Connector options.

Applications:

The Loupeng LP-BTB022 Board To Board Connector is an essential component in modern electronic assemblies, designed to facilitate reliable and efficient connections between printed circuit boards. As a high-quality Board Mount Connector System originating from China and certified under ISO-9001:2000 standards, this product guarantees durability and performance in a wide range of applications. With a voltage rating of up to 250V and a current rating of up to 3A per contact, the LP-BTB022 is well-suited for various electronic devices requiring stable electrical connections.

The Board To Board Connector is commonly used in industries such as telecommunications, computing, consumer electronics, automotive electronics, and industrial machinery. Its ability to maintain a dielectric withstanding voltage of 250V AC for one minute and an insertion force of 1.5N per pin (max 40N total) ensures secure and consistent contact, making it ideal for high-density electronic modules and systems. Whether it is for connecting motherboard components, expansion cards, or interface modules, this Board Mount Connector System offers excellent mechanical and electrical performance.

Designed for ease of use and mass production, the LP-BTB022 connector comes packaged in reels, tubes, or trays, catering to different manufacturing and assembly needs. With a minimum order quantity of 1000 pieces and a supply ability of up to 100,000 pieces, Loupeng ensures timely delivery within 7 to 10 days, supporting both trial orders of 2000 pieces and large-scale procurement. The competitive price of 0.06 per piece combined with flexible payment terms such as T/T and L/C makes it an economical and reliable choice for manufacturers.

In practical application scenarios, this Board Mount Connector System is invaluable in the assembly of compact and high-performance electronic products, including smartphones, tablets, industrial controllers, and automotive electronic control units. Its robust construction and precise engineering allow it to withstand harsh operating environments, making it suitable for both consumer and industrial applications where reliability is paramount. With the Loupeng LP-BTB022 Board To Board Connector, designers and engineers can achieve secure, high-quality interconnections that enhance product longevity and functionality.

Customization:

Loupeng offers customizable Board To Board Connector solutions with model number LP-BTB022, designed as a reliable PCB Board Interconnect Connector. Manufactured in China and certified with ISO-9001:2000, this Printed Circuit Board Connector ensures high quality and performance.

The connector features copper alloy terminals with gold plating over nickel, providing excellent conductivity and durability. It supports a current rating of up to 3A per contact and has a minimum withdrawal force of 0.15N per pin, ensuring secure connections on your PCB Board Interconnect Connector applications.

Our housing material is made from LCP with UL94V-0 rating, guaranteeing flame resistance and long-lasting reliability. We offer flexible packaging options including reel, tube, and tray to meet your production needs.

With a minimum order quantity of 1000PCS and a competitive price of $0.06 per piece, Loupeng can supply up to 100,000PCS with a delivery time of 7 to 10 days. Payment terms include T/T and L/C to facilitate smooth transactions.

For trial orders, we accept 2000 pieces, allowing you to evaluate the performance of our PCB Board Interconnect Connector before committing to larger quantities. Trust Loupeng for your Printed Circuit Board Connector needs with high supply ability and customizable service options.

Support and Services:

Our Board To Board Connectors are designed to provide reliable and efficient connections between printed circuit boards. For technical support, please refer to the product datasheet and installation guidelines available on our website. If you encounter any issues with the connector, ensure that the mating surfaces are clean and free from debris, and verify that the connector is properly aligned before mating.

For optimal performance, use the connectors within the specified temperature and humidity range as detailed in the product specifications. Avoid excessive mechanical stress during installation to prevent damage to the connector pins and housing.

We offer a range of services including custom configurations, application engineering support, and testing services to ensure the connector meets your specific requirements. Our technical team is available to assist with design-in support and troubleshooting to help integrate the Board To Board Connector into your application seamlessly.

Regular inspection and maintenance can extend the life of the connector. Please follow the recommended cleaning procedures and avoid using harsh chemicals that may degrade the connector materials.

Packing and Shipping:

Our Board To Board Connectors are carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent electrostatic discharge damage. These bags are then securely sealed and arranged in custom-designed foam inserts or compartments within sturdy cardboard boxes to minimize movement and impact.

For bulk orders, the connectors are organized in trays or reels, which are then packed into reinforced cartons with cushioning materials to safeguard against shocks and vibrations. All packaging materials are compliant with environmental standards and are designed to provide optimal protection while being eco-friendly.

Shipping is handled through reliable carriers with tracking options available for all shipments. We offer various shipping methods, including standard, expedited, and freight services, to meet our customers’ delivery requirements. Each package is labeled with clear product information and handling instructions to ensure safe and efficient delivery.

We prioritize timely dispatch and careful handling to guarantee that your Board To Board Connectors arrive in perfect condition, ready for immediate use in your applications.
