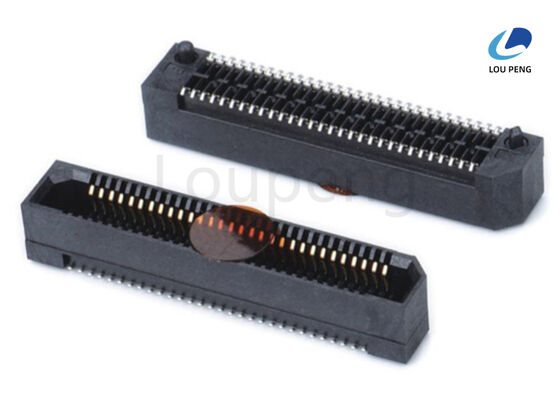

LCP Housing Material UL94V-0 Board To Board Connector Rated Current 3A Per Contact Power Pin Electrical Connection Solution

Product Description:

The Board To Board Connector is a high-quality electrical component designed to provide a reliable and efficient Electrical Board Connection Interface for various electronic applications. This connector is specifically engineered to meet the demanding requirements of office equipment, ensuring seamless integration and robust performance in printed circuit board assemblies. With its precise design and superior materials, the Board To Board Connector offers an optimal solution for establishing strong and stable connections between two printed circuit boards.

One of the key features of this connector is its two-row configuration, which allows for a compact yet effective connection interface. The dual-row design enhances the density of connections, making it ideal for applications where space is limited but a secure and dependable link between boards is essential. This makes it particularly suitable for modern office equipment that demands high functionality within constrained spaces.

The Board To Board Connector is a Surface Mount Board Connector, which means it is designed to be mounted directly onto the surface of printed circuit boards. This surface mount technology (SMT) facilitates automated assembly processes, improving manufacturing efficiency and consistency. The SMT design also contributes to a lower profile and reduced overall size of the electronic assembly, which is beneficial for compact devices.

In terms of electrical performance, this connector offers an insulation resistance of 1000MΩ minimum, ensuring excellent isolation between connections and minimizing the risk of electrical leakage or short circuits. This high insulation resistance is crucial for maintaining signal integrity and preventing interference in sensitive electronic circuits. Additionally, the connector can withstand a dielectric voltage of 250V AC for one minute, demonstrating its capability to endure high voltage stress without breakdown. This dielectric strength ensures that the connector can operate safely and reliably under varying electrical conditions commonly encountered in office equipment environments.

Another important aspect of the Board To Board Connector is its adaptability and ease of use. It is designed to provide a secure mechanical and electrical connection that can withstand vibrations and mechanical shocks, which are often present in office settings due to equipment movement and handling. This durability ensures long-term reliability and reduces maintenance needs, contributing to the overall efficiency and lifespan of the electronic devices in which it is used.

Moreover, the connector's design supports easy mating and unmating, facilitating quick assembly and disassembly during manufacturing or maintenance processes. This feature is particularly valuable in office equipment, where timely repairs and upgrades can significantly reduce downtime and operational disruptions.

Price-wise, the Board To Board Connector is competitively positioned in the market. Interested buyers are encouraged to contact the supplier to Get Latest Price information, ensuring they receive the most current and favorable pricing options based on order quantities and specific requirements. This flexibility makes the connector accessible for both small-scale prototyping and large-scale production runs.

In summary, the Board To Board Connector is an essential component for anyone seeking a reliable, efficient, and compact Printed Circuit Board Connector solution for office equipment applications. Its excellent electrical characteristics, robust mechanical design, and compatibility with surface mount technology make it an outstanding choice for creating durable and high-performance Electrical Board Connection Interfaces. Whether used in printers, copiers, or other office machinery, this connector delivers the quality and reliability needed to support modern electronic systems.

Features:

• Product Name: Board To Board Connector
• Insulator Material: Polyester
• Terminal and Post Material: Copper Alloy with Gold Plating over Nickel
• Contact Resistance: Power Pin 20mΩ Max, Signal Pin 50mΩ Max
• Current Rating: Up To 3A Per Contact
• Trial Order Quantity: 2000 Pcs
• Type: Board Mount Connector System
• Configuration: Right Angle Board Connector
• Assembly: Stackable Board Connector Assembly

Technical Parameters:

Applications:

The Loupeng Board To Board Connector, model number LP-BTB021, is a high-quality Printed Circuit Board Connector designed to meet the demanding needs of modern electronics manufacturing. Originating from China and certified under ISO-9001:2000, this connector ensures reliability and consistent performance in various industrial applications. With two rows and a contact resistance of 20mΩ max for power pins and 50mΩ max for signal pins, it offers excellent electrical conductivity and minimal signal loss, making it an ideal choice for sensitive electronic devices.

This Surface Mount Board Connector is engineered to operate efficiently within an ambient temperature range of -55ºC to +125ºC, ensuring durability and stable performance even in harsh environments. Its availability in packaging options such as reel, tube, and tray facilitates automated pick and place processes, streamlining production lines and reducing assembly time. The embossed tape packaging further enhances compatibility with automated surface mount technology (SMT) equipment, which is critical for high-volume manufacturing.

The Board To Board Connector LP-BTB021 is widely used in various application occasions and scenarios, including but not limited to telecommunications equipment, consumer electronics, industrial machinery, automotive electronics, and medical devices. Its compact design and surface mount feature allow it to be seamlessly integrated into densely populated circuit boards, providing reliable connections between printed circuit boards without compromising space.

With a minimum order quantity of 1000PCS and a competitive price of 0.06 per unit, Loupeng ensures both affordability and availability, supported by a supply ability of 100,000PCS. Delivery is prompt, typically within 7 to 10 days, and payment terms are flexible, accepting T/T and L/C, catering to diverse customer needs globally.

In summary, the Loupeng Board To Board Connector LP-BTB021 is a versatile and dependable Surface Mount Board Connector that excels in a wide range of industrial and commercial applications. Its robust design, certified quality, and efficient packaging make it an indispensable component for any project requiring reliable printed circuit board connections.

Customization:

Loupeng offers customized Board To Board Connector solutions with model number LP-BTB021, designed to meet diverse application needs. This Dual Row Board Connector features a high-density design, making it an ideal High Density Board Connector and PCB Board Interconnect Connector for compact and reliable electronic assemblies.

Manufactured in China and certified with ISO-9001:2000, the connectors are made from premium materials including LCP UL94V-0 housing and polyester insulator, ensuring durability and safety. The connectors support a dielectric withstand voltage of 250V AC for one minute, guaranteeing excellent electrical performance.

We offer flexible packaging options including Reel, Tube, and Tray to suit your production requirements. With a minimum order quantity of 1000PCS and a competitive price of $0.06 per piece, Loupeng ensures both quality and affordability.

Our supply ability reaches up to 100,000PCS, with a delivery time of 7 to 10 days. Payment terms include T/T and L/C for your convenience. Delivery methods available are Air Shipment, Sea Shipment, UPS, FEDEX, and DHL to provide efficient and reliable shipping options worldwide.

Choose Loupeng’s LP-BTB021 Board To Board Connector for your projects requiring reliable Dual Row Board Connectors, High Density Board Connectors, and PCB Board Interconnect Connectors with superior quality and service.
