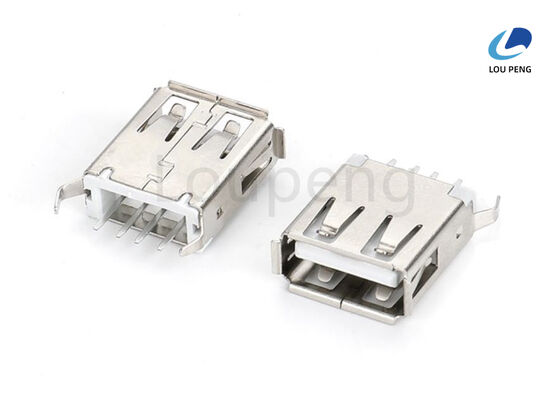

Copper Alloy With Gold Or Nickel Plating Universal Serial Bus Connector IP67 Protection Level Suitable For Outdoor And Rugged

Product Description:

The USB Connector is an essential component designed to facilitate seamless and reliable connections between various electronic devices. Serving as an External Device Connection Port, this USB Connector ensures efficient data transfer and power delivery, making it an indispensable part of modern computing and electronic systems. Its robust construction and high-quality materials guarantee durability and performance under a wide range of operating conditions.

One of the standout features of this USB Connector is its Au Plated contacts available in 1U, 15U, and 30U configurations. The gold plating on the contacts not only enhances conductivity but also provides superior resistance to corrosion and wear. This results in a stable and consistent connection over prolonged usage, which is critical for maintaining the integrity of data transmission and device functionality.

Designed to handle an overall insertion force with a maximum of 3.57 kgf, this connector strikes an optimal balance between secure attachment and ease of use. Users can connect and disconnect devices without undue effort, reducing the risk of damage to the connector or the connected device. This feature is particularly important in environments where devices are frequently connected and disconnected, such as in professional and industrial applications.

The USB Connector supports a wide operating temperature range from -55°C to 85°C, making it suitable for use in a variety of environments, including harsh industrial settings and outdoor applications. This extensive temperature tolerance ensures that the connector maintains its performance and reliability even under extreme thermal conditions, providing users with confidence in its durability and long-term operation.

Another critical attribute of this USB Peripheral Connection Interface is its outstanding electrical insulation properties. With an insulator resistance rating of at least 1000 MΩ, the connector effectively prevents electrical leakage and interference, which can otherwise compromise signal integrity and device safety. This high insulator resistance contributes to the overall reliability of the USB communication port connector by safeguarding against potential electrical faults.

Additionally, the connector is designed to withstand dielectric stresses up to AC 100V, ensuring that it can operate safely under common electrical conditions without breakdown or failure. This dielectric withstanding capability is crucial for maintaining safe and stable operation in various electronic systems, further enhancing the connector’s suitability for a broad range of applications.

As a USB Communication Port Connector, this product supports seamless integration with a variety of USB-enabled devices, including computers, peripherals, and other electronic gadgets. Its design is optimized to facilitate quick and secure connections, enabling users to easily establish a reliable communication link between their devices. This makes it an ideal choice for both personal and professional use, where dependable USB connectivity is a priority.

Overall, this USB Connector provides an excellent solution for anyone looking to establish a high-quality External Device Connection Port or USB Peripheral Connection Interface. Its combination of Au plated contacts, robust mechanical properties, wide operating temperature range, high insulator resistance, and strong dielectric withstanding capability ensures superior performance, reliability, and longevity. Whether used in consumer electronics, industrial equipment, or specialized communication systems, this USB Connector delivers consistent and dependable connectivity, making it a vital component in modern electronic device design and usage.

Features:

• Product Name: USB Connector
• Contact Impedance: 30mΩ MAX
• Shell Material: Copper Alloy and Steel
• Protection Level: IP67
• Insulation Resistance: 100 Megohms Min.
• Current Rating: 1.5A to 5A
• Designed as a USB Data Transfer Connector for efficient data communication
• Functions as a Universal Serial Bus Connector compatible with various devices
• Serves as an External Device Connection Port for seamless connectivity

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U054, is a highly reliable and versatile Standard USB Plug Connector designed and manufactured in China. Certified with ISO-9001:2000, this product guarantees quality and consistency, making it an ideal choice for a wide range of applications in various industries. The USB connector is engineered to support both through hole and surface mount (SMT) assembly types, providing flexibility for manufacturers to integrate it into different electronic devices with ease.

This USB connector serves as a crucial USB Peripheral Connection Interface, enabling seamless connectivity between computers, laptops, mobile devices, and numerous USB peripherals such as keyboards, mice, printers, and external storage devices. With a current rating that ranges from 1.5A to 5A, and specific contact current ratings of 3.0A for the VBUS and its corresponding GND pin, as well as a minimum of 0.25A for all other contacts, the LP-U054 ensures stable power delivery and data transfer performance in demanding environments.

The LP-U054 USB connector is particularly suitable for high-volume manufacturing, given its supply ability of up to 1,000,000 pieces and a minimum order quantity of 1000PCS. This makes it a perfect fit for large-scale production lines in the consumer electronics, computer hardware, and communication device sectors. Its packaging options, including reel, tube, and tray, cater to automated assembly processes, enhancing efficiency and reducing handling time.

With an insulator resistance of 1000MΩ minimum, the LP USB connector assures excellent electrical insulation and durability, which is essential for maintaining signal integrity and device safety over prolonged usage. The solder assembly method further contributes to robust mechanical and electrical connections, ensuring reliable long-term operation of the USB Peripheral Connection Interface.

The LP-U054 is widely used in scenarios such as desktop and laptop manufacturing, peripheral device assembly, embedded systems, and consumer electronics repair and upgrade services. Its standard USB plug design allows for easy integration into existing systems, making it a go-to solution for engineers and technicians seeking dependable USB connectors. Additionally, with competitive pricing at just 0.01 per unit and flexible payment terms including T/T and L/C, the LP USB connector offers excellent value for both small and large enterprises.

Furthermore, with a delivery time of 7 to 10 days, businesses can maintain steady production schedules and meet market demands without delay. Whether it’s for new product development or replacement parts, the LP-U054 Standard USB Plug Connector stands out as a trusted component in the USB Peripheral Connection Interface market.

Customization:

Our USB Connector product, model number LP-U054, under the trusted brand LP, offers exceptional customization services to meet your specific requirements. Manufactured in China and certified with ISO-9001:2000, this USB Communication Port Connector ensures high quality and reliability for your applications.

With a minimum order quantity of 1000PCS and a competitive price of $0.01 per unit, we provide flexible packaging options including Reel, Tube, and Tray to suit your logistics needs. Our supply ability reaches up to 1,000,000PCS, guaranteeing timely delivery within 7 to 10 days after order confirmation.

The LP-U054 features an insulation impedance of 100MΩ minimum at 250V DC and an insulator resistance of 1000MΩ minimum, ensuring stable electrical performance. The connector insertion force ranges from 5 to 20N at a maximum rate of 12.5mm per minute, with an overall insertion force not exceeding 3.57kgf.

This Compact USB Connection Interface supports a plug/unplug connecting mode, making it ideal for various USB communication applications that require a reliable and compact connection solution.

Payment terms include T/T and L/C, providing you with convenient and secure transaction options. Choose our USB Communication Port Connector to benefit from a compact USB connection interface tailored to your production and design needs.

Support and Services:

For technical support and services related to the USB Connector product, please refer to the comprehensive user manual included with your purchase. Our support team is dedicated to providing assistance with installation, troubleshooting, and maintenance to ensure optimal performance of your USB Connector.

We offer a range of services including firmware updates, compatibility guidance, and replacement parts for defective units covered under warranty. Detailed technical documentation and FAQs are available on our official website to help you resolve common issues quickly and efficiently.

If you require personalized support, our technical specialists are available to guide you through complex configurations and advanced usage scenarios. We recommend registering your product online to receive timely updates and service notifications.

Our commitment is to deliver high-quality support and ensure your complete satisfaction with the USB Connector product throughout its lifecycle.

Packing and Shipping:

Each USB Connector is carefully packaged in a durable, anti-static blister pack to ensure protection against damage and electrostatic discharge during transit. The packaging includes a clear window for easy product identification and a secure backing card with product specifications and usage instructions.

For shipping, all USB Connectors are placed in protective cushioning materials within sturdy corrugated boxes to prevent movement and impact. Multiple units are packed in bulk cartons with proper labeling, including handling instructions and barcodes for efficient inventory management. Our shipping process ensures that the product reaches you safely and in perfect working condition.
