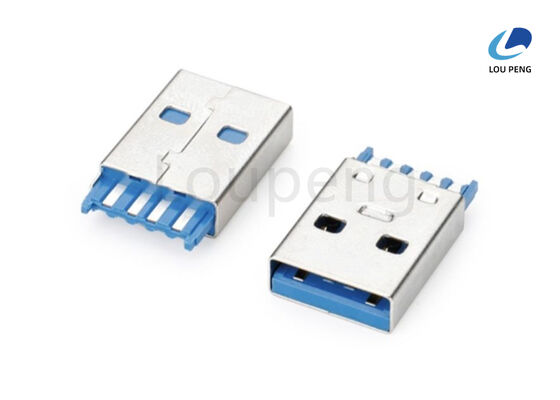

Durability 10000 Cycles USB Data Transfer Connector Suitable for Temperature Range 55°C To 85°C and Data Transmission Solution

Product Description:

The USB Connector is a highly reliable and efficient component designed to serve as a USB Communication Port Connector, External Device Connection Port, and USB Data Transfer Connector. Engineered with precision and durability in mind, this connector ensures seamless connectivity and optimal performance for a wide range of electronic devices.

One of the standout features of this USB Connector is its superior electrical performance. It boasts an impressive contact resistance specification, with a maximum of 40 milliohms for VBUS and GND contacts, and 50 milliohms max for other contacts. This low contact resistance is critical for maintaining stable and efficient power delivery and data transmission, minimizing signal loss, and ensuring consistent device performance during use.

In addition to its excellent electrical properties, the USB Connector is fully compliant with environmental and safety standards. It meets the RoHS (Restriction of Hazardous Substances) directive, which means it is manufactured without the use of hazardous materials such as lead, mercury, and cadmium. Furthermore, the connector is halogen-free compliant, contributing to a safer and more environmentally friendly product lifecycle. These compliances make the USB Connector a responsible choice for manufacturers and end-users who prioritize sustainability and regulatory adherence.

The insulator material used in the USB Connector is a blend of PBT (Polybutylene Terephthalate) and LCP (Liquid Crystal Polymer) with 30% glass fiber reinforcement, rated UL94V-0 for flammability. This combination provides excellent mechanical strength, high thermal stability, and superior resistance to chemical and environmental stress. The UL94V-0 rating ensures that the connector exhibits self-extinguishing properties, enhancing safety in case of electrical faults or overheating.

In terms of mechanical characteristics, the USB Connector is designed to offer a robust yet user-friendly experience. The overall insertion force required to connect the USB Communication Port Connector is capped at 3.57 kgf maximum, ensuring that users can insert the connector smoothly without excessive effort. Conversely, the overall pull-out force is a minimum of 1.02 kgf, which guarantees that the connector remains securely attached during operation, preventing accidental disconnections while still allowing for intentional removal when necessary.

Thanks to its combination of low contact resistance, environmentally safe materials, and reliable mechanical performance, this USB Connector is ideally suited for a wide range of applications. It is an excellent choice for manufacturers looking to implement a dependable External Device Connection Port or USB Data Transfer Connector in their products, including computers, peripherals, consumer electronics, and industrial equipment.

In summary, this USB Connector delivers a perfect balance of electrical efficiency, safety compliance, and mechanical durability. Its low contact resistance ensures high-quality power and data transmission, while the RoHS and halogen-free compliance make it environmentally responsible. The robust insulator materials and optimized insertion and pull-out forces add to its longevity and user-friendly design. Whether used as a USB Communication Port Connector for everyday electronics or as a reliable External Device Connection Port in more demanding environments, this USB Connector stands out as a premium component engineered for performance and sustainability.

Features:

• Product Name: USB Connector
• Assembly Type: Solder
• Insulation Impedance: 100MΩ MIN at 250V DC
• Shell Plating: Ni Plated
• Connecting Mode: Plug/unplug
• Connector Insertion Force: 5~20N at a maximum rate of 12.5mm per minute
• Universal USB Interface Connector suitable for various devices
• Designed as an External Device Connection Port for easy accessibility
• Reliable USB Data Transfer Connector for stable and efficient data communication

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U052, is a high-quality Universal Serial Bus Connector designed and manufactured in China with ISO-9001:2000 certification. This male and female USB connector is engineered to provide reliable and efficient connectivity solutions for a wide range of electronic devices. Its robust construction, featuring a shell made of copper alloy and steel, ensures durability and long-lasting performance in various application scenarios.

One of the primary application occasions for the LP-U052 USB Connector is as an External Device Connection Port in consumer electronics such as laptops, desktops, tablets, and smartphones. It facilitates seamless connection between the host device and peripherals like keyboards, mice, printers, external storage devices, and cameras. This USB Data Transfer Connector supports efficient data transmission with a contact resistance of 40 milliohms max for VBUS and GND contacts and 50 milliohms max for other contacts, ensuring stable and fast data transfer rates.

In industrial and commercial environments, the LP-U052 USB Connector is widely used in embedded systems, point-of-sale terminals, and medical devices where reliable external device connectivity is critical. Its overall pull-out force of 1.02kgf minimum guarantees secure mating and unmating cycles, reducing the risk of accidental disconnections. The connector’s selective plating on contacts enhances corrosion resistance and signal integrity, which is essential for maintaining consistent performance in demanding conditions.

The LP-U052 USB Connector is also ideal for consumer electronics manufacturers and assembly lines due to its flexible packaging options, including reel, tube, and tray formats. This facilitates efficient handling and integration into automated production processes. With a supply ability of 1,000,000 pieces and a minimum order quantity of 1000PCS, LP is well-equipped to meet large-scale manufacturing demands. The connector is competitively priced at 0.01 USD per piece, with a delivery time of 7 to 10 days, making it a cost-effective solution for mass production.

Payment terms such as T/T and L/C provide flexible transaction options for global customers. Whether for new product development, repair and maintenance, or upgrading existing devices, the LP-U052 USB Connector serves as a reliable Universal Serial Bus Connector that enhances device connectivity and data transfer efficiency across diverse application occasions and scenarios.

Customization:

Our LP brand USB Connector, model number LP-U052, is a high-quality Male Female USB Connector designed and manufactured in China. Certified with ISO-9001:2000, this Universal Serial Bus Connector guarantees reliability and durability for various applications. With a minimum order quantity of 1000PCS and a competitive price of 0.01 per unit, it is an excellent choice for bulk purchases.

This USB Communication Port Connector features superior materials, including copper alloy with gold or nickel plating for the contacts and a robust copper alloy and steel shell. It offers excellent electrical performance with an insulator resistance of 1000MΩ minimum and a contact impedance of 30mΩ maximum, ensuring optimal signal integrity for USB power and data transmission.

Our packaging options include Reel, Tube, or Tray to suit your assembly line requirements. We provide a fast delivery time of 7 to 10 days and flexible payment terms including T/T and L/C. With a supply ability of up to 1,000,000PCS, we can meet large-scale production demands.

Choose the LP-U052 USB Connector for a reliable USB Power and Data Connector solution that meets international quality standards and supports efficient USB communication in your devices.

Support and Services:

For technical support and service inquiries related to our USB Connector products, please refer to the product manual and installation guide provided with your purchase. Our support team is dedicated to helping you resolve any issues and answer questions about product specifications, compatibility, and installation procedures.

If you experience any difficulties with the USB Connector, ensure that all connections are secure and that your device drivers are up to date. For advanced troubleshooting, please consult our online resources, including FAQs, troubleshooting tips, and user forums available on our official website.

We offer warranty services for all USB Connector products. If your product requires repair or replacement, please review the warranty terms and conditions. Keep your purchase receipt and product serial number handy when requesting service to expedite the process.

Our customer service team is committed to providing timely and effective support to ensure your satisfaction. For additional assistance, please visit our support portal for product updates, software downloads, and detailed technical documentation.

Packing and Shipping:

Each USB Connector is carefully packaged in a protective blister pack to ensure it remains safe during transit. The packaging includes a clear display window to showcase the product, along with detailed specifications and usage instructions printed on the back.

For shipping, the USB Connectors are securely placed in sturdy cardboard boxes with cushioning materials to prevent damage. We use reliable courier services to deliver the products promptly and provide tracking information for every shipment to ensure a smooth delivery experience.
