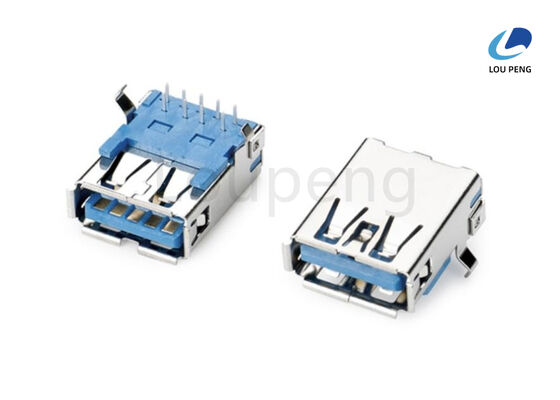

Current Rating 1.5A To 5A External Device Connection Port Solder Assembly Ideal Choice For Electronic Device Integration

Product Description:

The USB Connector is a high-performance and reliable component designed to facilitate seamless data transfer and power delivery in a wide range of electronic devices. Engineered with a compact USB connection interface, this connector offers an efficient and standardized solution that meets the demanding requirements of modern technology. Its robust construction and advanced materials ensure durability, safety, and optimal electrical performance, making it an ideal choice for manufacturers and users seeking a dependable universal serial bus connector.

One of the standout features of this USB connector is its insulator material, composed of PBT or LCP combined with 30% glass fiber reinforcement (G.F), and certified to UL94V-0 standards. This combination not only provides excellent mechanical strength and thermal stability but also offers superior resistance to flame and electrical insulation. The use of high-quality insulator materials guarantees that the connector maintains its integrity under various environmental conditions, ensuring long-lasting performance and safety compliance.

Designed to support the latest USB specifications, this standard USB plug connector enables data transfer speeds of up to 10 Gbps, corresponding to the USB 3.1 standard. This high-speed data transmission capability allows for rapid file transfers, smooth streaming, and efficient communication between devices, significantly enhancing user experience. Whether used in computers, peripherals, or consumer electronics, the connector ensures fast and reliable data exchange without bottlenecks.

The USB connector is plated with 1 micron (1 U) of a protective layer, which enhances its resistance to corrosion and wear, thereby extending the connector’s lifespan. The plating also ensures consistent electrical conductivity, minimizing signal loss and maintaining stable connections over time. This attention to detail in the plating process reflects the product’s commitment to quality and reliability.

In terms of electrical performance, the connector boasts low contact resistance values to guarantee efficient power and data transmission. Specifically, the contact resistance is rated at a maximum of 40 milliohms for VBUS and GND contacts, and 50 milliohms for all other contacts. These low resistance levels help reduce energy loss and heat generation, contributing to the overall efficiency and safety of the device in which the connector is used.

Power handling is another key aspect of this USB connector. It supports current ratings ranging from 1.5A to 5A, accommodating various power delivery needs for different devices. Whether supplying power to small peripherals or charging larger gadgets, the connector’s current rating flexibility ensures compatibility with a broad spectrum of applications, making it a versatile component in any USB-enabled system.

Overall, this USB connector represents a perfect blend of compact design, high-speed data transfer capabilities, and robust electrical and mechanical properties. Its compact USB connection interface allows for space-saving integration into devices without compromising performance. As a standard USB plug connector, it ensures compatibility with a vast array of USB ports and cables, providing users with a universal serial bus connector that meets industry standards and user expectations.

In conclusion, this USB connector is an essential component for anyone looking to achieve reliable, high-speed, and safe USB connections. Its advanced insulator materials, impressive data transfer speeds of up to 10 Gbps, precise plating, low contact resistance, and flexible current ratings make it the ideal choice for modern electronic devices. By incorporating this universal serial bus connector, manufacturers can deliver products that offer superior connectivity, durability, and user satisfaction across diverse applications and environments.

Features:

• Product Name: USB Connector
• Compact USB Connection Interface for easy integration
• High Speed USB Connector with data transfer speeds up to 10 Gbps (USB 3.1)
• USB Power and Data Connector supporting efficient power delivery and reliable data transmission
• Assembly: Solder type for secure and durable connections
• Connector is RoHS Compliant and Halogen Free Compliant, ensuring environmental safety
• Shell plated with Ni Plated finish for enhanced durability and corrosion resistance
• Plated with 1 U for high-quality surface protection

Technical Parameters:

Applications:

The LP USB Connector, model number LP-U050, is a highly reliable and versatile USB Communication Port Connector designed to meet the rigorous demands of modern electronic devices. Manufactured in China under the strict quality standards of ISO-9001:2000 certification, this connector ensures premium quality and performance. With a minimum order quantity of 1000PCS and a competitive price of 0.01 per unit, it is an ideal choice for large-scale production and manufacturing needs.

This Standard USB Plug Connector supports data transfer speeds of up to 10 Gbps, compliant with USB 3.1 specifications, making it perfect for high-speed data transmission applications. Its robust design includes an overall insertion force of 3.57kgf MAX and a protection level rated at IP67, ensuring durability and resistance against dust and water ingress. This makes the LP-U050 suitable for use in harsh environments where reliability is critical.

The Universal Serial Bus Connector is engineered with copper alloy material, plated with either gold or nickel, providing excellent conductivity and corrosion resistance. It supports multiple mounting types including Through Hole, Surface Mount, and SMT, giving manufacturers flexibility in assembly processes. The packaging options available—Reel, Tube, and Tray—facilitate efficient handling and integration into automated production lines.

Ideal application occasions for the LP-U050 USB Connector include consumer electronics, computer peripherals, industrial equipment, automotive electronics, and communication devices. It fits perfectly in devices requiring fast and stable USB connections such as external hard drives, USB hubs, docking stations, and media players. The connector’s IP67 rating also makes it suitable for rugged outdoor equipment and portable devices used in demanding environments.

In scenarios where mass production and timely delivery are essential, the LP brand ensures a supply ability of 1,000,000PCS with a delivery time of just 7 to 10 days. Payment terms such as T/T and L/C provide flexible transaction options for international buyers. Overall, the LP-U050 USB Communication Port Connector is an excellent component for manufacturers seeking a high-performance, durable, and cost-effective Standard USB Plug Connector for a wide range of electronic applications.

Customization:

Introducing the LP USB Connector, model number LP-U050, a high-quality USB Communication Port Connector designed and manufactured in China. Certified with ISO-9001:2000, this Universal USB Interface Connector ensures reliability and performance for various applications.

With a minimum order quantity of 1000PCS and a competitive price of $0.01 per unit, this USB Communication Port Connector is ideal for bulk purchasing. The product supports current ratings from 1.5A to 5A, providing flexible power options to meet your device requirements.

The connector features a connector extraction force ranging from 8 to 20N at a maximum rate of 12.5mm per minute, ensuring secure and stable connections. It comes with multiple mounting types including Through Hole, Surface Mount, and SMT to accommodate diverse assembly processes.

Packaging options include Reel, Tube, and Tray, tailored to your logistics preferences. With a supply ability of 1,000,000PCS and a delivery time of 7 to 10 days, we guarantee timely fulfillment of your orders.

Data transfer speeds reach up to 10 Gbps (USB 3.1), making this USB Communication Port Connector suitable for high-speed data transmission needs. The connector plating is rated at 1 U, ensuring durability and corrosion resistance.

Payment terms are flexible, accepting T/T and L/C methods to facilitate smooth transactions. Choose the LP-U050 USB Communication Port Connector for a reliable and universal USB interface solution.

Support and Services:

For technical support and services related to the USB Connector product, please refer to the product manual and troubleshooting guide included with your purchase. Our support team is available to assist with installation, configuration, and any operational issues you may encounter. We recommend ensuring that your device drivers are up to date and that your USB Connector is compatible with your hardware and operating system. For warranty information, repairs, and replacement parts, please consult the warranty section of the product documentation. Additional resources, including FAQs and software downloads, can be found on our official website.

Packing and Shipping:

Each USB Connector is carefully packaged in a durable, anti-static blister pack to ensure protection against damage and electrostatic discharge during transit. The packaging includes a clear label with product specifications and compatibility information for easy identification.

For shipping, the USB Connectors are securely placed in cushioned boxes with adequate padding to prevent movement and impact. All shipments are handled with care and tracked to ensure timely and safe delivery to our customers worldwide.
