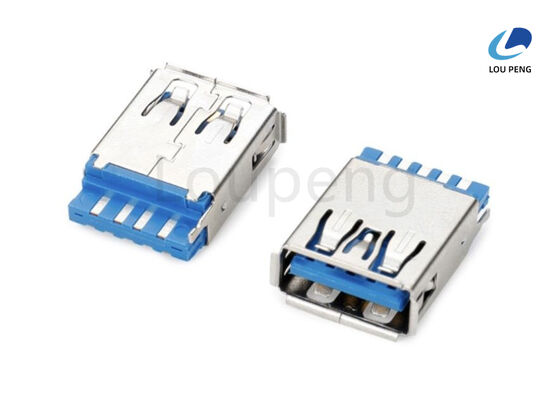

Current Rating 1.5A To 5A USB Connector with Selective Plating Contact and PBT LCP Plus 30 Percent Glass Fiber Insulator Material UL94V-0

Product Description:

The Universal USB Interface Connector is a high-quality, reliable solution designed to meet the demanding requirements of modern electronic devices. Engineered with precision, this USB Power and Data Connector ensures seamless connectivity and efficient power transmission, making it an indispensable component for a wide range of applications. Whether you are developing consumer electronics, industrial equipment, or computer peripherals, this Universal Serial Bus Connector offers outstanding performance and durability.

One of the standout features of this Universal USB Interface Connector is its robust construction. The shell is crafted from a combination of copper alloy and steel, providing excellent mechanical strength and superior resistance to wear and corrosion. This sturdy shell ensures that the connector maintains a secure and stable connection over extended periods of use, even in demanding environments. The use of copper alloy also contributes to optimal electrical conductivity, which is critical for efficient power delivery and data transmission.

To enhance durability and reliability, the connector undergoes a plating process with a thickness of 1 micron (1 U). This plating not only improves corrosion resistance but also ensures consistent electrical contact quality. As a result, users can expect reduced signal loss and improved overall performance of their USB Power and Data Connector installations.

Safety and performance are further assured by rigorous pressure resistance testing. This Universal Serial Bus Connector has been tested to withstand voltages up to 250V AC, demonstrating its capability to handle electrical stress without compromising insulation or functionality. Such testing guarantees that the connector can operate safely within the specified electrical parameters, providing peace of mind to manufacturers and end-users alike.

The insulation impedance of the connector is another critical attribute that highlights its quality. With a minimum insulation resistance of 100 megaohms (100MΩ) at 250V DC, this Universal USB Interface Connector effectively prevents electrical leakage and interference. High insulation impedance is essential for maintaining signal integrity and ensuring that data transmitted through the USB connection is accurate and free from noise.

The insulator material used in this USB Power and Data Connector is a blend of PBT (Polybutylene Terephthalate) and LCP (Liquid Crystal Polymer) reinforced with 30% glass fiber (G.F). This combination, compliant with the UL94V-0 flammability rating, provides excellent thermal stability, mechanical strength, and resistance to high temperatures. The use of PBT/LCP+30%G.F ensures that the connector can withstand harsh operational conditions without deforming or degrading, thus extending its service life and reliability.

Designed to meet industry standards and user expectations, this Universal Serial Bus Connector is compatible with a wide range of USB devices, supporting both power delivery and data communication. Its precise engineering and high-quality materials make it an ideal choice for manufacturers looking to deliver superior products that stand the test of time.

In summary, the Universal USB Interface Connector combines advanced materials, rigorous testing, and meticulous design to provide a USB Power and Data Connector that excels in performance, durability, and safety. Its copper alloy and steel shell, 1-micron plating, high insulation impedance, and flame-retardant insulator material collectively ensure reliable operation in diverse applications. Whether for consumer electronics, industrial devices, or computing peripherals, this Universal Serial Bus Connector is the optimal component to achieve efficient, stable, and secure USB connectivity.

Features:

• High Speed USB Connector suitable for various applications
• Standard USB Plug Connector ensuring compatibility with USB devices
• USB Power and Data Connector supporting efficient power delivery and data transfer
• Operating Temperature Range: -55°C to 85°C for reliable performance in extreme conditions
• Connector is RoHS Compliant and Halogen Free Compliant for environmental safety
• Available as Male and Female USB Connector options
• Mounting Types: Through Hole, Surface Mount, and SMT for versatile installation
• Dielectric Withstanding Voltage: 100 VRMS AC minimum for electrical safety

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U053, is a high-quality product originating from China, designed to meet the rigorous demands of modern electronic devices. Certified with ISO-9001:2000, this connector ensures reliable performance and durability, making it an ideal choice for various application occasions and scenarios. With a minimum order quantity of 1000PCS and a competitive price of 0.01 per unit, it is well-suited for large-scale manufacturing projects requiring consistent quality and supply.

One of the primary applications of the LP-U053 USB Connector is in high-speed data transfer environments. As a High Speed USB Connector, it supports rapid and stable data communication, making it essential for devices that require efficient USB data transfer connectors. This includes use in computers, laptops, external storage devices, and other peripherals where quick and reliable data exchange is critical.

Additionally, the LP-U053 serves as a USB Power and Data Connector, supporting not only data transmission but also power delivery. This dual functionality makes it perfect for charging devices while simultaneously transferring data, commonly found in smartphones, tablets, and other portable electronics. Its robust design, featuring a nickel-plated shell and 1U plating, enhances corrosion resistance and ensures long-lasting connectivity even in demanding environments.

The connector's IP67 protection level makes it suitable for use in harsh conditions where dust and water resistance are necessary. This attribute expands its application to outdoor devices, industrial equipment, and automotive electronics, where exposure to elements is unavoidable. The insulator resistance of 1000MΩ minimum guarantees electrical insulation integrity, enhancing safety and performance in sensitive electronic applications.

Manufacturers appreciate the LP-U053 USB Connector for its recommended IR Reflow process of 260°C for 3 to 5 seconds, facilitating efficient and reliable soldering during assembly. The packaging options, including reel, tube, and tray, provide flexibility for automated production lines, while the supply ability of up to 1,000,000PCS ensures availability for large volume orders. Delivery times of 7 to 10 days and payment terms including T/T and L/C further support streamlined procurement and production schedules.

In summary, the LP-U053 USB Connector is a versatile and dependable component ideal for high-speed data transfer applications, power and data delivery systems, and environments requiring robust protection. Its combination of quality certifications, protective features, and manufacturing convenience makes it a preferred choice across consumer electronics, industrial devices, and automotive sectors.

Customization:

Introducing the LP USB Connector, model number LP-U053, a Standard USB Plug Connector designed and manufactured in China with ISO-9001:2000 certification. This High Speed USB Connector serves as a reliable External Device Connection Port, ensuring efficient data transfer and connectivity for various electronic devices.

Our USB connector features excellent electrical properties including a contact resistance of 40 milliohms max for VBUS and GND contacts, and 50 milliohms max for other contacts. It maintains a dielectric withstanding voltage of 100 VRMS AC minimum and a contact impedance of 30mΩ max, guaranteeing stable performance. The contact current rating is 3.0A for the VBUS pin and its corresponding GND pin, and 0.25A minimum for all other contacts, supporting robust power delivery during operation.

The connecting mode is plug/unplug, providing convenience and ease of use for connecting external devices. The product is available in packaging options including reel, tube, or tray to suit your assembly needs.

With a minimum order quantity of 1000PCS and a competitive price of 0.01 per piece, we offer a supply ability of 1,000,000PCS to meet large volume demands. Delivery time is efficient at 7 to 10 days, with flexible payment terms including T/T and L/C.

Choose the LP-U053 USB Connector for your next project to ensure high-quality, durable, and high-speed connectivity solutions with the trusted LP brand.
