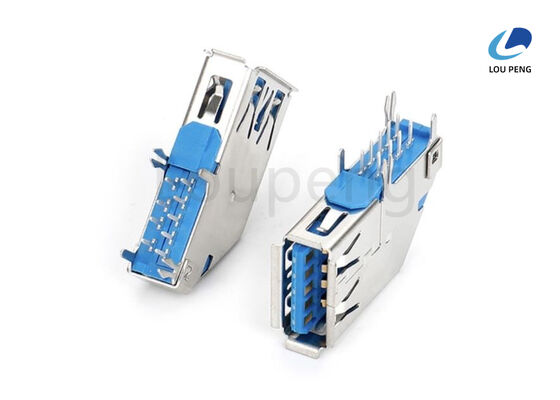

Current Rating 1.5A To 5A USB Connector Connector Extraction Force Maximunrate 12.5mm Per Minute Plated 1 U Durable Connector

Product Description:

The USB Connector is an essential component designed to provide reliable and efficient connectivity for a wide range of electronic devices. As a versatile USB Communication Port Connector, it supports various mounting types, including Through Hole, Surface Mount, and SMT (Surface Mount Technology), making it highly adaptable to different circuit board designs and manufacturing processes. This flexibility ensures seamless integration into diverse applications, from consumer electronics to industrial equipment.

One of the standout features of this USB Connector is its robust assembly method, which utilizes soldering to guarantee a secure and stable connection. Solder assembly not only enhances the mechanical strength of the connection but also ensures excellent electrical conductivity, minimizing the risk of signal loss or interference. This is particularly important for maintaining the integrity of data transmission through the USB Communication Port Connector.

In terms of electrical performance, the USB Connector boasts an insulation impedance of 100MΩ minimum at 250V DC. This high insulation resistance is critical for preventing electrical leakage and ensuring safety during operation. It helps maintain the purity of the signal by reducing noise and crosstalk, which is vital for high-speed data communication standards that USB interfaces typically support.

The current rating of this connector ranges from 1.5A to 5A, accommodating various power requirements for USB devices. Whether powering low-consumption peripherals or more demanding gadgets, the Standard USB Plug Connector delivers consistent and reliable current flow. This wide current rating spectrum makes it suitable for multiple USB versions and power delivery specifications, ensuring compatibility and efficient performance across a broad spectrum of devices.

Another important mechanical specification is the overall insertion force, which is rated at a maximum of 3.57 kgf. This parameter indicates the effort required to insert the USB plug into the connector, balancing ease of use with a secure fit. A well-calibrated insertion force ensures that the connector holds the plug firmly in place without causing undue wear or damage over repeated connections and disconnections. This durability is essential for maintaining a long-lasting and dependable Compact USB Connection Interface.

The design of this USB Connector emphasizes compactness, making it an ideal solution for devices where space is at a premium. Its small footprint and efficient layout allow manufacturers to maximize internal space without sacrificing connectivity options. This compact USB connection interface supports the trend toward miniaturization in electronics, enabling thinner, lighter, and more portable devices without compromising on functionality.

Overall, this USB Connector stands out as a high-quality, reliable, and versatile component suitable for a wide array of applications. Its combination of multiple mounting options, robust solder assembly, high insulation impedance, broad current ratings, and controlled insertion force ensures it meets the demanding needs of modern electronic devices. Whether used as a Standard USB Plug Connector in consumer gadgets or as a dependable USB Communication Port Connector in industrial systems, this product offers excellent performance and durability.

In summary, the USB Connector delivers an optimal balance of electrical and mechanical properties, enabling efficient data transfer and power delivery through a compact and user-friendly interface. Its adaptability to Through Hole, Surface Mount, and SMT mounting types, along with its reliable soldered assembly, makes it a preferred choice for engineers and designers aiming to create high-performance USB-enabled devices. With its impressive insulation impedance, current handling capability, and manageable insertion force, this connector is engineered to provide a seamless, stable, and long-lasting connection in any USB application.

Features:

• Product Name: USB Connector
• Durability: 10000 Cycles
• Dielectric Withstanding Voltage: 100 VRMS AC Min.
• Data Transfer Speed: Up To 10 Gbps (USB 3.1)
• Contact Plated: Selective Plating
• Insulator Material: PBT / LCP+30%G.F UL94V-0
• Reliable USB Communication Port Connector for stable connections
• High-Speed USB Data Transfer Connector suitable for USB 3.1 applications
• Durable USB Communication Port Connector designed for long-lasting performance

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U051, is a highly reliable and efficient compact USB connection interface designed to meet the demands of modern electronic devices. Manufactured in China and certified under ISO-9001:2000 standards, this product ensures high quality and consistent performance. Its compact size makes it ideal for applications where space is limited, providing a seamless external device connection port that supports a wide range of peripherals.

With a current rating ranging from 1.5A to 5A and a contact impedance of 30mΩ max, the LP-U051 USB connector guarantees stable electrical performance and minimal signal loss. The insulation impedance of 100MΩ minimum at 250V DC further enhances its safety and reliability in various operating environments. This standard USB plug connector is engineered to withstand an overall insertion force of up to 3.57kgf, ensuring a secure and durable connection through plug and unplug cycles.

The LP-U051 USB connector is widely used in numerous application scenarios, including computer systems, mobile devices, consumer electronics, and industrial equipment. Its packaging options, including reel, tube, and tray, cater to different manufacturing and assembly processes, facilitating efficient production workflows. With a supply ability of 1,000,000 pieces and a minimum order quantity of 1000PCS at an attractive price of 0.01 USD per unit, this USB connector offers excellent value for large-scale production needs.

Delivery times range from 7 to 10 days, and flexible payment terms such as T/T and L/C make procurement convenient for global customers. Whether integrating into laptops, tablets, external hard drives, or other USB-enabled devices, the LP-U051 provides a dependable external device connection port that ensures quick data transfer and charging capabilities.

In summary, the LP-U051 USB connector is an ideal choice for manufacturers seeking a standard USB plug connector with superior electrical characteristics and robust mechanical design. Its compact USB connection interface perfectly suits applications requiring high-density port configurations without compromising performance or durability.

Customization:

Our USB Connector product, model number LP-U051, branded as LP, offers comprehensive product customization services to meet your specific needs. Manufactured in China and certified with ISO-9001:2000, this Standard USB Plug Connector ensures high quality and reliability.

We specialize in producing Universal Serial Bus Connectors with a minimum order quantity of 1000PCS, priced competitively at 0.01 per unit. The product is available in various packaging options including Reel, Tube, and Tray to suit your handling and storage preferences.

With a supply ability of 1,000,000PCS and a delivery time of 7 to 10 days, we guarantee timely fulfillment of large orders. Payment terms accepted include T/T and L/C, providing flexible financial arrangements for your convenience.

Technical specifications include an insulation resistance of 100 Megohms minimum and insulator resistance of 1000MΩ minimum, ensuring excellent electrical performance. The assembly method is solder, and the connecting mode supports plug/unplug operations for easy and reliable connectivity.

We recommend the IR Reflow process at 260°C for 3 to 5 seconds to achieve optimal assembly results. Trust our Standard USB Plug Connector to deliver superior performance and customization options tailored to your Universal Serial Bus Connector requirements.

Support and Services:

For technical support and services related to our USB Connector product, please refer to the detailed user manual included with your purchase. Our support team is dedicated to helping you with installation, troubleshooting, and maintenance to ensure optimal performance of your USB Connector.

If you encounter any issues or have questions about compatibility, functionality, or specifications, please consult the FAQ section on our website or access our online resources, including video tutorials and downloadable guides.

We also offer warranty services and repair options for eligible products. Please review the warranty terms and conditions provided with your USB Connector for more information.

Our technical support specialists are available to assist with firmware updates, driver installations, and configuration advice to enhance your user experience.

For professional services, including bulk orders, custom configurations, or integration support, please explore our business solutions and service packages tailored to meet your needs.

Packing and Shipping:

Each USB Connector is carefully packaged in a protective blister pack to prevent any damage during transit. The packaging includes a clear label with product specifications and compatibility information.

For shipping, the USB Connectors are securely placed in sturdy boxes with adequate cushioning materials to ensure safe delivery. We offer multiple shipping options to meet your needs, including standard and expedited services.

All shipments are tracked, and customers receive a tracking number to monitor their order status until it arrives at the destination.
