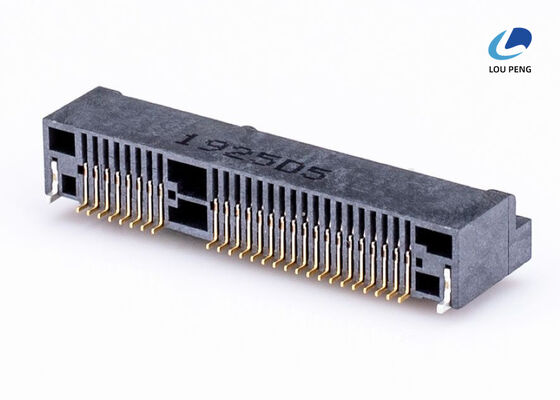

Gold Plated Contact Mini PCI Express Slot Featuring Dielectric Withstanding Voltage 300V AC RMS Ideal for Communication and Networking Devices

Product Description:

The MINI PCIE Connector is a high-quality electronic component designed to provide reliable and efficient connectivity solutions for a wide range of applications. Engineered with precision and durability in mind, this connector is an ideal choice for devices that require robust Mini PCI Express Connector interfaces. It serves as a critical interface component, ensuring seamless communication between Mini PCI Express cards and the host system, making it indispensable in modern computing environments.

One of the standout features of this MINI PCIE Connector is its surface mount design. The surface mount mounting type allows for easy and secure installation onto printed circuit boards (PCBs), which not only simplifies the assembly process but also enhances the overall reliability of the connection. Surface mount technology is widely appreciated for its ability to support high-density PCB layouts, making this connector an excellent solution for compact and space-constrained devices.

Electrical performance is a vital aspect of any connector, and this Mini PCI-E Connector Slot excels in this regard. It boasts a current rating of 0.5 AMP per contact, ensuring adequate power delivery to connected devices while maintaining safety and efficiency. This current rating is particularly suitable for Mini PCI Express Connector applications where moderate power consumption is expected. The connector’s copper alloy contact material contributes significantly to its outstanding electrical properties, offering excellent conductivity and corrosion resistance. Copper alloy contacts help minimize signal loss and maintain stable electrical connections over extended periods of use.

In addition to its electrical characteristics, the MINI PCIE Connector is designed for optimal mechanical performance. The contact resistance is rated at a maximum of 55 milliohms initially, which indicates low resistance and high-quality contact surfaces. Low contact resistance is crucial for minimizing voltage drops and ensuring signal integrity, particularly in high-speed data transmission scenarios typical of Mini PCI Express Connector interfaces. This feature supports the connector’s role in delivering reliable and uninterrupted data flow between devices.

Security and stability are paramount when it comes to connectors used in critical applications. To address this, the MINI PCIE Connector is equipped with a locking mechanism. This locking feature ensures that the connector remains firmly in place once mated, preventing accidental disconnections caused by vibrations or mechanical shocks. The locking mechanism enhances the overall robustness of the connection, making it suitable for use in environments where reliability is essential, such as industrial equipment, telecommunications, and embedded computing systems.

The Mini PCI-E Connector Slot provided by this connector is compatible with a wide range of Mini PCI Express cards, enabling flexible integration into various devices. Whether used in laptops, embedded systems, or networking equipment, this connector delivers consistent performance and durability. Its design adheres to industry standards, facilitating easy replacement and upgrade of Mini PCI Express modules without compatibility concerns.

Furthermore, the connector’s compact form factor and surface mount technology contribute to efficient PCB space utilization. This is particularly beneficial for modern electronic devices where minimizing size and weight is critical. The MINI PCIE Connector allows engineers to design sleek and compact systems without compromising on connectivity or performance.

In summary, the MINI PCIE Connector is a premium Mini PCI Express Connector solution that combines excellent electrical and mechanical properties with practical design features. Its surface mount mounting type, 0.5 AMP per contact current rating, copper alloy contact material, low contact resistance of 55 milliohms maximum, and integrated locking mechanism make it a reliable and efficient choice for Mini PCI Express connectivity needs. Whether you are developing advanced embedded systems, upgrading computing hardware, or designing new telecommunications equipment, this connector ensures secure, stable, and high-performance connections that meet the demands of today’s technology landscape.

Features:

• Product Name: MINI PCIE Connector
• Type: Mini PCIe Card Connector, Mini PCIe Card Slot, Mini PCIe Socket Connector
• Contact Resistance: 55 Milliohms Max (initial)
• Durability: Insert & Withdraw 500 Cycles
• Withdrawal Force: 2.3 kgf Max
• Pin Count: 52 pins
• Available Heights: 4.0mm, 5.2mm, 6.8mm, 7.0mm, 8.0mm, 9.9mm

Technical Parameters:

Applications:

The LP brand presents the LP-MP015, a high-quality MINI PCIE Connector designed and manufactured in China with ISO-9001:2000 certification, ensuring top-notch reliability and performance. This connector is specifically engineered to support Mini PCIe Card Slot applications and Mini PCIe Module Connector integrations, making it an ideal choice for a wide range of electronic devices and communication equipment.

In modern computing and embedded systems, the Mini PCIe Card Slot is crucial for expanding functionality by allowing the addition of wireless network cards, SSDs, and other modules. The LP-MP015 Mini PCIe Module Connector is tailored to meet stringent industry demands with its durable design, capable of withstanding 500 cycles of insertions and withdrawals without performance degradation. This durability makes it perfect for scenarios where frequent module changes or upgrades are necessary, such as in industrial automation, telecommunications, and portable computing devices.

Thanks to its high-temperature thermoplastic UL94V-0 housing and copper alloy contacts with gold plating over nickel on contact areas, the LP-MP015 ensures excellent electrical conductivity and corrosion resistance. This results in a low contact resistance of 55 milliohms maximum, guaranteeing stable signal transmission in critical applications. The connector also has a dielectric withstanding voltage of 300V AC RMS minimum, providing robust insulation and safety in harsh electrical environments.

The compact and reliable Mini PCIe Module Connector is commonly used in embedded systems, IoT devices, and networking equipment where space-saving and reliable connectivity are priorities. Its reel packaging facilitates automated assembly processes, making it highly suitable for mass production with a minimum order quantity of 1000PCS and a supply ability of up to 100,000PCS. The affordable pricing at $0.03 per piece combined with a delivery time of 7 to 10 days under payment terms such as T/T, Western Union, or L/C further supports large-scale manufacturing needs.

Overall, the LP-MP015 MINI PCIE Connector is an excellent solution for engineers and manufacturers seeking a dependable Mini PCIe Card Slot or Mini PCIe Module Connector that combines durability, electrical performance, and cost-efficiency. Its robust construction and reliable performance make it well-suited for a variety of application occasions and scenarios ranging from consumer electronics to industrial devices requiring secure and efficient module connectivity.

Customization:

Introducing the LP-MP015 MINI PCIE Connector, a high-quality product manufactured by LP in China. This connector is designed specifically for Mini PCIe Expansion Slot applications, ensuring reliable and efficient performance.

Featuring a 52-pin count with a 0.8mm pitch, the LP-MP015 is ideal for Mini PCI Express Socket requirements. The contact material is made of durable copper alloy, providing excellent conductivity and longevity.

The housing is crafted from high temperature thermoplastic in a sleek black color, offering robust protection and stability during use. This Mini PCIe Card Slot connector is ISO-9001:2000 certified, guaranteeing superior manufacturing standards and quality assurance.

Available with a minimum order quantity of 1000PCS, the product is packaged carefully in reels for convenient handling and storage. With a supply ability of 100,000PCS, LP ensures prompt availability and consistent supply.

Pricing is set competitively at 0.03 per unit, with flexible payment terms including T/T, Western Union, and L/C. Delivery time ranges from 7 to 10 days, providing fast and reliable service to meet your project timelines.

Choose the LP-MP015 MINI PCIE Connector for your Mini PCIe Expansion Slot, Mini PCI Express Socket, and Mini PCIe Card Slot needs – combining quality, performance, and efficient supply chain management.

Support and Services:

Our MINI PCIE Connector products are designed to provide reliable and high-performance connections for embedded systems and computing applications. We offer comprehensive technical support to ensure seamless integration and optimal functionality of our connectors in your projects.

Technical support services include product selection guidance, detailed datasheets, and application notes to assist in the proper implementation of MINI PCIE connectors. Our engineering team is available to help troubleshoot installation issues, signal integrity concerns, and compatibility questions.

We also provide customization options to meet specific design requirements, including variations in pin configurations, materials, and plating options. Our quality assurance processes guarantee that each connector meets stringent industry standards for durability and performance.

For ongoing support, we offer firmware updates, hardware revision information, and access to a knowledge base with frequently asked questions and technical articles. Whether you are developing a new product or maintaining existing systems, our support services aim to maximize the efficiency and reliability of your MINI PCIE Connector solutions.

We are committed to delivering exceptional customer service and technical expertise to help you achieve success with our connector products.

Packing and Shipping:

Product Packaging:

The MINI PCIE Connector is carefully packaged to ensure protection during transit. Each connector is placed in an anti-static bag to prevent electrostatic discharge damage. The bags are then securely packed in a sturdy cardboard box with adequate cushioning materials to avoid any physical damage. The packaging is labeled clearly with product information, handling instructions, and barcode for easy identification.

Shipping:

We offer reliable shipping options to deliver the MINI PCIE Connector promptly and safely to your destination. Orders are processed within 1-2 business days, and shipping methods include standard ground, expedited, and international shipping. Tracking information is provided once the product is dispatched. We ensure that all shipments comply with international shipping regulations and are handled by trusted carriers to guarantee timely delivery.
