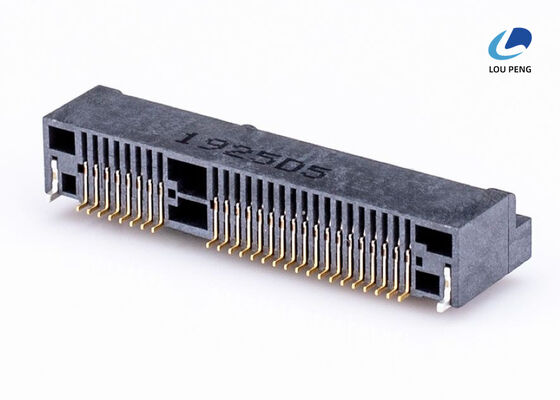

Current Rating 0.5 AMP Per Contact Mini PCIe Interface Slot Constructed Using SPCC Solder Offering Connectivity for Embedded Systems

Product Description:

The MINI PCIE Connector is a highly reliable and compact interface solution designed to meet the demands of modern electronic devices. This connector is specifically engineered to support Mini PCIe Card Slot applications, making it an essential component for integrating Mini PCIe modules into various systems. Its precision design and durable construction ensure seamless connectivity and long-lasting performance, which is critical in high-speed data communication environments.

One of the standout features of this Mini PCIe Module Connector is its excellent electrical performance. With a maximum initial contact resistance of just 55 milliohms, it guarantees efficient signal transmission with minimal loss. This low contact resistance is vital for maintaining stable and reliable connections, especially in applications where data integrity and transmission speed are paramount. Whether used in wireless communication devices, embedded systems, or industrial equipment, this connector provides consistent electrical contact and robust signal quality.

Durability is another key attribute of this Mini PCI Express Connector. Designed to withstand up to 500 mating cycles, it offers exceptional mechanical reliability. This level of durability ensures that the connector can endure frequent insertions and removals without degradation in performance. This makes it ideal for applications where modules need to be swapped or upgraded regularly, such as in testing environments or modular system designs. The connector's robust build quality ensures long-term operational stability, reducing maintenance needs and system downtime.

The operating temperature range of the MINI PCIE Connector spans from -40°C to +85°C, making it suitable for use in a wide variety of environmental conditions. Whether deployed in harsh industrial settings, outdoor installations, or consumer electronics, it maintains stable performance across extreme temperatures. This broad temperature tolerance enhances the connector's versatility, allowing it to function reliably in both cold and hot climates without compromising its electrical or mechanical properties.

Material selection and plating are crucial for the connector's performance and longevity. The connector features solder made from SPCC (cold-rolled carbon steel) with a tin (Sn) plating finish. The SPCC material provides excellent mechanical strength and solderability, while the tin plating helps prevent corrosion and ensures a consistent solder joint. This combination of materials contributes to the connector's overall durability and reliability, providing a secure and stable connection in various soldering processes and environments.

The connector's pitch, defined as the distance between adjacent pins, is precisely set at 0.8mm. This fine pitch allows for a compact footprint, enabling high-density mounting on printed circuit boards (PCBs). The 0.8mm pitch is well-suited for miniaturized devices where space is at a premium, such as laptops, tablets, and compact embedded systems. This design aspect helps manufacturers create smaller, lighter, and more efficient devices without compromising on connectivity capabilities.

In summary, the MINI PCIE Connector is an ideal choice for anyone needing a reliable Mini PCIe Card Slot interface. Its combination of low contact resistance, high durability, wide operating temperature range, robust solder materials, and compact 0.8mm pitch makes it a versatile and dependable connector solution. Whether you are designing a new Mini PCIe module or upgrading an existing system, this connector ensures optimal performance, longevity, and ease of integration. It stands out as a premier Mini PCIe Module Connector that meets the rigorous demands of modern electronic applications, supporting seamless connectivity and efficient data transfer through the Mini PCI Express Connector interface.

Features:

• Product Name: MINI PCIE Connector
• Mini PCIe Interface Slot compatible design
• Mini PCI Express Connector for reliable connectivity
• Mini PCIe Socket Connector suitable for various applications
• Dielectric withstanding voltage: 300V AC RMS (Min)
• Contact Material: Copper Alloy with Gold Plating over Nickel on contact area
• Terminal Plating: Tin Plating on terminal
• Current Rating: 0.5 AMP per contact
• Available Heights: 4.0mm, 5.2mm, 6.8mm, 7.0mm, 8.0mm, 9.9mm
• Insulation Resistance: 500 Megaohms at 500V DC (Min)

Technical Parameters:

Applications:

The LP-MP011 MINI PCIE Connector, manufactured by the reputable brand LP and originating from China, is an essential component designed to facilitate seamless connectivity in a variety of electronic devices. Certified under ISO-9001:2000, this Mini PCIe Module Connector guarantees high-quality performance and reliability for industrial and consumer applications. With a pitch of 0.8mm and contact resistance of 55 milliohms max (initial), it ensures stable and efficient signal transmission.

This Mini PCIe Module Connector is widely used in scenarios where Mini PCIe Expansion Slots are required, such as in laptops, embedded systems, and network devices. Its compact design and precise engineering make it ideal for integrating Mini PCIe modules, which are commonly used for wireless communication cards, solid-state drives, and other expansion interfaces. The gold plating over nickel on contact areas, combined with tin plating on terminals, enhances durability and conductivity, making the connector suitable for environments demanding high reliability and long-term use.

Manufactured with copper alloy contacts and SPCC solder plated with tin, the LP-MP011 connector withstands high dielectric voltages up to 300V AC RMS, making it perfect for applications that require robust electrical insulation and safety. The product is supplied in reels for efficient handling and assembly, with a minimum order quantity of 1000PCS, catering to bulk manufacturing needs. The price point of $0.03 per unit and a supply ability of 100,000PCS ensure cost-effective and scalable deployment.

The LP-MP011 connector is ideally suited for use in telecommunications equipment, industrial automation, and computing devices where Mini PCIe Expansion Slots are integral to system design. Its quick delivery time of 7 to 10 days and flexible payment terms including T/T, Western Union, and L/C provide convenience and assurance to manufacturers and suppliers.

In summary, the LP-MP011 Mini PCIe Module Connector is a highly reliable and efficient solution for connecting Mini PCIe modules within Mini PCIe Expansion Slots across a wide range of electronic applications. Its robust construction, excellent electrical properties, and compliance with international quality standards make it a preferred choice for OEMs and system integrators looking to enhance device performance and connectivity.

Customization:

Introducing the LP brand MINI PCIE Connector, model number LP-MP011, proudly made in China and certified with ISO-9001:2000. This high-quality Mini PCIe Card Slot is designed to meet demanding industry standards with excellent performance and reliability.

Our Mini PCIe Socket Connector features a 52-pin count, ensuring compatibility with a wide range of devices. It boasts a maximum contact resistance of 55 milliohms (initial) and a withdrawal force of up to 2.3kgf, providing a secure and stable connection. The housing material is crafted from high temperature thermoplastic, ensuring durability and resistance under high thermal conditions.

The Mini PCIe Module Connector offers outstanding insulation resistance of 500 megaohms at 500V DC minimum, guaranteeing safety and integrity in your electronic applications. Packaged in reels for efficient handling and delivery, each order comes with a minimum quantity of 1000PCS at a competitive price of 0.03 USD per piece.

We provide a reliable supply ability of up to 100,000PCS with a delivery time of 7 to 10 days. Payment terms include T/T, Western Union, and L/C for your convenience. Choose LP’s Mini PCIe Card Slot, Mini PCIe Socket Connector, and Mini PCIe Module Connector for your next project and benefit from superior quality and service.

Support and Services:

Our MINI PCIE Connector product is designed to provide reliable and high-performance connectivity for your embedded systems and computing applications. We offer comprehensive technical support to ensure seamless integration and optimal functionality.

Technical Support includes assistance with product selection, installation guidance, troubleshooting, and firmware updates. Our team of experts is available to help you address any compatibility concerns or performance issues you may encounter.

We provide detailed datasheets, application notes, and design guidelines to facilitate easy implementation of the MINI PCIE Connectors in your projects. Additionally, our support covers signal integrity analysis and customization options to meet specific requirements.

For service, we offer warranty coverage and repair services to maintain the longevity and reliability of your connectors. Our commitment is to deliver prompt and efficient solutions to minimize your downtime and enhance your system’s performance.

Whether you need technical advice or after-sales support, our dedicated support team is ready to assist you throughout the product lifecycle, ensuring a smooth and successful experience with our MINI PCIE Connector products.

Packing and Shipping:

Each MINI PCIE Connector is carefully packaged to ensure protection during transit. The product is placed in an anti-static bag to prevent any electrostatic discharge damage. It is then securely packed in a sturdy cardboard box with adequate cushioning materials to avoid any physical impact.

For shipping, we use reliable courier services to guarantee timely and safe delivery. Tracking information will be provided once the order is dispatched. We offer various shipping options to meet your needs, including standard and expedited shipping.

Please ensure the shipping address is accurate to prevent any delays. In case of any damage during shipping, please contact our customer service immediately for assistance with returns or replacements.
