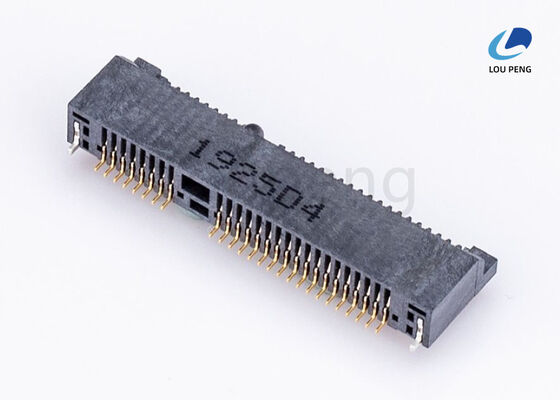

Withdrawal force 2.3kgf Max Mini PCIe Connector Providing Stable Connection Operating Temperature Range -40°C to +85°C

Product Description:

The MINI PCIE Connector is a high-quality, reliable component designed to meet the demanding requirements of modern electronic devices. Specifically engineered for Mini PCIe Expansion Slot applications, this connector provides a robust and efficient interface for Mini PCI Express Socket installations. It is an ideal choice for developers and manufacturers seeking a durable and secure solution for their Mini PCIe Expansion Slot needs.

One of the standout features of this MINI PCIE Connector is its integrated locking mechanism. This locking system ensures that the connection between the Mini PCI Express Socket and the Mini PCIe Expansion Slot remains firmly in place, preventing accidental disconnections due to vibrations or movement. This is particularly important in environments where stability and uninterrupted operation are critical, such as in industrial, automotive, or embedded computing applications.

Durability is a key aspect of this connector’s design. Rated for an impressive 500 mating cycles, it guarantees long-lasting performance even under frequent use. This high mating cycle rating means that users can expect reliable connections over extended periods without degradation in performance, making it a cost-effective and dependable choice for devices that require repeated insertion and removal of Mini PCIe cards.

The color of the connector is black, providing a sleek and professional appearance that complements a wide range of device designs. This neutral color also helps in easy identification during assembly and maintenance, enhancing the overall user experience. The black finish is not only aesthetic but also contributes to the connector’s resistance to wear and environmental factors.

Designed for surface mount installation, the MINI PCIE Connector is easy to integrate into printed circuit boards (PCBs) with minimal complexity. Surface mount technology (SMT) allows for efficient manufacturing processes and compact device designs, making this connector suitable for modern, space-constrained electronic systems. Its surface mount mounting type ensures a secure attachment to the PCB, maintaining the integrity of the connection even in demanding conditions.

With a pin count of 52 pins, this connector supports a wide range of signals and power lines necessary for the full functionality of Mini PCIe devices. The 52-pin configuration ensures compatibility with standard Mini PCI Express Socket layouts, providing seamless integration with existing hardware. This extensive pin count allows for comprehensive data transfer, power delivery, and control signals, making it a versatile choice for various applications.

In summary, the MINI PCIE Connector is an essential component for anyone working with Mini PCIe Expansion Slot and Mini PCI Express Socket applications. Its locking mechanism guarantees a secure and stable connection, while its durability rating of 500 mating cycles ensures long-term reliability. The black color adds a professional touch, and the surface mount design facilitates easy and efficient assembly. With 52 pins, it provides the necessary connectivity for a wide range of Mini PCIe devices, making it a versatile and dependable solution for your electronic projects and products.

Whether you are designing compact embedded systems, upgrading computing hardware, or developing new Mini PCIe Expansion Slot-based devices, this connector offers the performance and reliability you need. Trust the MINI PCIE Connector to deliver secure, durable, and high-quality connections every time.

Features:

• Product Name: MINI PCIE Connector
• Voltage Rating: 50V AC per contact
• Color: Black
• Application: Suitable for Wireless Modules and Embedded Systems
• Housing Material: High Temperature Thermoplastic
• Dielectric Withstanding Voltage: 300V AC RMS (Minimum)
• Compatible with Mini PCI Express Connector standards
• Designed for use in Mini PCI Express Slot applications
• Reliable performance in Mini PCI Express Slot environments

Technical Parameters:

Applications:

The LP brand MINI PCIE Connector, model number LP-MP014, is an essential component designed to provide reliable and efficient connectivity solutions for various electronic devices. Manufactured in China and certified with ISO-9001:2000, this connector guarantees high quality and consistent performance. Its gold-plated contact plating ensures excellent conductivity and corrosion resistance, making it suitable for demanding applications. With a durability rating of 500 mating cycles, the LP-MP014 is built to withstand frequent use without compromising its integrity.

One of the primary application occasions for the LP-MP014 connector is in devices requiring a Mini PCIe Interface Slot. Its 0.8mm pitch and black color design make it an ideal choice for compact and sleek electronic assemblies. The connector supports a dielectric withstanding voltage of 300V AC RMS (minimum), ensuring safe operation in various electrical environments. Packaged in reels and available at a competitive price of 0.03 USD per piece, it suits large-scale manufacturing demands with a minimum order quantity of 1000PCS and a supply ability of 100,000PCS, making it highly accessible for industry needs.

In practical scenarios, the LP-MP014 excels as a Mini PCI-E Connector Slot in laptops, embedded systems, and networking equipment where Mini PCIe Expansion Slots are crucial for adding wireless modules, SSDs, or other expansion cards. Its robust build and gold plating facilitate stable signal transmission and longevity, significantly reducing maintenance and replacement costs. The delivery time of 7 to 10 days ensures timely project completion, and flexible payment terms including T/T, Western Union, and L/C provide convenience to global customers.

Furthermore, the LP-MP014 connector is widely used in industrial automation, telecommunications, and IoT devices where reliable and compact Mini PCIe Interface Slots are necessary for seamless data communication and hardware expansion. Its reel packaging supports efficient assembly line integration, enabling manufacturers to streamline their production processes. Whether upgrading existing systems or designing new hardware, this connector is an excellent choice for engineers seeking durability, performance, and cost-effectiveness in a Mini PCI-E Connector Slot solution.

Customization:

Brand Name: LP

Model Number: LP-MP014

Place of Origin: China

Certification: ISO-9001:2000

Minimum Order Quantity: 1000PCS

Price: $0.03 per unit

Packaging Details: Reel packaging for efficient handling and protection.

Delivery Time: 7 to 10 days to ensure timely supply.

Payment Terms: T/T, Western Union, L/C accepted for flexible transactions.

Supply Ability: 100,000PCS available to meet large volume demands.

Durability: Rated for 500 mating cycles, ensuring long-lasting performance.

Insulation Resistance: 500 Meqohms at 500V DC minimum, providing reliable electrical insulation.

Operating Temperature Range: -40°C to +85°C, suitable for various environmental conditions.

Housing Material: Made from high temperature thermoplastic UL94V-0, offering excellent flame retardancy.

Dielectric Withstanding Voltage: 300V AC RMS minimum, ensuring safety and stability.

Our MINI PCIE Connector product, model LP-MP014, is an ideal solution for applications requiring a Mini PCI Express Slot, Mini PCIe Socket Connector, or Mini PCI-E Connector Slot. With high durability and robust electrical properties, it is designed to meet the stringent demands of modern electronic devices.
