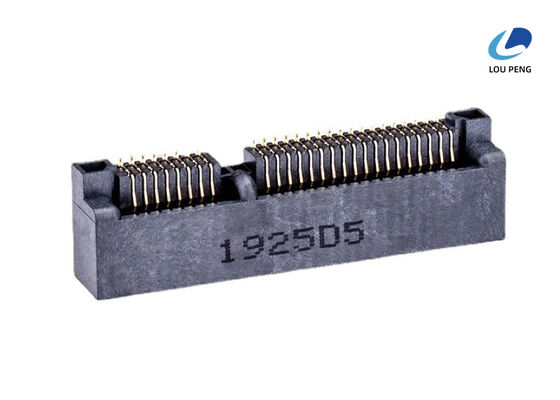

High Temperature Thermoplastic MINI PCIE Connector 52pin Voltage Rating 50V AC Per Contact Durable Interface Solution

Product Description:

The MINI PCIE Connector is a highly reliable and versatile component designed to facilitate secure and efficient connections in various electronic devices. Engineered to meet the demanding requirements of modern computing applications, this connector is an essential element for anyone looking to implement or upgrade Mini PCIe Interface Slot solutions. Its robust construction and precise engineering ensure optimal performance, making it an ideal choice for applications requiring Mini PCI Express Slot connectivity.

One of the standout features of this MINI PCIE Connector is its color, which is a sleek and professional black. This color not only gives the connector a modern aesthetic but also helps it blend seamlessly with most circuit boards and electronic assemblies. The black finish is indicative of the high-quality materials and manufacturing processes used, ensuring durability and resistance to wear over prolonged usage.

The product is available in multiple height options, including 4.0mm, 5.2mm, 6.8mm, 7.0mm, 8.0mm, and 9.9mm. This variety in height allows for flexible design choices and ensures compatibility with a wide range of devices and configurations. Whether you are working on a compact device requiring a low-profile solution or a larger system needing more clearance, this connector can accommodate your needs without compromising on performance or reliability.

Voltage rating is a critical consideration for any connector, and the MINI PCIE Connector excels in this area with a voltage rating of 50V AC per contact. This rating ensures that the connector can safely and efficiently handle the electrical loads typical of Mini PCIe Card Slot applications. It provides peace of mind for designers and engineers by minimizing the risk of electrical failures or degradation over time.

The contact material used in this connector is copper alloy, chosen for its excellent electrical conductivity and mechanical properties. Copper alloy contacts ensure low resistance and high signal integrity, which are crucial for maintaining fast and reliable data transfer through Mini PCIe Interface Slot connections. Additionally, copper alloy offers good corrosion resistance, enhancing the longevity and stability of the connector even in challenging environmental conditions.

With a pitch of 0.8mm, the MINI PCIE Connector is designed to offer precise and compact connectivity. The fine pitch allows for a high density of contacts within a small footprint, which is essential for modern electronics where space is at a premium. This pitch size is standard for Mini PCI Express Slot connectors, ensuring compatibility with a wide range of Mini PCIe cards and modules, making integration straightforward and hassle-free.

In summary, the MINI PCIE Connector is an excellent choice for anyone needing a dependable and high-performance connector for Mini PCIe Interface Slot applications. Its black color, multiple height options, 50V AC voltage rating per contact, copper alloy contacts, and 0.8mm pitch make it a versatile and robust component. Whether you are designing a new device or upgrading an existing system, this connector supports reliable and efficient connections for Mini PCI Express Slot and Mini PCIe Card Slot implementations, helping to ensure your project's success.

Features:

• Product Name: MINI PCIE Connector
• Durability: 500 Mating Cycles
• Material: SPCC with Sn Plated solder
• Current Rating: 0.5 AMP Per Contact
• Includes locking mechanism for secure connection
• Insulation Resistance: 500 Megaohms at 500V DC minimum
• Compatible with Mini PCI-E Connector Slot
• Ideal for use in Mini PCIe Expansion Slot applications
• Reliable Mini PCI-E Connector Slot for enhanced performance

Technical Parameters:

Applications:

The LP-MP012 MINI PCI-E Connector, manufactured by LP in China, is an essential component designed for reliable and high-performance connectivity in various electronic applications. Certified with ISO-9001:2000, this Mini PCIe Card Connector ensures superior quality and durability. With a robust locking mechanism, it guarantees secure connections, making it ideal for demanding environments where stability and reliability are critical.

This Mini PCIe Socket Connector is widely used in wireless modules and embedded systems, serving as an interface for Mini PCI Express cards. Its excellent contact design, featuring copper alloy contacts with gold plating over nickel on the contact area and tin plating on the terminals, provides low contact resistance of 55 milliohms max (initial), ensuring efficient signal transmission and minimal power loss.

Applications of the LP-MP012 Mini PCI Express Connector span various fields, including telecommunications, industrial automation, and IoT devices. It is particularly suited for wireless communication modules such as Wi-Fi, LTE, and 5G cards, where stable and secure connections are paramount. Embedded systems in medical equipment, automotive electronics, and smart home devices also benefit from this connector’s compact size and reliable locking mechanism.

In scenarios where space constraints and performance reliability are crucial, this Mini PCIe Card Connector offers an optimal solution. It is perfect for integration into compact computing devices, industrial PCs, and networking equipment. The connector’s packaging in reels facilitates efficient assembly and high-volume production, supporting a minimum order quantity of 1000PCS with a supply ability of 100,000PCS, ensuring availability for large-scale manufacturing needs.

With a competitive price of $0.03 per unit and a delivery time of 7 to 10 days, the LP-MP012 Mini PCIe Socket Connector provides an economical and timely solution for OEMs and system integrators. Payment terms including T/T, Western Union, and L/C offer flexible options for global customers. Overall, this Mini PCI Express Connector by LP combines quality, performance, and affordability, making it an ideal choice for modern wireless and embedded system applications.

Customization:

LP proudly offers customization services for the MINI PCI-E Connector Slot, model number LP-MP012. Manufactured in China and certified with ISO-9001:2000, this Mini PCIe Card Connector is designed to meet high-quality standards. With a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, we ensure efficient production and delivery within 7 to 10 days.

The Mini PCIe Card Slot features a housing made from high temperature thermoplastic UL94V-0, providing excellent durability and safety. It supports a voltage rating of 50V AC per contact and has a contact resistance of 55 milliohms max (initial), ensuring reliable electrical performance. The contacts are gold plated to enhance conductivity and prevent corrosion.

Our packaging details include reel packaging for easy handling and integration. Payment terms accepted are T/T, Western Union, and L/C, supporting flexible transaction options. With a supply ability of 100000PCS, LP can accommodate large volume orders seamlessly.

If you require a Mini PCI-E Connector Slot or Mini PCIe Card Connector tailored to your specifications, LP is your trusted partner for quality and customization.

Support and Services:

Product Technical Support and Services for the MINI PCIE Connector include comprehensive assistance to ensure optimal performance and integration. Our support team provides detailed technical documentation, including datasheets, application notes, and design guidelines to help with proper installation and usage.

We offer troubleshooting support to address any compatibility or connectivity issues that may arise during integration. Our engineers are available to provide expert advice on signal integrity, layout recommendations, and system compatibility to help you achieve the best results.

Additionally, we provide customization services to tailor the MINI PCIE Connector to specific application requirements, including modifications in pin configurations, materials, and mechanical dimensions.

For ongoing maintenance and updates, we supply firmware and driver support where applicable, ensuring seamless communication between the connector and your system components.

Our commitment is to deliver reliable and efficient technical support to maximize the functionality and lifespan of your MINI PCIE Connector installations.
