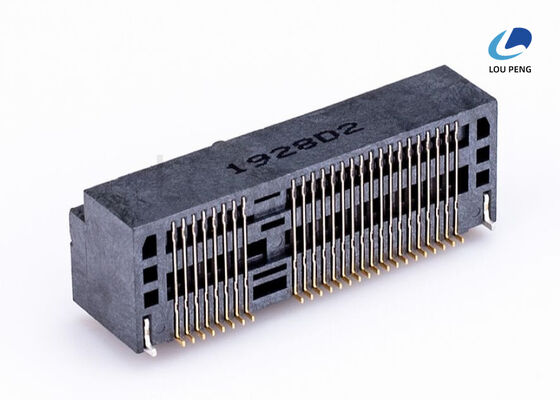

Insert and Withdraw 500 Cycles Mini PCIe Card Connector Designed with 2.3kgf Max Insertion Force Ensuring Long Lasting Performance

Product Description:

The MINI PCI-E Connector is a high-quality, reliable solution designed specifically for Mini PCIe Card Slot applications. Engineered to meet the demands of modern electronic devices, this connector ensures seamless connectivity and robust performance for Mini PCIe expansion slots used in various computing and communication equipment. With multiple height options ranging from 4.0mm to 9.9mm—including 4.0mm, 5.2mm, 6.8mm, 7.0mm, 8.0mm, and 9.9mm—this product provides versatile compatibility with a wide range of Mini PCIe cards and modules.

Constructed using a superior copper alloy, the MINI PCI-E Connector features gold plating over nickel on the contact area, which guarantees excellent conductivity and corrosion resistance. This gold plating ensures stable signal transmission and longevity of the connector even in demanding environments. The terminal is finished with tin plating, enhancing solderability and providing additional protection against oxidation. These carefully selected materials contribute to the connector's overall durability and reliability, making it an ideal choice for high-performance Mini PCIe Card Slots.

One of the standout features of the MINI PCI-E Connector is its wide operating temperature range, which spans from -40°C to +85°C. This impressive thermal tolerance allows the connector to perform consistently in harsh environmental conditions, including industrial settings, outdoor installations, and other temperature-sensitive applications. The ability to operate reliably under such temperature extremes ensures that devices equipped with this Mini PCIe Expansion Slot connector maintain uninterrupted functionality and data integrity.

The MINI PCI-E Connector also boasts a maximum insertion force of 2.3kgf, which strikes an optimal balance between secure mating and ease of use. This insertion force ensures that Mini PCIe cards can be plugged in firmly without excessive resistance, facilitating quick and reliable installation and replacement processes. The connector’s design minimizes wear and tear on both the slot and the card, contributing to extended product lifespan and reduced maintenance requirements.

Designed with precision and attention to detail, the MINI PCI-E Connector supports the growing demand for compact, efficient, and high-speed expansion solutions. It is an excellent choice for manufacturers and designers looking to integrate Mini PCIe Card Slots into laptops, embedded systems, industrial computers, networking devices, and more. The connector’s compatibility with Mini PCIe Expansion Slots makes it a versatile component that can accommodate a variety of wireless communication cards, solid-state drives, and other Mini PCIe interface devices.

In summary, the MINI PCI-E Connector combines robust material composition, flexible height options, and a wide operating temperature range to deliver superior performance for Mini PCIe Card Slot applications. Its reliable contact plating and moderate insertion force enhance connectivity and durability, ensuring that your Mini PCIe Expansion Slot devices operate smoothly and efficiently. Whether you are developing new hardware or upgrading existing systems, this connector is a dependable choice that meets the rigorous standards of modern electronic device design and functionality.

Features:

• Product Name: MINI PCIE Connector
• Connector Type: Mini PCI Express
• Current Rating: 0.5 AMP Per Contact
• Durability: Insert & Withdraw 500 Cycles
• Voltage Rating: 50V AC Per Contact
• Compatible with Mini PCI-E Connector Slot
• Designed as a reliable Mini PCIe Card Connector
• Supports Mini PCI Express Slot applications

Technical Parameters:

Applications:

The LP brand Mini PCI Express Socket, model number LP-MP013, is a high-quality Mini PCI Express Connector designed and manufactured in China. This product is ISO-9001:2000 certified, ensuring reliable quality and consistent performance. With a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, the LP-MP006 is ideal for large-scale production and integration into various electronic devices. It is supplied in convenient reel packaging, facilitating efficient handling and automated assembly processes. The delivery time ranges between 7 to 10 days, supported by flexible payment terms including T/T, Western Union, and L/C, making procurement straightforward and efficient.

This Mini PCI Express Socket features a 52-pin contact configuration, crafted from copper alloy with gold plating over nickel on contact areas and tin plating on terminals. This combination ensures excellent conductivity, corrosion resistance, and durability, supporting up to 500 mating cycles. The socket operates reliably in a wide temperature range from -40°C to +85°C, making it suitable for applications in diverse environmental conditions. Its robust construction and high supply ability of 100,000PCS make it a dependable choice for manufacturers requiring consistent quality and availability.

The LP-MP013 Mini PCI Express Connector is widely used in various product application occasions and scenarios. It is perfect for embedded systems, industrial computers, and communication devices where compact, reliable, and high-speed data connections are essential. Its 52-pin design allows for stable signal transmission in complex electronic assemblies, making it suitable for IoT devices, networking equipment, and mobile computing platforms. Additionally, the connector is ideal for automotive electronics and ruggedized devices due to its durability and wide operating temperature range.

In consumer electronics, the Mini PCI Express Socket is used in laptops, tablets, and portable devices to connect wireless cards, SSDs, and other expansion modules. Its compact size and reliability make it a preferred choice for manufacturers seeking to maximize performance while minimizing space. Furthermore, the LP-MP013 supports industrial automation systems and medical devices where consistent connectivity and long-term reliability are crucial. Overall, this Mini PCI Express Connector is a versatile component that meets the demands of modern electronic design across multiple industries.

Customization:

Brand Name: LP

Model Number: LP-MP013

Place of Origin: China

Certification: ISO-9001:2000

Minimum Order Quantity: 1000PCS

Price: $0.03 per unit

Packaging Details: Reel packaging for efficient handling and protection

Delivery Time: 7 to 10 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 100000PCS per month

Solder Material: SPCC with Sn Plated finish for reliable connections

Operating Temperature Range: -40°C to +85°C ensuring performance in various environments

Contact Plating: Gold Plated contacts for enhanced conductivity and durability

Application: Ideal for Wireless Modules and Embedded Systems

Product Name: MINI PCI-E Connector

Our Mini PCIe Card Connector is designed to provide a secure and reliable interface for Mini PCIe Expansion Slot applications. This Mini PCIe Card Connector supports high-speed data transmission and is suitable for various embedded system projects and wireless communication modules. With ISO-9001:2000 certification and a strong supply ability, LP ensures quality and timely delivery to meet your production needs.
