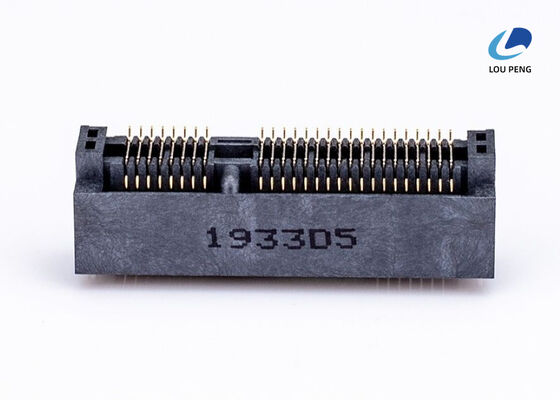

Insulation resistance 500 Meqohms At 50OV DC Min Mini PCI Express Connector 52pin optimized for embedded networking and IoT communication modules

Product Description:

The MINI PCIE Connector is a high-quality, reliable component designed to meet the demanding requirements of modern electronic devices that utilize Mini PCI Express technology. This connector is engineered to provide exceptional performance and durability, making it an ideal choice for applications requiring a robust Mini PCI-E Connector Slot. Whether you are designing a compact computing device, embedded system, or communication equipment, this connector offers the perfect interface solution with its precise engineering and excellent electrical characteristics.

One of the standout features of this MINI PCIE Connector is its gold-plated contact plating. The gold plating ensures superior conductivity and corrosion resistance, which is critical for maintaining a stable and low-resistance electrical connection over time. This plating significantly reduces the risk of oxidation and wear, thereby enhancing the longevity and reliability of the connector in various environmental conditions. Users can expect consistent signal integrity and minimal contact degradation, which is particularly important for high-speed data transfer applications facilitated by the Mini PCIe Socket Connector.

The connector boasts a pitch of 0.8mm, making it perfectly suited for compact device designs where space-saving is essential. This fine pitch contributes to the connector’s ability to accommodate a high number of pins in a small footprint, which is advantageous for dense circuit layouts. With a pin count of 52 pins, the MINI PCIE Connector provides ample connectivity options for a wide range of Mini PCI Express devices, ensuring compatibility and flexibility in design. This pin count supports multiple signal lines, power supply connections, and ground paths, allowing for reliable and efficient communication between the host system and the Mini PCI Express module.

In terms of electrical performance, the connector features an impressive contact resistance rating of 55 milliohms max (initial). This low contact resistance is crucial for minimizing signal loss and power dissipation, thus supporting high-speed data transmission with minimal interference. Additionally, the connector exhibits excellent insulation resistance, rated at 500 megaohms at 500V DC minimum. This high insulation resistance ensures that the connector maintains electrical isolation between pins, preventing leakage currents and enhancing the overall safety and stability of the electronic system.

The MINI PCIE Connector is specifically designed to serve as a reliable Mini PCI Express Socket in a variety of electronic applications. Its robust construction and precise dimensions guarantee a secure and stable mating with Mini PCI Express modules, reducing the risk of disconnections or signal interruptions. This makes it a preferred choice for manufacturers and engineers who demand high reliability and performance from their Mini PCIe Socket Connector components.

Moreover, the connector’s design facilitates easy assembly and maintenance, contributing to reduced production time and cost. Its compatibility with industry-standard Mini PCI Express modules ensures seamless integration into existing designs, allowing for straightforward upgrades or replacements. Whether used in laptops, industrial computers, networking devices, or other embedded systems, this connector supports the efficient operation of Mini PCI-E devices.

In summary, the MINI PCIE Connector stands out as a premium-quality Mini PCI Express Socket solution, combining gold-plated contacts, a compact 0.8mm pitch, a substantial 52-pin count, low contact resistance, and high insulation resistance. These attributes collectively ensure that the connector delivers reliable electrical performance, durability, and compatibility for a wide range of Mini PCI-E Connector Slot applications. Choosing this connector means investing in a component that supports high-speed data communication, robust mechanical stability, and long-term operational reliability, making it an excellent addition to any Mini PCIe Socket Connector project.

Features:

• Product Name: MINI PCIE Connector
• Also known as Mini PCI Express Socket and Mini PCI Express Slot
• Insertion Force: 2.3kgf Max
• Application: Ideal for Wireless Modules and Embedded Systems
• Pitch: 0.8mm for precise and reliable connections
• Housing Material: High Temperature Thermoplastic UL94V-0 rated for safety
• Durability: Supports up to 500 cycles of insert and withdraw

Technical Parameters:

Applications:

The LP-MP009 MINI PCI-E Connector, manufactured by LP in China and certified with ISO-9001:2000, is a reliable and high-quality component designed for various electronic applications. This MINI PCI-E Connector is specifically engineered to fit Mini PCIe Interface Slots and Mini PCI Express Slots, making it an essential part of modern computing devices and embedded systems. Its robust design, featuring a housing made from high temperature thermoplastic UL94V-0 and contacts crafted from copper alloy with gold plating over nickel on contact area and tin plating on terminals, ensures durability and excellent electrical performance.

This product is widely used in scenarios where compact and efficient connectivity is paramount. For instance, in industrial automation equipment, the MINI PCI-E Connector slot provides a stable interface for wireless communication modules and expansion cards. In telecommunications, it enables seamless integration of Mini PCIe cards within routers, gateways, and other network devices, ensuring high-speed data transmission and reliable network connectivity.

The MINI PCI-E Connector slot is also prevalent in consumer electronics such as laptops, tablets, and embedded systems, where space-saving design and high performance are critical. It allows users to install various Mini PCI Express cards, including Wi-Fi modules, SSDs, and other peripheral devices, enhancing the device’s functionality without compromising its compact form factor.

Additionally, the LP-MP009 connector is suitable for automotive electronics, medical devices, and IoT applications, where stable and secure Mini PCIe Interface Slot connections are essential to maintain system reliability under varying environmental conditions. With a dielectric withstanding voltage of 300V AC RMS (minimum), this connector ensures safe operation even in demanding electrical environments.

Supplied in reels with a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, the LP-MP009 MINI PCI-E Connector is ideal for mass production and large-scale deployment. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, it meets the fast-paced demands of manufacturing and supply chains. Payment terms include T/T, Western Union, and L/C, providing flexible options for global customers.

Customization:

Brand Name: LP

Model Number: LP-MP009

Place of Origin: China

Certification: ISO-9001:2000

Minimum Order Quantity: 1000PCS

Price: $0.03 per unit

Packaging Details: Reel packaging to ensure safe delivery and easy handling.

Delivery Time: 7 to 10 days from order confirmation.

Payment Terms: Acceptable payment methods include T/T, Western Union, and L/C.

Supply Ability: Capable of supplying up to 100,000PCS to meet large order demands.

Connector Type: Mini PCI Express, suitable for Mini PCI Express Slot applications.

Insulation Resistance: 500 Megohms at 50V DC minimum, ensuring reliable electrical performance.

Housing Material: High Temperature Thermoplastic UL94V-0, providing durability and safety.

Product Name: MINI PCI-E Connector, designed as a Mini PCIe Card Connector and Mini PCI Express Socket.

Pin Count: 52 pins to support stable and efficient connectivity.

Our MINI PCI-E Connector LP-MP009 is ideal for integration with Mini PCI Express Slots, offering excellent compatibility as a Mini PCIe Card Connector and Mini PCI Express Socket. It meets stringent quality standards with ISO-9001:2000 certification and is manufactured in China with high-quality materials.

Support and Services:

Our MINI PCIE Connector product is designed to provide reliable and high-performance connectivity solutions for a wide range of applications. For technical support, we offer comprehensive assistance to help you integrate and optimize the use of our connectors in your systems.

Our technical support team is equipped to assist with installation guidance, compatibility inquiries, and troubleshooting to ensure seamless operation. We provide detailed documentation, including datasheets, application notes, and design guidelines to help you make the most of our products.

In addition to technical support, we offer customized services such as connector configuration, testing, and validation to meet your specific project requirements. Our goal is to deliver solutions that enhance your product’s performance and reliability.

For any product-related questions or service requests, please refer to the available resources or reach out through official support channels. We are committed to providing timely and effective support to ensure your satisfaction with our MINI PCIE Connector products.

Packing and Shipping:

Each MINI PCIE Connector is carefully packaged to ensure safe delivery. The product is placed in an anti-static bag to protect against electrostatic discharge, then securely cushioned with foam or bubble wrap inside a sturdy cardboard box. This packaging method prevents any physical damage during transit.

For shipping, we use reliable courier services that provide tracking information and estimated delivery times. Orders are processed promptly and dispatched within 1-2 business days. International shipping options are available with appropriate customs documentation to ensure smooth delivery worldwide.

We recommend inspecting the package upon receipt and contacting our customer service immediately if there are any issues with the product or packaging. Your satisfaction is our priority, and we strive to deliver your MINI PCIE Connector safely and efficiently.
