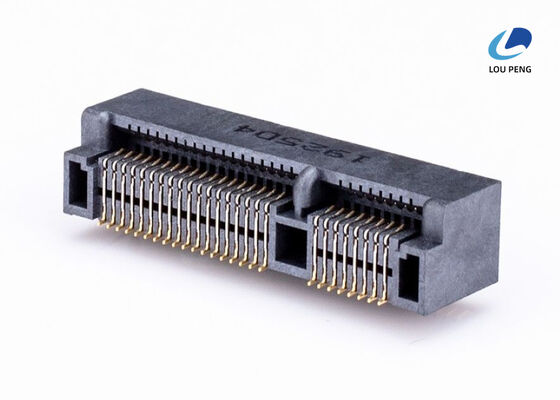

Gold Plated MINI PCIE Connector Black Including Locking Mechanism Supporting High Speed Data and Signal Transmission

Product Description:

The MINI PCIE Connector is a high-quality, reliable component designed specifically for Mini PCI Express applications. Engineered to meet the demanding requirements of modern electronic devices, this connector ensures optimal performance and durability in various Mini PCIe interface slot configurations. Whether you are designing a compact embedded system, a high-speed communication device, or a cutting-edge computing platform, this Mini PCIe socket connector offers the precision and robustness you need for seamless connectivity.

One of the standout features of this Mini PCI Express Connector is its exceptional insulation resistance. With a minimum insulation resistance of 500 Megaohms at 500V DC, the connector guarantees excellent electrical isolation, reducing the risk of short circuits and ensuring signal integrity. This high insulation resistance is crucial for maintaining stable and reliable connections in environments with fluctuating voltages or electrical noise, thereby enhancing the overall system performance and safety.

The mechanical specifications of the MINI PCIE Connector are equally impressive. It boasts a maximum insertion force of 2.3 kgf and a maximum withdrawal force of 2.3 kgf, which means that the connector provides a secure and firm connection without requiring excessive effort during installation or removal. This balance between ease of use and secure attachment is vital for applications where frequent maintenance or component swapping is necessary, ensuring longevity and reducing wear on both the connector and the Mini PCIe interface slot.

Constructed using a high-quality copper alloy, the contacts of this Mini PCIe socket connector are designed for superior electrical conductivity and corrosion resistance. The contacts feature gold plating over nickel on the contact area, which significantly enhances durability and ensures low contact resistance over time. Additionally, the terminals are tin-plated, providing excellent solderability and further protection against environmental factors. This combination of materials and plating techniques guarantees that the connector maintains its electrical performance and mechanical stability even under rigorous operating conditions.

A key advantage of this MINI PCIE Connector is its integrated locking mechanism. This feature ensures that once the Mini PCIe card is inserted into the Mini PCIe interface slot, it remains securely locked in place, preventing accidental disconnections due to vibrations or mechanical shocks. The locking mechanism enhances the reliability of the connection, making it ideal for use in mobile devices, industrial equipment, and other applications where stability and secure attachment are paramount.

Designed with precision and reliability in mind, this Mini PCI Express Connector is fully compatible with standard Mini PCIe interface slots, making it an excellent choice for designers and engineers seeking to build or upgrade systems with Mini PCIe connectivity. Whether used in compact laptops, embedded systems, or networking devices, this Mini PCIe socket connector provides a dependable interface that supports high-speed data transfer and stable electrical connections.

In summary, the MINI PCIE Connector combines exceptional insulation resistance, optimal mechanical forces, premium contact materials, and a secure locking mechanism to deliver outstanding performance in Mini PCI Express applications. Its robust design and high-quality construction make it a trusted solution for ensuring reliable connectivity in a wide range of electronic devices. If you require a Mini PCI Express Connector that meets stringent electrical and mechanical standards while providing secure, stable connections, this product is an ideal choice for your Mini PCIe interface slot needs.

Features:

• Product Name: MINI PCIE Connector
• Also known as Mini PCI-E Connector
• Contact Material: Copper Alloy for excellent conductivity
• Mounting Type: Surface Mount for easy PCB integration
• Durability: Supports Insert & Withdraw up to 500 Cycles
• Includes Locking Mechanism for secure card retention
• Compatible with Mini PCI-E Connector Slot applications
• Ideal for use as a Mini PCIe Card Slot in various devices
• Reliable performance in Mini PCI-E Connector Slot configurations

Technical Parameters:

Applications:

The LP brand Mini PCIe Card Connector, model number LP-MP010, is a high-quality component designed and manufactured in China, certified under ISO-9001:2000 standards. This connector, featuring a reliable locking mechanism and made from durable copper alloy contacts with SPCC, Sn plated solder, is ideal for various application occasions and scenarios, particularly in wireless modules and embedded systems. Its compact design and robust construction ensure stable electrical connections with a current rating of 0.5 AMP per contact, making it a dependable choice for Mini PCI Express Slot implementations.

One of the primary application occasions for the LP-MP010 Mini PCIe Card Connector is in wireless communication devices. Wireless modules that require miniaturized, secure, and efficient connections benefit greatly from this connector’s locking mechanism, which prevents accidental disconnection during operation or transport. This makes it suitable for use in laptops, tablets, routers, and IoT devices where Mini PCI Express Slots are standard interfaces for wireless cards and expansion modules.

Embedded systems also represent a significant scenario where the LP-MP010 excels. In industrial automation, medical equipment, and automotive electronics, the Mini PCIe Card Connector facilitates compact and reliable socket connections for embedded computing modules. The connector’s precision manufacturing and durable materials ensure consistent performance in environments that demand high reliability and long-term stability. Additionally, the reel packaging allows efficient handling and automated assembly processes in manufacturing settings.

With a minimum order quantity of 1000PCS and competitive pricing at $0.03 per unit, the LP-MP010 is highly suitable for large-scale production needs. Its supply ability of 100,000PCS and delivery time of 7 to 10 days ensure a steady supply chain for manufacturers integrating Mini PCI Express Slots into their designs. Payment terms including T/T, Western Union, and L/C provide flexibility for global customers.

In summary, the LP-MP010 Mini PCIe Card Connector is an excellent choice for applications requiring Mini PCI Express Slot connections, especially in wireless communication and embedded system scenarios. Its certified quality, secure locking mechanism, and reliable electrical performance make it a trusted component for enhancing connectivity and device functionality across a wide range of industries.

Customization:

Introducing the LP brand MINI PCIE Connector, model number LP-MP010, proudly made in China and certified with ISO-9001:2000 quality standards. This Mini PCIe Module Connector is designed for high performance and reliability, featuring a surface mount mounting type and durable construction with a housing made from high temperature thermoplastic UL94V-0.

The Mini PCIe Card Slot supports up to 500 mating cycles, ensuring long-lasting use in wireless modules and embedded systems. Its contact material is made from premium copper alloy, providing excellent conductivity and durability. The connector is packaged in reels for efficient handling and shipping.

With a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, the LP-MP010 Mini PCIe Socket Connector is ideal for large-scale production. We guarantee a supply ability of 100,000PCS and a delivery time of 7 to 10 days. Payment terms include T/T, Western Union, and L/C to accommodate your purchasing preferences.

Choose the LP MINI PCIE Connector for your next project to ensure quality, reliability, and cost-effectiveness in your wireless modules and embedded system applications.
