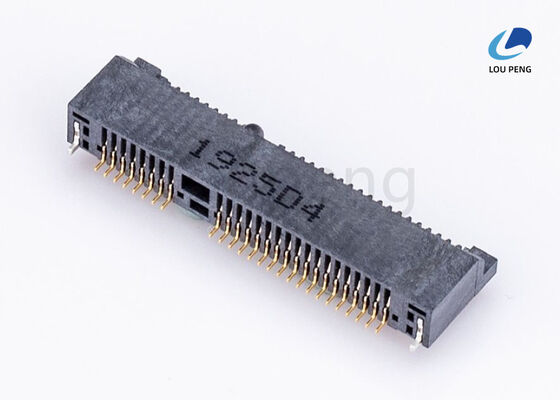

Gold Plated MINI PCIE Connector 52pin Insert Withdraw 500 Cycles Connector for High Stability Electronic Applications

Product Description:

The MINI PCIE Connector is a high-performance component designed to provide reliable and efficient connections for Mini PCIe Interface Slot applications. This connector is essential for devices requiring a robust Mini PCI Express Connector to ensure seamless data transmission and power delivery. Engineered with precision, the MINI PCIE Connector supports various Mini PCIe Card Slot implementations, making it an ideal choice for compact computing systems, embedded devices, and communication equipment.

One of the standout features of this connector is its excellent insulation resistance, rated at 500 Megohms minimum at 500V DC. This high level of insulation ensures that the connector can withstand electrical stress and prevent leakage currents, thereby enhancing the safety and stability of the overall electronic system. Whether used in industrial environments or consumer electronics, this insulation resistance guarantees reliable operation even under demanding conditions.

Operating within a broad temperature range of -40°C to +85°C, the MINI PCIE Connector is well-suited for applications exposed to harsh environmental conditions. This wide operating temperature range ensures that the connector maintains its mechanical and electrical performance in extreme cold or heat, making it suitable for automotive, aerospace, and outdoor equipment where temperature fluctuations are common. The ability to perform reliably in such diverse climates extends the lifespan and dependability of the Mini PCIe Interface Slot components.

The solder used in the manufacturing of this connector is made from SPCC (cold-rolled carbon steel) with a tin plating finish. This combination not only provides excellent mechanical strength but also enhances the solderability of the connector, ensuring a strong and stable bond when mounted onto printed circuit boards. The Sn plating offers corrosion resistance, which is crucial for maintaining long-term electrical connections and preventing oxidation-related failures.

The housing material of the MINI PCIE Connector is crafted from high-temperature thermoplastic. This specialized material offers superior resistance to heat, chemicals, and mechanical wear, which is vital for maintaining the integrity of the Mini PCI Express Connector during assembly and operation. The thermoplastic housing also contributes to the connector’s durability and ability to withstand repeated insertion and removal cycles commonly encountered in Mini PCIe Card Slot applications.

In terms of electrical performance, the connector boasts a maximum contact resistance of 55 milliohms (initial). Low contact resistance is critical for minimizing voltage drops and power loss across the connection, ensuring efficient signal transmission and power delivery. This characteristic is especially important for Mini PCIe Interface Slots that handle high-speed data transfer, as it helps maintain signal integrity and overall system performance.

The MINI PCIE Connector’s design and material selection reflect a commitment to quality and reliability, making it an indispensable component for modern electronic systems that utilize Mini PCI Express Connectors. Its compatibility with standard Mini PCIe Card Slots allows for easy integration into existing designs, facilitating upgrades and maintenance without compromising performance.

In summary, the MINI PCIE Connector offers exceptional insulation resistance, wide operating temperature tolerance, durable solder and housing materials, and low contact resistance. These attributes combine to deliver a robust and dependable connection solution that meets the stringent requirements of Mini PCIe Interface Slot applications. Whether deployed in consumer electronics, industrial machinery, or telecommunication devices, this connector ensures stable and efficient operation, supporting the evolving needs of high-speed, compact computing platforms.

Features:

• Product Name: MINI PCIE Connector
• Type: Mini PCIe Module Connector, Mini PCI Express Socket, Mini PCI Express Connector
• With locking mechanism: Yes
• Voltage rating: 50V AC Per Contact
• Color: Black
• Contact plating: Gold Plated
• Contact material: Copper Alloy

Technical Parameters:

Applications:

The LP brand, with its model number LP-MP008, introduces a high-quality MINI PCIE Connector designed to meet the demanding needs of modern electronic devices. Manufactured in China and certified under ISO-9001:2000, this connector combines reliability and precision, making it an ideal choice for various applications. Featuring a pitch of 0.8mm and gold-plated contacts, the LP-MP008 ensures excellent conductivity and durability, with the capability of enduring up to 500 insert and withdraw cycles. This makes it particularly suitable for frequent use in devices requiring robust connectivity.

The MINI PCIE Connector is widely used in scenarios involving Mini PCI-E Connector Slots, Mini PCIe Socket Connectors, and Mini PCIe Expansion Slots. These connectors serve as critical interfaces for connecting wireless cards, SSDs, Bluetooth modules, and other expansion cards in laptops, desktops, industrial computers, and embedded systems. Their small footprint and reliable contact design allow for efficient signal transmission and mechanical stability, which is essential in compact and high-performance computing environments.

In addition to consumer electronics, the LP-MP008 connector is also applicable in industrial and medical equipment where dependable data and power connections are vital. Its gold-plated copper alloy contacts minimize contact resistance (with a maximum initial contact resistance of 55 milliohms), ensuring signal integrity and reducing the risk of connection failures. The connector’s packaging in reels facilitates automated assembly processes, supporting large-scale manufacturing with a minimum order quantity of 1000 pieces and a supply ability of up to 100,000 pieces.

With a competitive price of $0.03 per unit and a delivery time ranging between 7 to 10 days, the LP-MP008 MINI PCIE Connector is an excellent choice for OEMs and electronics manufacturers looking to optimize cost without compromising quality. Payment terms such as T/T, Western Union, and L/C provide flexible options to accommodate various buyer preferences. Overall, this connector is perfectly suited for any application requiring a reliable Mini PCIe Expansion Slot interface in a compact and durable form factor.

Customization:

Introducing the LP brand MINI PCIE Connector, model number LP-MP008, proudly made in China and certified with ISO-9001:2000. This Mini PCIe Card Slot is designed for reliable performance with an insertion force of 2.3kgf max and a contact resistance of 55 milliohms max (initial), ensuring secure connections for your Mini PCIe Module Connector needs.

The Mini PCI Express Slot supports an operating temperature range from -40°C to +85°C and a voltage rating of 50V AC per contact, making it suitable for various demanding applications. The contacts are crafted from copper alloy with gold plating over nickel on contact areas and tin plating on the terminals, providing excellent conductivity and durability.

We offer a minimum order quantity of 1000PCS, with a competitive price of $0.03 per piece. Packaging is done in reels for efficient handling and shipping. Delivery time is estimated between 7 to 10 days, backed by a supply ability of 100000PCS to meet large-scale requirements.

Payment terms include T/T, Western Union, and L/C for your convenience. Choose the LP MINI PCIE Connector for your Mini PCIe Card Slot, Mini PCIe Module Connector, and Mini PCI Express Slot applications to ensure quality and reliability.
