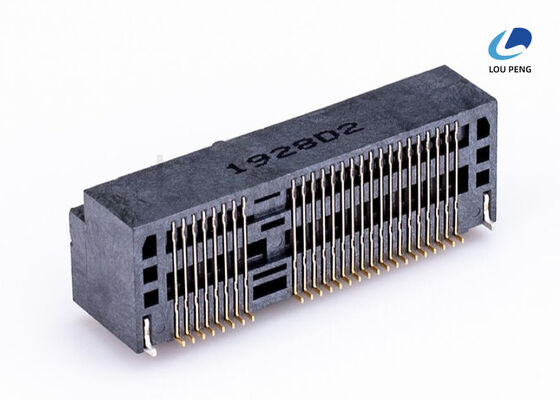

High Temperature Thermoplastic UL94V-0 Mini PCI-E Connector 52pin Mini PCI Express Connector Type Signal Transmission

Product Description:

The MINI PCI-E Connector is a highly reliable and efficient solution designed specifically for connecting Mini PCIe modules in a variety of electronic devices. This connector serves as an essential interface, providing a secure and stable connection between the Mini PCIe card and the host device, ensuring optimal performance and durability. Known for its robust construction and precision engineering, the MINI PCI-E Connector is widely used in applications such as laptops, embedded systems, industrial computers, and other compact electronic devices that require a reliable Mini PCI-E Connector Slot.

One of the standout features of this Mini PCIe Module Connector is its housing, made from high temperature thermoplastic material rated at UL94V-0. This certification indicates that the housing is flame-retardant and capable of withstanding high temperatures without deforming or losing structural integrity. The use of high temperature thermoplastic not only enhances safety but also ensures the connector maintains its performance under demanding environmental conditions, making it suitable for industrial and commercial applications where heat resistance is critical.

The MINI PCI-E Connector is designed with a surface mount mounting type, which allows for easy and secure installation onto printed circuit boards (PCBs). Surface mount technology (SMT) is favored for its efficiency in automated assembly processes and its ability to create compact, lightweight designs. This mounting type contributes to the overall reliability of the Mini PCIe Card Connector by ensuring a firm attachment to the PCB, minimizing the risk of connection failures due to mechanical stress or vibrations.

Insertion force is a crucial specification for connectors, as it affects both the ease of use and the longevity of the connector itself. The MINI PCI-E Connector boasts an insertion force of 2.3 kgf max, which strikes a balance between providing a secure connection and allowing for smooth insertion and removal of Mini PCIe cards. This characteristic is particularly beneficial in scenarios where frequent module swapping or maintenance is required, as it reduces wear and tear on both the connector and the card.

As a Mini PCIe Card Connector, this product is engineered to meet stringent quality standards, ensuring excellent electrical performance and signal integrity. The connector supports high-speed data transfer rates, which are essential for modern wireless communication, storage, and multimedia applications that utilize Mini PCIe modules. Its design accommodates various Mini PCIe card sizes and configurations, making it a versatile choice for manufacturers and developers working with different device specifications.

In summary, the MINI PCI-E Connector combines superior materials, precise engineering, and user-friendly design to offer a dependable connection solution for Mini PCIe modules. Its high temperature thermoplastic housing with UL94V-0 rating ensures safety and durability, while the surface mount mounting type facilitates efficient and secure PCB integration. The manageable insertion force of 2.3 kgf max enhances usability and longevity, making it an ideal Mini PCIe Connector Slot component for a wide range of electronic devices. Whether you are designing a new industrial computer, upgrading a laptop, or developing embedded systems, this Mini PCIe Module Connector provides the reliability and performance needed to support advanced connectivity requirements.

Features:

• Product Name: MINI PCI-E Connector
• Suitable for Mini PCI Express Slot and Mini PCI Express Socket applications
• Compatible with Mini PCIe Card Connector standards
• Insulation Resistance: 500 MΩ minimum at 500V DC
• Housing Material: High Temperature Thermoplastic, UL94V-0 rated
• Operating Temperature Range: -40°C to +85°C
• Maximum Insertion Force: 2.3 kgf
• Contact Material: Copper Alloy with Gold Plating over Nickel on contact area
• Terminal Plating: Tin plating on terminal for reliable connections

Technical Parameters:

Applications:

The LP brand LP-MP006 Mini PCI-e Connector, originating from China and certified with ISO-9001:2000, is an ideal component designed for various electronic applications requiring Mini PCIe Card Slot functionality. Its robust construction featuring high temperature thermoplastic housing rated at UL94V-0 ensures excellent durability and safety in demanding environments. With a voltage rating of 50V AC per contact and insulation resistance reaching 500 Megaohms at 50V DC minimum, this Mini PCI Express Connector guarantees reliable electrical performance for diverse devices.

This Mini PCI Express Socket is perfectly suited for integration into compact computing devices, including industrial PCs, embedded systems, and networking equipment. The LP-MP006 model supports high-density connections while maintaining a low insertion force of 2.3kgf max, facilitating easy installation and replacement of Mini PCI Express cards. Its SPCC solder with Sn plating enhances solderability and long-term connection stability, which is crucial in scenarios where consistent performance is mandatory.

In manufacturing and assembly lines, the LP-MP006 Mini PCI Express Connector is often utilized to provide reliable slot connections for Wi-Fi modules, solid-state drives, and cellular communication cards. Its packaging in reels supports efficient automated assembly, making it suitable for high-volume production environments. With a supply ability of 100,000 pieces and a minimum order quantity of 1000 PCS, manufacturers can ensure steady procurement to meet large-scale production demands.

The product’s competitive price of $0.03 per unit and delivery time of 7 to 10 days, combined with flexible payment terms including T/T, Western Union, and L/C, make it an attractive choice for companies seeking cost-effective and timely solutions. Whether used in laptops, IoT gateways, or embedded computing modules, this Mini PCI Express Socket offers dependable performance and ease of integration, enhancing the overall functionality and connectivity of electronic devices.

Overall, the LP-MP006 Mini PCI-e Connector stands out as a versatile and reliable component for a wide range of applications that require secure and efficient Mini PCIe Card Slot interfaces. Its certification, quality materials, and design specifications ensure it meets the rigorous demands of modern electronic hardware development and manufacturing.

Customization:

Introducing the LP brand MINI PCI-E Connector, model number LP-MP006, proudly made in China and certified with ISO-9001:2000 standards. This product is designed to meet the highest quality requirements for Mini PCIe Expansion Slot applications.

Our Mini PCIe Interface Slot connector features a robust housing material made from high temperature thermoplastic, ensuring durability and reliable performance. With an insulation resistance of 500 MΩ at 50V DC minimum and a dielectric withstanding voltage of 300V AC RMS minimum, this connector guarantees safety and stability in your electronic designs.

The current rating of 0.5 AMP per contact and solder made of SPCC with Sn plating make the Mini PCIe Socket Connector ideal for various demanding applications. We offer this product in reels, facilitating easy and efficient packaging and handling.

With a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, LP ensures fast delivery within 7 to 10 days. Our supply ability reaches up to 100,000PCS, supporting large-scale production needs. Payment terms include T/T, Western Union, and L/C for your convenience.

Choose LP’s MINI PCI-E Connector for your Mini PCIe Expansion Slot, Mini PCIe Interface Slot, and Mini PCIe Socket Connector needs, and experience quality, reliability, and excellent service.
