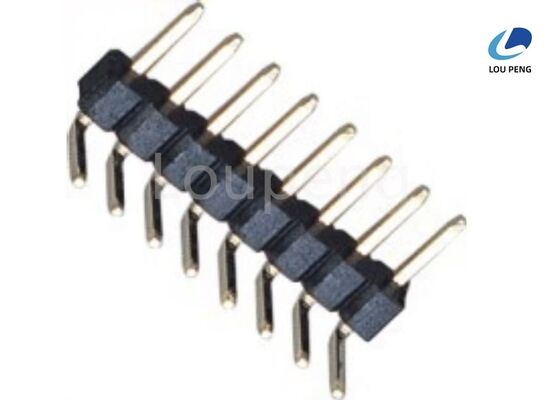

5000 Megaohms Min Insulation Resistance Pin Header Connector 2 To 40 Pins Compatible With Multiple Electronic Components

Product Description:

The PIN Header Connector is an essential component widely used in electronic devices and circuit boards to establish reliable electrical connections. Designed with precision and durability in mind, this connector series includes various configurations such as Straight Pin Header Connector, Female Pin Header Connector, and Right Angle Pin Header, catering to diverse application needs. Manufactured using high-quality materials, these connectors ensure excellent performance and long-lasting service life in demanding environments.

One of the standout features of this PIN Header Connector is its contact material. The contacts are made from premium copper alloys, which provide superior electrical conductivity and mechanical strength. Copper alloys are well-known for their excellent corrosion resistance and ability to maintain a stable connection over time, making them ideal for use in electronic connectors. This ensures minimal signal loss and reliable data transmission, which is crucial for the optimal functioning of electronic circuits.

To further enhance the performance and durability of the PIN Header Connector, the contacts are plated with high-quality metals such as gold, tin, or nickel. Gold plating is often used for its outstanding corrosion resistance and excellent conductivity, which guarantees a low contact resistance and prevents oxidation over extended periods of use. Tin plating offers good solderability and cost-effectiveness, making it suitable for various general-purpose applications. Nickel plating, on the other hand, provides a robust protective layer that improves wear resistance and mechanical stability. The availability of these plating options allows users to select the most appropriate finish based on their specific requirements and operating conditions.

Safety and reliability are paramount in electronic connectors, and this PIN Header Connector meets rigorous standards to ensure secure operation under electrical stress. The connector boasts a dielectric withstanding voltage of AC 500V, which means it can safely withstand high voltage without breakdown or insulation failure. This high dielectric strength protects the electronic components from electrical surges and prevents short circuits, ensuring the longevity and safety of the interconnected devices.

Another critical mechanical attribute of this connector is its retention force. With a minimum retention force of 700 grams, the PIN Header Connector guarantees a firm and secure connection between the mating parts. This strong retention force prevents accidental disconnections caused by vibrations, shocks, or mechanical disturbances, which are common in industrial and automotive applications. Users can rely on these connectors to maintain stable connections even in harsh operational environments.

Durability is a key consideration when selecting connectors for electronic assemblies, and this PIN Header Connector excels in this aspect as well. It is designed to withstand at least 100 mating cycles, ensuring that it can be connected and disconnected multiple times without degradation in performance or mechanical integrity. This makes it suitable for applications that demand frequent maintenance, testing, or reconfiguration, providing flexibility and cost savings over the product’s lifecycle.

The range of configurations available, including the Straight Pin Header Connector, Female Pin Header Connector, and Right Angle Pin Header, allows engineers and designers to implement versatile connection solutions. The Straight Pin Header Connector is ideal for vertical board-to-board connections, while the Female Pin Header Connector provides a socket-style interface for easy plug-in connections. The Right Angle Pin Header is especially useful in applications where space constraints require horizontal connections, optimizing the layout and improving overall design efficiency.

In summary, the PIN Header Connector series offers a robust and versatile solution for establishing secure and reliable electrical connections in a wide range of electronic applications. Its construction with copper alloy contacts, high-quality plating options, excellent dielectric withstand voltage, strong retention force, and impressive durability make it an exceptional choice for engineers seeking dependable connector solutions. Whether you need a Straight Pin Header Connector, Female Pin Header Connector, or Right Angle Pin Header, this product line delivers consistent performance, longevity, and ease of use, ensuring your electronic systems operate smoothly and efficiently.

Features:

• Product Name: PIN Header Connector
• Number of Pins: 2 To 40 Pins
• Plastics Height Options: 1.0mm, 1.5mm, 2.0mm, 2.5mm, 2.54mm
• Retention Force: 700g Minimum
• Current Rating: 1.0AMP or 3.0AMP
• Contact Material: Copper Alloys
• Straight Pin Header Connector design for easy PCB mounting
• Available as Dual Row Pin Header for compact and efficient connections
• Male Pin Header Connector type for versatile interfacing

Technical Parameters:

Applications:

The LP brand’s PIN Header Connector, model number LP-P078, originating from China, is a highly reliable and versatile component designed to meet the demanding needs of modern electronic applications. Certified under ISO-9001:2000, this product guarantees consistent quality and performance. With a minimum order quantity of 1000PCS and an attractive price of 0.0001 per unit, it is an excellent choice for manufacturers and developers requiring bulk quantities. The LP-P078 PIN Header Connector is packaged in various forms including Reel, Tube, Tray, and Polybag, ensuring convenience and protection during transportation and storage. Delivery is prompt, typically within 7 to 10 days, supported by flexible payment terms such as T/T, Western Union, and L/C, making procurement straightforward and efficient.

This PIN Header Connector is ideal for a wide range of application occasions and scenarios. Its Surface Mount Pin Header design allows for easy and secure attachment to printed circuit boards (PCBs), ensuring reliable electrical connections in compact and high-density electronic assemblies. The PCB Mount Pin Header is suitable for use in consumer electronics, industrial equipment, communication devices, and automotive electronics, where durability and performance are critical. Thanks to its high insulation resistance of 1000M Ohms minimum and dielectric strength of 1000 V AC minimum, it provides excellent electrical isolation, making it suitable for both low and high voltage applications.

The LP-P078 supports current ratings of 1.0AMP or 3.0AMP, accommodating various power requirements across different circuits. Its plating options, including Gold, Tin, and Nickel, enhance corrosion resistance and conductivity, ensuring long-lasting and stable connections even under harsh environmental conditions. The connector can withstand processing temperatures up to 260℃ for 10 seconds, making it compatible with standard soldering processes in automated manufacturing lines.

Typical scenarios for the use of the Pin Header Connector include assembly lines for electronic devices, prototyping in research and development labs, and repair or upgrade of existing equipment. It is especially beneficial in applications requiring frequent mating and unmating of connectors due to its robust mechanical design. Whether used in compact wearable devices, complex industrial control systems, or communication infrastructure, the LP-P078 Surface Mount Pin Header and PCB Mount Pin Header provide dependable performance, ease of installation, and excellent electrical characteristics.

With a supply ability of 1,000,000PCS, the LP-P078 Pin Header Connector is well-suited to meet large-scale production demands, ensuring manufacturers can maintain uninterrupted production schedules. Its combination of quality, affordability, and versatility makes it a preferred choice for engineers and designers seeking dependable connector solutions for their electronic projects and products.

Customization:

Introducing the LP-P078 Pin Header Connector, a high-quality product manufactured by LP in China, certified under ISO-9001:2000 standards. This Dual Row Pin Header is designed to meet diverse electronic connectivity needs with exceptional performance and reliability.

Our Pin Header Connector offers a variety of pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, allowing seamless integration into various circuit designs. With an insulation resistance of 5000 megaohms minimum and operation temperature range from -65°C to +125°C, this connector ensures durability and stable performance under harsh conditions.

The Female Pin Header Connector variant comes with plating options such as Gold, Tin, and Nickel to enhance conductivity and corrosion resistance. Each unit is carefully packaged in Reel, Tube, Tray, or Polybag formats, accommodating your specific packaging preferences.

Our supply ability reaches up to 1,000,000 PCS with a minimum order quantity of 1000 PCS, priced competitively at 0.0001 per piece. We ensure prompt delivery within 7 to 10 days, supported by flexible payment terms including T/T, Western Union, and L/C.

Choose the LP-P078 Dual Row Pin Header for reliable connections in your electronic projects, backed by LP's commitment to quality and customer satisfaction.

Support and Services:

Our PIN Header Connector product is supported by a dedicated technical team to ensure seamless integration and optimal performance in your applications. We provide comprehensive technical assistance, including product selection guidance, installation instructions, and troubleshooting support to address any issues you may encounter.

Our services include detailed product documentation, application notes, and CAD files to assist in your design process. We also offer customization options to meet specific requirements, ensuring that the PIN Header Connector fits perfectly within your system architecture.

For any technical inquiries or support needs, our experts are ready to help you maximize the efficiency and reliability of your connections. We are committed to delivering high-quality support and services to enhance your experience with our PIN Header Connector products.

Packing and Shipping:

Our PIN Header Connectors are securely packaged to ensure product integrity during transit. Each connector is carefully placed in anti-static bags to protect against electrostatic discharge, then packed in sturdy boxes with cushioning materials to prevent damage from shocks and vibrations.

For shipping, we offer multiple options including standard, expedited, and freight services to meet your delivery requirements. All shipments are tracked and insured to guarantee timely and safe delivery to your specified location.

We take great care in handling and shipping our PIN Header Connectors to ensure that you receive them in perfect condition, ready for immediate use in your electronic projects and assemblies.
