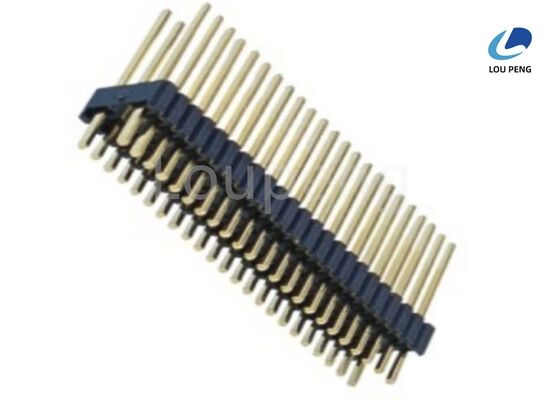

Operation Temperature Minus 65 Celsius To Plus 125 Celsius Dual Row Pin Header Phosphor Bronze Pin Material Ideal For Electronic Connections

Product Description:

The PIN Header Connector is a versatile and reliable component widely used in electronic assemblies for establishing secure electrical connections between printed circuit boards (PCBs) and other devices. Designed to accommodate a range of applications, this connector offers multiple options in plastics height, pin materials, current ratings, and pin counts, making it an ideal choice for engineers and manufacturers seeking flexibility and performance.

One of the key features of this PIN Header Connector is its availability in various plastics heights, including 1.0mm, 1.5mm, 2.0mm, 2.5mm, and the standard 2.54mm. This range of heights allows for compatibility with different PCB layouts and assembly requirements, ensuring a precise fit and optimal mechanical support. Whether the application demands a low-profile design or a taller connector for easier mating, these options provide the necessary adaptability.

The connector’s pins are crafted from high-quality materials such as phosphor bronze and brass, each selected for their excellent electrical conductivity and mechanical strength. Phosphor bronze pins offer superior spring properties and resistance to wear, making them ideal for repeated mating cycles, while brass pins provide strong structural integrity and reliable conductivity. This choice in pin material ensures that the connector maintains consistent performance and durability in various operating environments.

In terms of electrical performance, the PIN Header Connector supports current ratings of either 1.0 AMP or 3.0 AMP, catering to a wide spectrum of power requirements. This makes it suitable for both low-power signaling applications and higher current transmission tasks. Additionally, the connector boasts a contact resistance of 20 milliohms maximum, which guarantees minimal voltage drop and efficient electrical conduction, essential for maintaining signal integrity and reducing power loss in sensitive electronic circuits.

The PIN Header Connector comes with a flexible pin count range, supporting from 2 to 40 pins in a single row. This wide array of pin numbers enables it to meet the demands of simple connections as well as complex multi-line interfacing, providing versatility for various design needs. Whether it is used for data communication, power supply, or mixed signal applications, the connector’s configurable pin count enhances its usability across different projects.

Specifically designed as a Right Angle Pin Header, this connector is tailored for PCB mounting where space optimization and directional orientation are critical. The right angle configuration allows the connector to be mounted flush against the PCB surface while directing the connection perpendicular to the board, facilitating neat cable management and improved assembly compactness. This characteristic is particularly beneficial in compact electronic devices where board space is at a premium.

As a PCB Mount Pin Header, this connector integrates seamlessly with standard printed circuit boards, ensuring secure mechanical attachment and reliable electrical contact. The pin header’s design supports straightforward soldering processes, which enhances manufacturing efficiency and reduces assembly time. Its compatibility with industry-standard PCB layouts makes it a preferred choice for mass production and prototyping alike.

In summary, the PIN Header Connector combines robust materials, flexible design options, and dependable electrical performance to provide an essential component for electronic interconnections. With its multiple plastics heights, choice of phosphor bronze or brass pin materials, configurable current ratings, low contact resistance, and pin counts ranging from 2 to 40, it meets the diverse needs of modern electronic design. The Right Angle Pin Header configuration and PCB Mount Pin Header compatibility further enhance its practicality and ease of use in a variety of applications, making it a valuable addition to any electronics engineer’s toolkit.

Features:

• Product Name: PIN Header Connector
• Durability: 100 cycles
• Insulator Materials: LCP, Nylon, PA6T, PBT+30% Glass Fiber (UL94V-0)
• Available Types: Vertical, Right Angle, Surface Mount (SMT), Single Row, Double Row, Three Rows
• Current Rating Options: 1.0 AMP or 3.0 AMP
• Pitch Sizes: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Includes Single Row Pin Connector for versatile PCB applications
• Features Surface Mount Pin Header design for easy PCB assembly
• Reliable PCB Mount Pin Header ensuring secure electrical connections

Technical Parameters:

This Male Pin Header Connector is suitable as a Through Hole Pin Header and PCB Mount Pin Header, offering reliable electrical performance and versatile mounting options.

Applications:

The LP brand Male Pin Header Connector, model number LP-P076, is a highly reliable and versatile component designed for a wide range of electronic applications. Manufactured in China and certified by ISO-9001:2000, this connector guarantees high quality and consistent performance. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, it is an ideal choice for both small and large-scale production needs. The product is available in various packaging options including Reel, Tube, Tray, and Polybag, ensuring convenient handling and storage for different manufacturing processes.

One of the primary application occasions for the LP-P076 Male Pin Header Connector is in the assembly of printed circuit boards (PCBs) where reliable electrical connections are crucial. Its UL94V-0 fire protection grade ensures enhanced safety in electronic devices, making it suitable for use in consumer electronics, industrial machinery, and automotive electronics. The connector’s contact resistance of 20M Ohms max and retention force of 700g minimum provide stable electrical contact and mechanical strength, which are essential for maintaining performance in high-vibration environments and critical systems.

This Surface Mount Pin Header is particularly favored in scenarios where compact and efficient PCB design is required. It supports current ratings of 1.0AMP or 3.0AMP and boasts a dielectric strength of 1000 V AC minimum, making it suitable for both low and moderate power applications. The surface mount design facilitates automated assembly processes, reducing production time and costs. Its robust construction and precise specifications make it an excellent choice for telecommunications equipment, computer hardware, and IoT devices where space-saving and reliable interconnections are paramount.

Additionally, the LP-P076 Surface Mount Pin Header is widely used in prototyping and product development environments, where engineers and designers require dependable connectors that can withstand rigorous testing and frequent handling. Its availability with flexible payment terms such as T/T, Western Union, and L/C, combined with a supply ability of 1,000,000PCS and a delivery time of 7 to 10 days, ensures that manufacturers can maintain a steady inventory and meet tight production schedules without delays.

In summary, the LP Male Pin Header Connector LP-P076 is an essential component for various electronic applications, offering superior electrical performance, mechanical reliability, and flexible supply options. Its use spans from consumer electronics and industrial controls to automotive systems and communication devices, making it a versatile and trusted solution in the world of electronic connectors.

Customization:

Introducing the LP brand Right Angle Pin Header, model number LP-P076, a high-quality Male Pin Header Connector designed to meet diverse electronic assembly needs. Manufactured in China and certified under ISO-9001:2000, this product guarantees reliability and superior performance.

The LP-P076 features excellent Fire Protection Grade UL94V-0, ensuring safety and durability in various applications. With a contact resistance of 20 milliohms max, it provides consistent electrical connectivity. The insulator materials include LCP, Nylon, PA6T, and PBT+30% glass fiber, all compliant with UL94V-0 standards, while the contacts are made from premium copper alloys for optimal conductivity.

This Surface Mount Pin Header is available with flexible packaging options such as Reel, Tube, Tray, and Polybag to suit your production requirements. With a minimum order quantity of 1000PCS, a supply ability of 1,000,000PCS, and a competitive price of 0.0001 per unit, it is ideal for both small and large-scale manufacturing.

Enjoy fast delivery within 7 to 10 days and convenient payment terms including T/T, Western Union, and L/C. Choose the LP-P076 Right Angle Pin Header for your next project and experience exceptional quality and service.

Support and Services:

Our PIN Header Connector product is designed to provide reliable and efficient electrical connections in a wide range of applications. For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, and troubleshooting tips to ensure optimal performance.

We recommend reviewing the datasheet carefully to understand the electrical ratings, mechanical specifications, and compatibility with your system. If you encounter any issues during assembly or operation, our technical team is available to provide expert advice and solutions.

Additionally, we provide customization services to tailor the PIN Header Connector to your specific requirements, including variations in pin count, pitch, and plating options. Our quality assurance process guarantees that each connector meets industry standards for durability and conductivity.

For maintenance, it is advised to keep the connectors clean and inspect them regularly for signs of wear or damage. Proper handling and storage will extend the lifespan of the connectors and maintain reliable connections.

We are committed to supporting our customers throughout the lifecycle of the product, ensuring satisfaction and performance excellence in every application.

Packing and Shipping:

Product Packaging: The PIN Header Connector is securely packaged in anti-static bags to prevent any damage from electrostatic discharge during handling and transportation. Each pack contains a specified number of connectors, neatly arranged to avoid bending or misalignment of the pins. The packaging is labeled with product specifications, quantity, and batch number for easy identification and inventory management.

Shipping: Our PIN Header Connectors are shipped using reliable courier services with tracking options to ensure timely and safe delivery. We offer multiple shipping methods including standard, expedited, and overnight shipping to meet customer requirements. All shipments are carefully handled and cushioned to prevent any physical damage. International shipping is available with proper customs documentation to facilitate smooth clearance.
